Struggling with the high cost and long lead times of traditional metal molds just for a small batch of parts? This delay can put your project weeks behind schedule and drain your budget before you’ve even confirmed the design works. Imagine being able to create a functional injection mold in just a few days for a fraction of the cost, getting your product to market faster.
Yes, you can absolutely use 3D printing for low-run injection molds. This method is ideal for producing prototypes and small batches, typically ranging from 10 to 100 parts. The main advantages are incredible speed and massive cost savings. By using high-temperature photopolymer resins or durable polymers, you can create a mold in hours instead of weeks. This allows for rapid design testing with the final production material, bridging the critical gap between a simple prototype and expensive mass production tooling.
This technology has really changed the game for product development. It gives business owners and engineers the power to iterate on designs quickly without the fear of a huge financial commitment for each version. But before you jump in, it’s important to understand where this technology shines and what its limits are. Let’s dig deeper into what makes 3D printed molds a smart choice for certain projects.
How Much Faster and Cheaper is a 3D Printed Mold?
Waiting weeks for a simple metal mold just to run a few test parts feels like a huge waste of time, doesn’t it? This delay can stall your entire project timeline and inflates costs before you’ve even validated your part design. Imagine turning your digital CAD file into a physical mold that’s ready for injection in just one or two days, letting you move forward with confidence.
A 3D printed mold can be ready in 24-48 hours, a massive reduction from the 4-8 weeks often needed for a simple steel or aluminum mold. In terms of cost, you might spend just a few hundred dollars on a printed mold, compared to thousands for a basic aluminum tool. This makes it perfect for verifying a design with the actual production plastic, saving you from costly mistakes before you commit to expensive hard tooling for mass production.
The difference in speed and cost is truly remarkable, and it comes down to the manufacturing process itself. Traditional mold making is a subtractive process. It requires skilled machinists, complex CNC programming, and multiple machine setups. 3D printing, on the other hand, is an additive process that builds the mold layer by layer directly from a digital file with minimal human oversight.
Let’s break it down to see the real-world impact.
Time Savings Breakdown
A traditional aluminum "soft" tool can take weeks. This involves programming the CNC machine, milling the cavity and core, maybe some EDM work for fine details, and then hand polishing. Each step adds time. With 3D printing, you can send the file to the printer in the evening and have the mold halves ready the next morning. After some simple post-processing and curing, it can be on the injection molding press that same day. This transforms a month-long waiting game into a two-day task.
Cost Savings Breakdown
The cost savings come from three main areas: material, labor, and machine time. A block of P20 steel or aircraft-grade aluminum is expensive. The specialized resins for 3D printing are not cheap, but you use much less material overall. Labor is the biggest factor. You don’t need a highly paid toolmaker spending 40+ hours on a CNC machine. The printer does most of the work. This direct process means the cost to produce a prototype mold drops dramatically.
| Feature | 3D Printed Mold | Traditional Aluminum Mold |
|---|---|---|
| Lead Time | 1-3 days | 2-4 weeks |
| Cost | $200 – $1,000 | $2,000 – $10,000+ |
| Best For | < 100 parts, Prototyping | 100 – 10,000 parts |
| Labor | Minimal post-processing | Skilled machinist required |
I once had a client who needed to test a new clasp design for an electronics case. A traditional mold would have cost him $5,000 and taken three weeks. We printed a mold for him in a day for about $400. He was able to test the part, find a flaw in the snap-fit, adjust the design, and print a new mold the next day. This rapid iteration saved him weeks of delays and thousands in tooling modifications.
What Materials Work Best for 3D Printed Injection Molds?
You’re ready to try a 3D printed mold, but you’re worried it will melt or break under the intense pressure and heat of injection molding. Using the wrong material could lead to a failed mold, wasted time, and potentially damaged equipment. You need a material that is strong enough to withstand the clamping force and hot enough to resist the molten plastic, ensuring you get usable parts.
The best materials for 3D printed injection molds are high-temperature photopolymer resins, often used in SLA or PolyJet printing technologies. Materials like Formlabs’ High Temp Resin or Stratasys’ Digital ABS are specifically engineered to have a high heat deflection temperature (HDT), often over 200°C (392°F). This allows them to handle the heat from common plastics like Polypropylene, ABS, and Polyethylene without deforming. These resins also offer high resolution for fine details and a smooth surface finish.
Choosing the right material is probably the most critical factor for success. The material has to do two things very well: resist heat and withstand pressure. During injection molding, molten plastic is forced into the mold cavity under thousands of PSI. At the same time, the mold halves are clamped together with tons of force. A standard 3D printing plastic would simply deform or shatter.
Key Material Properties
When you’re evaluating materials, look for these three things:
- High Heat Deflection Temperature (HDT): This is the temperature at which a material begins to deform under a specific load. It needs to be significantly higher than the melting temperature of the plastic you are injecting. If you are injecting ABS at 230°C, you need a mold material with an HDT well above that.
- High Compressive Strength: This measures the material’s ability to resist being crushed. The mold needs to withstand the high clamping forces of the injection molding machine without cracking.
- Good Thermal Conductivity: This is a tricky one. Plastic molds don’t conduct heat as well as metal. This means the parts will take longer to cool. While not a material you select for, it’s a property you must design around by planning for longer cycle times.
Popular Material Choices
| Technology | Material Example | Key Benefit | Best For |
|---|---|---|---|
| SLA | High Temp Resin | Excellent detail, smooth finish, high HDT | Small, detailed parts like gears or connectors. |
| PolyJet | Digital ABS | Good toughness and heat resistance | Functional prototypes, snap-fits. |
| FDM | ULTEM, PEEK | Very high strength and temperature resistance | Larger, simpler mold geometries. |
In my experience, SLA high-temp resins offer the best balance for most low-run applications. The surface finish is so good that you often don’t need any post-processing on the cavity surfaces, which saves a lot of time. For parts that need to be tougher, something like Digital ABS can be a better choice. The key is to match the mold material properties to the injection material and the part geometry.
How Many Shots Can You Get From a 3D Printed Mold?
You’ve invested in a 3D printed mold, but you’re worried it might only last for a handful of parts before it fails. The uncertainty makes it hard to plan your production run and calculate your true cost per part. You need to know how durable these molds are so you can reliably produce the number of parts you need without unexpected downtime or costly reprints.
The lifespan of a 3D printed mold depends heavily on the mold material, the injected plastic, and the complexity of the part design. Generally, you can expect a high-temperature resin mold to produce anywhere from 10 to over 100 parts. For less aggressive materials like Polypropylene at lower pressures, you can often get to the higher end of that range. For more abrasive, high-temperature materials like glass-filled Nylon, the lifespan might be much shorter, perhaps only 10-20 shots.
The idea of a "plastic" mold wearing out is a real concern. Unlike hardened steel, photopolymer resins will degrade with each cycle of intense heat and pressure. The failure point is usually related to the wear and tear on fine details, sharp corners, or gate areas. Understanding the factors that affect mold life is key to getting the most out of your tool.
Factors Influencing Mold Lifespan
- Injected Material: A low-temperature, smooth-flowing material like Polypropylene is much gentler on a mold than a high-temperature, abrasive material like glass-filled ABS. The glass fibers in filled plastics act like sandpaper, eroding the mold cavity with every shot.
- Part Geometry: Designs with thin walls, sharp internal corners, and complex features put more stress on the mold. These features are more likely to chip, crack, or wear down first. Using generous radii and drafts can significantly extend the mold’s life.
- Molding Parameters: Lowering the injection pressure, speed, and temperature can help preserve the mold. It might increase the cycle time slightly, but it’s a worthwhile trade-off to get more parts from a single tool. I always advise my clients to start with the mildest possible settings and gradually increase them if needed.
Maximizing Your Shot Count
Here are a few tips I’ve learned over the years to squeeze more life out of a printed mold:
- Use Mold Release: Applying a quality mold release spray every few shots prevents the part from sticking and reduces the stress on the mold during ejection.
- Incorporate a Metal Frame: For extra support, you can design the 3D printed mold as an insert that fits into a standard aluminum or steel master frame. The frame absorbs the majority of the clamping force, protecting the more fragile printed insert.
- Cooling is Key: Overheating is the enemy. Allow the mold to cool adequately between cycles. You can’t run a plastic mold at the same speed as a steel one with cooling channels. Be patient.
By managing these factors, you can reliably use 3D printed molds for entire prototype runs or for your first small production batch.
When Should You Choose a 3D Printed Mold Over a Traditional One?
Knowing that 3D printed molds exist is one thing, but figuring out the right time to use them is the real challenge. If you choose wrong, you could end up with a failed mold for a project that needed steel, or overspend on a metal tool when a printed one would have been perfect. This uncertainty can lead to costly delays and poor decisions for your business.
Choose a 3D printed mold when speed, low cost, and design iteration are your top priorities, especially for quantities under 100 units. It’s the perfect choice for creating functional prototypes with production-grade materials or for market testing a new product. Opt for a traditional CNC machined aluminum or steel mold when you need thousands of parts, require high-abrasion materials, or demand extremely tight tolerances and specific surface finishes that a printed mold cannot achieve.
This isn’t a battle of which technology is "better." It’s about using the right tool for the right job. I think of 3D printed molds as a bridge. They bridge the gap between a simple visual prototype and full-scale manufacturing. Thinking about your project in terms of its current stage will help you make a clear choice.
The Ideal Scenario for a 3D Printed Mold
You should strongly consider a 3D printed mold when you find yourself in these situations:
- Design Validation: You have a design that looks good on screen, but you need to test its real-world function (e.g., does the snap-fit work? Is it strong enough?). A printed mold lets you create a dozen test parts in the final material far cheaper than an aluminum tool.
- Bridge Tooling: Your steel production mold will take 8 weeks to make, but your customer needs parts in 2 weeks. A 3D printed mold can "bridge" that gap, producing a small batch of parts to keep the project moving while the main tool is being manufactured.
- Low-Volume Production: You are making a highly customized or niche product where you will only ever need 50-100 units. The cost of a traditional mold would be impossible to justify.
When to Stick with Traditional Molds
On the other hand, traditional metal molds remain the undisputed champion for:
- High-Volume Production: If you need to make 10,000 parts or more, the durability and efficiency of a steel mold are non-negotiable. The per-part cost will be much lower in the long run.
- Abrasive Materials: If you’re injecting a plastic with glass or carbon fiber fill, a hardened steel mold is the only option that will withstand the abrasive nature of the material for any significant number of shots.

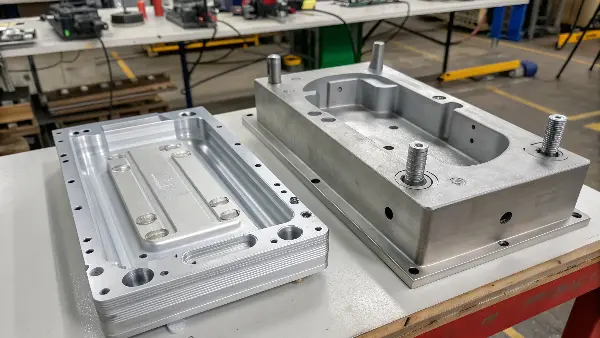

- Tight Tolerances and Finishes: For medical devices or high-precision optical parts, the accuracy and polish achievable with a CNC-machined and hand-polished steel mold are far superior to what a 3D printed mold can offer.
| Factor | Choose 3D Printed Mold | Choose Traditional Mold (Aluminum/Steel) |
|---|---|---|
| Quantity Needed | 10 – 100 parts | 500 – 1,000,000+ parts |
| Primary Goal | Speed, Prototyping, Design Iteration | Durability, High Volume, Low Cost-Per-Part |
| Material to Inject | Standard polymers (PP, ABS, PE) | Any polymer, including abrasive filled plastics |
| Project Urgency | High (need parts in days) | Normal (can wait several weeks) |
Think of it like this: a 3D printed mold is like a high-quality sketchbook for engineers, while a steel mold is the final printing press. Both are essential tools, but you use them at different stages of the creative process.
Conclusion
In short, 3D printing has become a powerful and practical tool for creating low-run injection molds. It offers unmatched speed and cost-effectiveness for prototyping and small-batch production. While it won’t replace traditional steel molds for mass manufacturing, it provides a vital bridge that helps businesses innovate faster, reduce risk, and get products into customers’ hands sooner than ever before. It’s a game-changer for modern manufacturing.
