How Can You Master PMMA Injection Molding for Flawless, Crystal-Clear Parts?

Struggling to get perfect, transparent parts with Polymethyl Methacrylate (PMMA)? You’re not alone. This material, also known as acrylic, offers amazing optical clarity¹ but can be unforgiving, showing every tiny flaw if not handled right.
Mastering PMMA injection molding² requires meticulous material preparation³ (especially drying!), precise temperature control for both melt and mold, optimized injection parameters, and careful mold design—particularly gate sizing for thicker or larger parts to prevent flow issues.
PMMA is a fantastic choice when you need glass-like transparency, excellent weather resistance, and good stiffness. Think automotive light covers, high-end display screens, medical devices, or even those cool transparent product casings. But getting it right every time means understanding its unique personality. I’ve seen my share of PMMA projects, and the ones that succeed always nail the fundamentals. Let’s dive into how you can achieve that.

What Makes PMMA Acrylic Such a Unique Material for Molding?

One thing I learned early on with PMMA is its sensitivity to stress. If you design a part with sharp internal corners or if the ejection system puts too much localized force on it, you can see crazing or even cracks later on. So, a good DFM (Design for Manufacturability) review is even more critical with PMMA than with some more forgiving materials.

What Key Process Parameters Unlock Successful PMMA Injection Molding?

You’ve got your PMMA, your design looks good on paper, but now you’re facing bubbles, flow lines, or parts that just don’t look right. It’s incredibly frustrating when the material’s potential isn’t realized. What are the magic numbers and settings?
Successful PMMA molding hinges on meticulous material drying, precise melt and mold temperatures, controlled injection speed and pressure, adequate holding pressure and time, and sufficient cooling. These parameters are interconnected and need to be optimized for the specific part and mold.
!
There isn’t one "magic" set of parameters for all PMMA jobs, but there are well-established ranges and principles that guide us. Getting these right is what separates a beautiful, crystal-clear part from a reject. I always tell my team, "Treat PMMA like a diva – it needs specific conditions to perform!"
Here’s a more detailed look:

1. Material Drying:
   • Why: PMMA is hygroscopic, meaning it absorbs moisture from the air. If molded wet, this moisture turns to steam, causing silver streaks, splay marks, voids, and reduced mechanical properties. It’s probably the #1 cause of PMMA molding problems!
   • Typical Recommendation: Dry at 70-90°C (160-195°F) for 2-4 hours, or even longer for very high moisture content. The target moisture content is typically below 0.04%. I always recommend using a desiccant dryer.
   • My Tip: Don’t skimp on drying! I’ve seen projects fail simply because the drying wasn’t thorough enough. Verify with a moisture analyzer if you can.
2. Melt Temperature:
   • Why: Affects melt viscosity, flow, and potential for degradation. Too low, and you get short shots or flow lines. Too high, and you risk material degradation (yellowing, reduced properties, silver streaks from gas).
   • Typical Range: Generally 200-250°C (390-480°F). Higher flow grades might use the lower end, while stiffer grades might need the higher end.
   • My Tip: Start in the mid-range recommended by the material supplier and adjust based on part appearance and fill. Avoid excessive residence time in the barrel at high temperatures.
3. Mold Temperature:
   • Why: Influences surface finish, internal stresses, shrinkage, and cycle time. Too cold can lead to poor surface replication, high stress, and flow issues. Too hot can prolong cycle times and potentially cause sticking.
   • Typical Range: 60-90°C (140-195°F). Higher mold temps generally give better surface finish and lower internal stress.
   • My Tip: For optical parts, a warmer mold is often better, even if it slightly extends the cycle. Uniformity of mold temperature is also key.
4. Injection Speed & Pressure:
   • Why: Controls how the material fills the cavity. Speed affects shear heating and surface finish. Pressure ensures complete filling.
   • Considerations: PMMA’s higher viscosity might require relatively high injection pressures.
   • My Tip (and this links to my insights!): For PMMA parts, especially those that are large or have thick walls, you absolutely must pay attention to gate design and injection parameters. If the gate is too small, you’ll struggle to pack out the part, leading to sink or voids, and you’re very likely to see flow lines or jetting as the material is forced through a tiny restriction. So, we often recommend larger, well-radiused gates for PMMA, coupled with a controlled, often progressively faster, injection speed profile to fill the part smoothly without excessive shear. High injection pressure helps overcome the material’s viscosity, particularly for thin sections or long flow paths.
5. Holding Pressure & Time:
   • Why: Compensates for material shrinkage as it cools in the mold. Critical for dimensional accuracy and preventing sink marks.
   • Considerations: Holding pressure is typically 50-70% of injection pressure. Time needs to be sufficient for gate freeze-off.
   • My Tip: Too much holding pressure or time, especially with a poorly designed gate, can lead to overpacking and stress near the gate.
6. Cooling Time:
   • Why: Allows the part to solidify sufficiently to be ejected without distortion. PMMA generally requires adequate cooling due to its amorphous nature.
   • My Tip: Don’t rush it. While everyone wants faster cycles, ejecting PMMA too hot is a recipe for warpage or dimensional issues.
     Optimizing these isn’t always a walk in the park. It often involves some trial and error, careful observation, and sometimes advanced tools like molding simulation. But starting with these guidelines will put you way ahead.

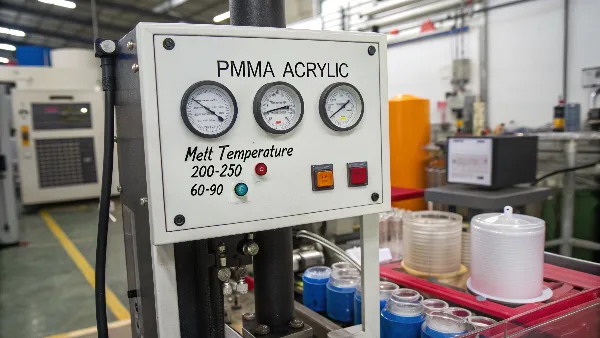

     What Temperature Is Best for Molding PMMA Acrylic?

     You’ve heard that temperature is critical for PMMA, but with so many temperature settings on an injection molding machine – barrel zones, nozzle, mold – which ones matter most, and what are the ideal targets? Getting this wrong can lead to a whole host of problems.

For PMMA, melt temperature typically ranges from 200-250°C (390-480°F) and mold surface temperature from 60-90°C (140-195°F). Precise control within these ranges, tailored to the specific grade and part geometry, is crucial for optimal flow, surface finish, and part properties.

It’s not just about hitting a single number; it’s about achieving the right thermal profile throughout the process. Think of it like baking – you need the oven at the right temperature, but also for the right amount of time, and the ingredients need to be at the right starting point.
Here’s a breakdown of the key temperatures and why they’re vital:

• Drying Temperature (Pre-Molding):
  • As I mentioned before, this isn’t a molding temperature, but it’s the absolute first step. Typically 70-90°C (160-195°F) for 2-4+ hours. If you skip or skimp on this, no amount of tweaking melt or mold temperatures will save you from moisture-related defects.
• Melt Temperature (Barrel Zones & Nozzle):
  • Range: 200-250°C (390-480°F).
  • Rear Zone (Feed Zone): Usually coolest, perhaps around 180-200°C, to facilitate material transport.
  • Center Zones (Transition/Compression Zone): Gradually increasing, e.g., 200-230°C, to ensure uniform melting.
  • Front Zone & Nozzle: Hottest, often 220-250°C, to ensure the melt is at the optimal viscosity for injection. The nozzle temperature should generally be the same as or slightly higher than the front zone to prevent freeze-off, but not so high it causes drooling or degradation.
  • Why it’s critical: Too low means poor flow, short shots, high stress. Too high leads to degradation (yellowing, reduced strength, gas generation causing splay), and can make the material too fluid, potentially causing flash.
• Mold Temperature (Surface Temperature of Cavity & Core):
  • Range: 60-90°C (140-195°F).
  • Why it’s critical:
    • Flow & Replication: A warmer mold allows the PMMA to flow more easily, better replicating fine details and textures, and reducing flow lines.
    • Internal Stresses: A warmer mold allows for slower cooling, which reduces molded-in stresses. This is super important for PMMA as it’s notch-sensitive and prone to crazing if stressed.
    • Surface Finish: Higher mold temps generally yield a glossier, higher-quality surface.
    • Shrinkage & Warpage: Consistent and appropriate mold temperature helps control shrinkage and minimize warpage.
    • Cycle Time: While warmer molds are good for quality, they can extend cooling time. It’s a balance.
  • My Experience: For parts needing high optical quality or complex geometries, I often push towards the higher end of the mold temperature range. The slight increase in cycle time is usually worth the improvement in part quality. We also ensure our mold cooling channels are well-designed for uniform temperature across the cavity surface. Hot spots or cold spots on the mold are bad news for PMMA.
    Always, always, always start with the material supplier’s datasheet recommendations for temperatures, and then fine-tune based on your specific machine, mold, and part requirements. Documenting your settings when you get good parts is gold!

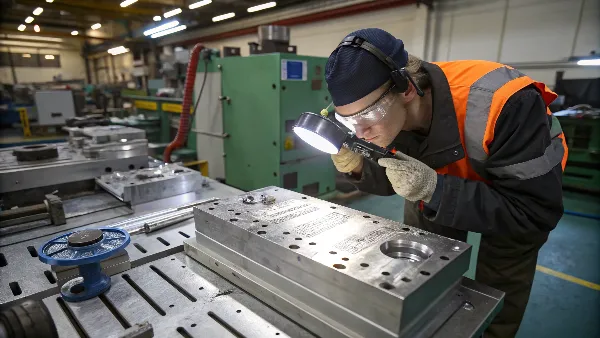

    How Do You Troubleshoot Common PMMA Injection Molding Defects?

    Even with the best preparation, sometimes things go sideways. You open the mold, and there it is – a defect staring back at you. With PMMA’s clarity, these flaws are often painfully obvious. What’s causing it, and more importantly, how do you fix it?

Troubleshooting PMMA defects involves systematically identifying the issue (e.g., silver streaks, voids, sink marks, flow lines, crazing), then methodically adjusting process parameters (drying, temperatures, pressures, speeds), checking material quality, and examining mold design (gates, venting, cooling).

I’ve spent countless hours peering at imperfect PMMA parts, trying to decipher what went wrong. It’s like being a detective! The key is not to panic and change everything at once. Here’s a rundown of common culprits and their fixes:	Defect	Common Causes	Potential Solutions
Silver Streaks/Splay	– Moisture in material (most common!) – Material degradation (overheating) – Trapped air/gas – Contamination	– Dry PMMA thoroughly (0.04% moisture or less) – Reduce melt temperature, barrel residence time – Check for proper mold venting – Reduce injection speed (initially) – Ensure clean material, hopper, barrel
Voids/Bubbles	– Insufficient holding pressure/time – Gate freezes off too early – Thick sections cooling too slowly internally – Material shrinkage	– Increase holding pressure and/or time – Increase gate size – Optimize cooling for thick sections – Increase melt/mold temperature slightly to improve packing – Ensure proper venting
Sink Marks	– Insufficient packing (holding pressure/time) – Thick sections adjacent to thin sections (poor design) – Mold/melt temperature too high or too low causing uneven cooling	– Increase holding pressure and/or time – Redesign part to reduce thick sections or core them out – Adjust mold/melt temperatures for better packing and uniform cooling – Enlarge gates/runners for better pressure transmission
Flow Lines/Jetting	– Gate too small or poorly positioned – Melt temperature too low – Injection speed too high (jetting) or too low (hesitation) – Mold temperature too low	– Increase gate size (as per my earlier insight!), optimize gate location (e.g., direct into thickest section) – Increase melt temperature – Adjust injection speed (often slower initially for jetting, faster for hesitation marks, profile it) – Increase mold temperature – Improve venting
Crazing/Cracking	– High molded-in stress – Sharp corners in part design – Aggressive ejection – Contact with incompatible chemicals (e.g., some mold releases) – Material degradation	– Increase mold temperature – Redesign part with generous radii – Optimize ejection (pins, speed) – Use compatible mold release (if any) – Reduce injection/holding pressure – Anneal parts post-molding if severe
Weld Lines	– Melt fronts meeting at low temperature/pressure – Poor venting at weld line location – Unfavorable gate locations	– Increase melt/mold temperature – Increase injection speed/pressure – Optimize gate locations to move weld line or make it less visible/critical – Add/improve venting at weld line
Warpage	– Uneven cooling – Differential shrinkage – High molded-in stress – Premature ejection	– Optimize mold cooling for uniformity – Adjust holding pressure/time – Increase cooling time – Increase mold temperature – Ensure part design has uniform wall thickness where possible
Poor Surface Finish/Dullness	– Mold temperature too low – Low melt temperature – Insufficient packing – Poor mold surface polish – Contamination	– Increase mold temperature – Increase melt temperature – Increase holding pressure – Ensure mold surface is highly polished and clean – Check for material contamination

One critical thing for PMMA, as I mentioned in my insights, is how gate size impacts flow, especially for larger or thicker products. If you see flow marks or what we call "射胶纹" (injection lines/streaks), a tiny gate is often the prime suspect. The material gets squeezed through, creating high shear and often visible defects. So, if you’re seeing those, definitely revisit your gate design and processing parameters related to flow (injection speed, melt temp). Sometimes a slightly slower, more controlled fill through an adequately sized gate is much better than trying to blast it through a pinhole.
Troubleshooting is an iterative process. Change one thing at a time, observe the result, and document everything. Patience is key!

Conclusion

Successfully molding PMMA really boils down to respect for the material’s unique needs. From meticulous drying and precise temperature control to smart mold design, every step counts. Get these right, and you’ll unlock truly stunning, crystal-clear parts.
