How Can You Maximize Your Injection Mold’s Lifespan and Save Thousands?

Molds wearing out unexpectedly causes major headaches, right? Production stops, urgent repairs cost a fortune, and replacing molds burns through cash you didn’t budget for.

Maximizing mold lifespan boils down to consistent, preventative maintenance: regular cleaning, careful inspection, proper handling and storage, using correct processing parameters, and addressing minor wear before it becomes major damage. This proactive approach avoids costly downtime and delays expensive replacements.

That expensive tool is the heart of your plastic part production¹. Letting it degrade prematurely is like throwing money away. I’ve seen companies save fortunes just by treating their molds right². But to really understand how to protect them³, we need to cover some basics first. Let’s dive in.

What Is an Injection Mold, Really?

Confused about what exactly makes up that complex metal block? Understanding the basics helps appreciate why maintenance is so critical and where potential problems hide, avoiding costly assumptions later on.

An injection mold is a precision-engineered tool, usually made of steel or aluminum, with custom cavities shaped like the desired part. Molten plastic is injected under high pressure into these cavities, cools, solidifies, and the finished part is ejected. It’s essentially a high-pressure, reusable shaping die.

Think of it like a very sophisticated waffle iron, but for plastic and under immense pressure. It’s not just one solid block. A typical mold has two halves: the A-side (cavity side, often mounted on the stationary platen) and the B-side (core side, mounted on the moving platen). Inside, you have several key systems working together:

• ### Cavity and Core: These define the actual shape of the part. The cavity is the hollow part, the core sticks into it. The precision here dictates the part’s final dimensions and finish. Getting this right is fundamental for designers like Jacky.
• ### Feed System: This gets the plastic from the machine nozzle to the cavity. It includes the sprue (main channel), runners (distribute plastic), and gates (entry point into the cavity). Poor design here causes filling issues and potential wear at the gate.
• ### Ejection System: Pins or plates push the finished part out of the mold once it’s cool enough. Timing and force are crucial to avoid part damage or stress on the mold components. Worn ejector pins are a common issue.
• ### Cooling System: Channels run through the mold blocks with water or oil circulating to control the temperature and solidify the plastic quickly and evenly. This heavily influences cycle time and part quality. Blocked channels are a major cause of problems.
• (Optional) Slides/Lifters: Mechanisms needed to create undercuts or complex features that wouldn’t allow the part to eject otherwise. These add complexity and are key wear points requiring careful maintenance.
  Understanding these parts helps pinpoint where wear or damage might occur and why specific maintenance steps are needed. A worn ejector pin needs different attention than a blocked cooling channel or a damaged cavity surface.

  What’s the Typical Lifespan We’re Talking About?

  Wondering how long your mold should last? Setting realistic expectations is key. Expecting millions of shots from a cheap prototype mold⁴ leads to budget blowouts and production chaos.

Mold lifespan varies hugely, from under 500 shots for simple prototypes (Class 105) to over a million shots for high-volume hardened steel molds (Class 101). There’s no single average; it depends entirely on the mold’s construction class, materials, complexity, and the plastic being molded.

It’s crucial not to think of "lifespan" as one number. It’s a range defined by how the mold was designed and built for its intended purpose. A mold designed for 10,000 parts will use different materials and construction than one built for 1,000,000 parts. Expecting the cheaper mold to last forever is a common mistake I’ve seen lead to major production issues and stress for designers like Jacky managing deadlines. Factors like the type of plastic resin (some are abrasive or corrosive), the cycle time (faster cycles can mean more wear), and the operating pressures all play a role within a mold’s designed class. A complex mold with many moving parts (slides, lifters) will naturally have more wear points than a simple open-and-shut design, potentially shortening its practical life even within the same class. We often talk about "shots" or cycles as the measure, but it’s really about achieving the required number of acceptable quality parts. A mold might physically cycle a million times but start producing out-of-spec parts after 800,000 – its effective life ended there. Setting clear expectations with your mold maker based on production volume is step one for accurate planning and budgeting.

How Do We Classify Mold Lifespans Officially?

Need a standard way to define mold life for quotes and specs? Using industry classifications avoids misunderstandings. Asking for a "long life" mold isn’t specific enough and can lead to confusion.

The Society of the Plastics Industry (SPI) provides standard classifications (Class 101 to 105) based on expected production cycles. These classes dictate mold base materials, cavity/core hardness, cooling requirements, and other features directly related to durability and lifespan, ensuring clarity between customer and mold maker.

These SPI classifications are incredibly useful because they provide a common language. When you specify a Class 101 mold, the mold maker knows exactly the level of quality and durability you expect. This helps prevent disputes later on. Here’s a quick breakdown I always refer to:

• ### SPI Mold Classifications Overview:	Class	Cycles	Description	Typical Mold Base Material	Typical Cavity/Core Hardness (Rockwell C)	Key Features
  101	> 1 Million	Extremely High Production	Highest Quality Steel	Min 48 HRC	Hardened components throughout, guided ejection, best cooling
  102	< 1 Million	High Production	High Quality Steel	Min 28 HRC	Good for abrasive materials, suitable for long runs
  103	< 500,000	Medium Production	Medium Quality (e.g., P20)	Often Pre-Hardened (28-32 HRC typical)	Most common choice for moderate volume consumer or industrial parts
  104	< 100,000	Low Production	Mild Steel or Aluminum	May be softer steels or Aluminum	Focus on lower initial cost, less durable components
  105	< 500	Prototype Only	Aluminum, Epoxy, Other	Not typically hardened	For concept verification, very limited use, fastest and cheapest option

  Knowing these helps designers like Jacky specify the right tool for the job based on project requirements and budget. Don’t pay for a Class 101 mold if you only need 50,000 parts (a Class 103 might be perfect and much cheaper). Conversely, ordering a Class 104 for a million-part run guarantees failure and massive extra costs later when it inevitably wears out prematurely. Always match the class to your realistic total production volume needs.

What Actually Causes Molds to Wear Out?

Why doesn’t that expensive steel mold⁵ last forever? Several factors constantly attack the mold during production. Ignoring these is like driving your car without changing the oil – failure is inevitable⁶.

Key factors reducing mold life include abrasive/corrosive plastic resins, high injection pressures/speeds, frequent cycling (fatigue), inadequate cooling causing thermal stress, improper handling/clamping, lack of lubrication on moving parts, and neglecting regular cleaning and preventative maintenance.

Molds live a hard life, dealing with intense heat, immense pressure, constant friction, and sometimes chemically aggressive materials. Understanding the enemies helps you fight back with targeted maintenance. Here’s what breaks them down over time:

• ### Material Interactions:
  • Abrasive Fillers: Many plastics are filled with glass fibers, minerals, or even certain pigments to achieve desired properties. These act like fine sandpaper during injection, constantly eroding the steel surfaces, especially at high-flow areas like gates and runners. Hardened tool steels (like in Class 101/102 molds) resist this much better than softer steels or aluminum.
  • Corrosive Resins: Certain plastics, like PVC or some flame-retardant formulations, can release corrosive byproducts (like acids) when heated to molding temperatures. These gases, especially if moisture is present (from improperly dried resin), directly attack the mold steel, causing pitting and degradation. Using stainless steel or special protective coatings on the mold becomes necessary.
• ### Operational Stresses:
  • High Pressure & Clamping Force: The injection molding process involves clamping the mold halves together with hundreds or thousands of tons of force, then injecting plastic at pressures up to 20,000 psi or more. This constant cycle of high stress eventually leads to metal fatigue, potentially causing micro-cracks or deformation over many thousands of cycles.
  • Friction & Galling: Moving components like slides, lifters, leader pins, and ejector pins rub against other surfaces during every cycle. Without proper alignment, surface finish, and crucially, lubrication, this friction causes wear. In severe cases, it can lead to galling (where surfaces seize or weld together), causing major damage.
  • Thermal Cycling: The mold steel is rapidly heated by the incoming molten plastic and then cooled by the cooling channels. This constant expansion and contraction creates thermal stress within the steel. Uneven cooling or poorly designed cooling channels can exacerbate this stress, leading to warping or cracking over time.
• ### Maintenance & Handling Neglect:
  • Contamination & Residue: Small bits of plastic, dirt, grease, or even condensation left on the mold surfaces can get crushed under high pressure when the mold closes, damaging delicate parting lines or textured surfaces. Residue buildup in vents prevents gas escape, leading to burns and potentially more damage.
  • Improper Handling & Storage: Dropping a mold, using steel pry bars to open stuck molds (a common mistake!), or storing it improperly without rust preventative can cause immediate or long-term damage.
    Understanding these root causes helps tailor maintenance strategies effectively. If you’re running glass-filled nylon, focusing on wear inspection and using hardened tooling is key. If using PVC, checking for corrosion and ensuring proper venting is vital.

How Do Molding Problems Affect the Mold Itself?

Think part defects⁷ are just a quality issue⁸? Many common problems actually signal underlying issues that are actively damaging your mold, shortening its life if ignored and costing more later.

Defects like flash (plastic escaping parting line) indicate poor clamp or worn surfaces. Burns suggest blocked vents causing overheating. Short shots or warping might point to cooling issues stressing the mold. These aren’t just part problems; they often accelerate mold wear and damage.

Don’t treat part defects in isolation. They are often symptoms of a problem that could be hurting the mold tool itself. Recognizing the link is crucial for extending mold life and is something experienced designers like Jacky learn to watch for:

• ### Defect-Mold Damage Connections:	Defect Seen in Part	Potential Related Mold Issue	How it Damages the Mold Over Time
  Flash	Worn/damaged parting line, debris on parting line, insufficient clamp	Plastic forced into tiny gaps erodes the steel parting line surfaces, impacting sealing.
  Burn Marks	Blocked or inadequate vents, excessive injection speed/pressure	Trapped hot gas overheats and degrades the steel locally; burnt plastic residue is hard to remove.
  Short Shot	Blocked gate/runner, poor venting, insufficient material/pressure	Can indicate flow path restrictions causing uneven pressure; can indicate venting issues.
  Warping	Uneven cooling (blocked channels), internal stresses, poor part design	Often signals inefficient or blocked cooling, causing uneven thermal stress on mold components.
  Drag Marks	Insufficient draft angle, rough cavity surface, ejector system issue	High friction during ejection wears down mold surfaces and strains the ejection mechanism.
  Sink Marks	Poor cooling layout, inadequate packing pressure or time	Can sometimes indicate localized hot spots in the mold due to cooling inefficiency.
  Sticking Parts	Lack of draft, undercuts without action, rough surface, ejector issues	Parts forcibly removed can damage surfaces, ejector pins, or other delicate features.

  When operators or quality control personnel see these defects, the first reaction might be to tweak processing parameters (temperature, pressure, speed). While sometimes helpful, it often just masks the underlying issue. If flash occurs, simply increasing clamp tonnage puts immense stress on the mold and press, potentially causing severe damage, instead of fixing the root cause (e.g., cleaning or repairing the parting line). Investigating why the defect is happening and addressing the mold condition directly (cleaning vents, polishing surfaces, checking cooling flow, ensuring proper lubrication) is essential for protecting the tool and extending its life. Ignoring these signals allows damage to accumulate.

What Practical Steps Extend Mold Life Significantly?

Ready for the solutions that save money? Extending mold life isn’t magic. It involves consistent, practical maintenance steps that prevent wear and catch problems early, keeping production smooth.

Implement a strict preventative maintenance schedule: in-press cleaning between runs, detailed bench inspection/cleaning/lubrication periodically, proper storage with rust preventative, careful handling, using correct settings, and training operators to spot early warning signs. Document everything.

This is where the real savings happen in the long run. Proactive maintenance is far, far cheaper than dealing with unexpected breakdowns, emergency repairs, or premature mold replacement. I’ve seen companies implement simple programs that pay for themselves many times over. Here’s a checklist of essential practices I always recommend, crucial for operations supporting designers like Jacky who rely on reliable tooling:

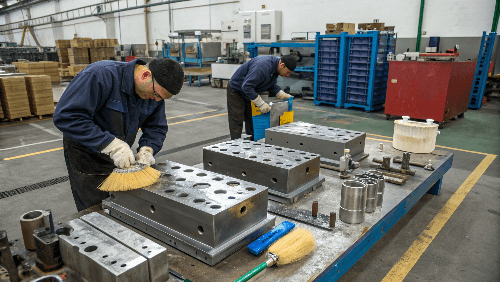

• ### 1. Routine In-Press Cleaning & Inspection:
  • Frequency: End of every production run, or daily for continuous runs.
  • Tasks: Clean cavity, core, and parting line surfaces with approved solvents. Remove all plastic residue, especially around vents and ejector pins. Visually inspect for any obvious damage or buildup. Apply a short-term rust inhibitor if the mold will sit for more than a day or two. Ensure vents are clear using soft tools (brass picks, never steel).
• ### 2. Scheduled Preventative Maintenance (PM) at the Bench:
  • Frequency: Based on cycles run (e.g., every 25,000 or 50,000 cycles, depending on mold class/complexity) or time (e.g., quarterly).
  • Tasks: Remove mold from press. Fully disassemble as needed. Thoroughly clean all components, paying special attention to cooling channels (flush them out!) and vents. Inspect all surfaces meticulously (use magnification) for wear, cracks, corrosion, or damage (parting line, gates, slides, pins). Check alignment of moving parts. Lubricate all required components (ejector system, slides, lifters) with the correct type of grease. Reassemble carefully and verify function.
• ### 3. Proper Storage Procedures:
  • Tasks: Before storage, perform a thorough cleaning and inspection. Apply a high-quality, long-term rust preventative to all susceptible surfaces. Ensure cooling lines are purged of water (use compressed air). Store the mold closed, if possible, in a designated, clean, dry area, preferably covered. Avoid stacking molds directly on top of each other unless designed for it.
• ### 4. Careful Handling Practices:
  • Tasks: Train all personnel (operators, setup techs, toolroom staff) on correct procedures for moving, lifting (use designated hoist points), and installing molds. Never use steel tools (hammers, pry bars) directly on critical mold surfaces. Use soft mallets (brass, plastic) or lifting straps. Protect parting lines during transport and installation.
• ### 5. Use Correct Operating Parameters:
  • Tasks: Avoid using excessive clamp force ("tonnage"), injection pressure, or melt temperatures just to overcome process issues. Optimize the process to make good parts within the mold’s and material’s recommended limits. This reduces stress on the tool.
• ### 6. Meticulous Record Keeping:
  • Tasks: Maintain a detailed logbook for every mold. Record production dates, cycles run, materials used, any issues observed during production, all maintenance performed (dates, tasks, technician), and any repairs or modifications. This history is invaluable for tracking performance, predicting future maintenance needs, and troubleshooting problems efficiently.
    Implementing these steps requires discipline and commitment, but the payoff in extended mold life, reduced downtime, consistent part quality, and significant cost savings is undeniable.

    Conclusion

    Treating your injection molds as valuable assets through consistent, preventative maintenance isn’t an expense; it’s an investment. It directly extends their productive life, prevents costly downtime, ensures part quality, and ultimately saves thousands by delaying replacement.
