What Are the Essential Parts of an Injection Mold Base?

Feeling overwhelmed by injection mold jargon? Confusing cores, cavities, and sliders can hinder effective design talks and risk errors. Let’s simplify it and explore each key part.

The essential parts are the mold base¹ holding everything, the cavity forming the part’s exterior, the core shaping its interior, the runner system² delivering plastic, the ejector system³ pushing the part out, and the cooling system managing temperature. Understanding these is key.

Seeing the big picture is helpful, but truly understanding how a mold works requires looking closer at each component. As someone who’s spent years working with these tools, from the factory floor to designing them, I know how crucial this knowledge is for designers like Jacky. Let’s dive into the specifics, starting with the foundation itself.

What is the Mold Base and Why is it Important?

Ever wonder what holds all the intricate parts of an injection mold together? Ignoring the mold base is like ignoring a building’s foundation – crucial but often overlooked, leading to potential instability or mismatch issues later.

The mold base is the foundational structure, typically a standardized steel assembly (e.g., DME⁴, Hasco). It precisely aligns and supports the core, cavity, ejector system, and other components, ensuring the mold operates correctly and withstands injection pressures. It’s the skeleton of the mold.

The mold base⁵ does more than just hold parts; it’s engineered for precision. Think of it like the chassis of a car. It must securely locate the cavity and core halves, ensuring they align perfectly cycle after cycle, even under tons of clamping force from the molding machine. It also houses the ejector system, guiding system, and sometimes the runner system. Standardization, championed by companies like DME and Hasco, is huge here. It means using pre-manufactured plates and components, which speeds up mold building and reduces cost compared to custom-machining everything. Key parts within the base include the A-Plate⁶ (often called the cavity retainer plate) holding the cavity side, and the B-Plate (core retainer plate) holding the core side. These are precisely aligned by the guiding system (leader pins and bushings). Behind the B-plate, you find support plates (preventing deflection under pressure) and the ejector housing (containing the ejector plates and pins, forming the space for the ejector system to move). Choosing the right standard size and configuration early on, something we prioritize at CKMOLD, prevents unnecessary expense and ensures compatibility with molding machines. The base material itself is typically a tough, reliable medium-carbon steel, ensuring stability throughout the mold’s life.

What Does the Cavity Do in an Injection Mold?

Confused about where the outside shape of your plastic part comes from? Misunderstanding the cavity’s role can lead to designs that are difficult or impossible to mold correctly, causing delays and rework for designers like Jacky.

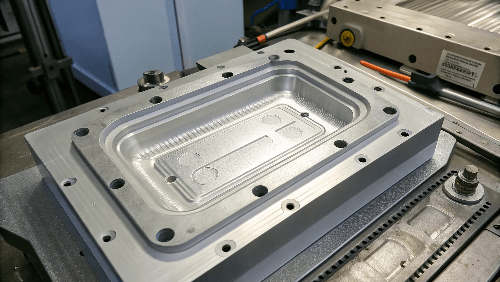

The cavity is the machined recess, usually in the A-plate or an insert within it, that forms the external surface of the molded plastic part. Its shape, texture, and precision directly determine the final part’s appearance and dimensions on one side.

Think of the cavity as the "female" part of the mold impression. When the mold closes, the molten plastic is injected into the space formed between the cavity and the core. The cavity defines the visible surfaces, the texture (e.g., smooth polish, matte finish, grained pattern), and the overall outer geometry of the part. It’s typically located in the stationary half of the mold (the "A-side," which mounts to the stationary platen of the injection molding machine, often closer to the injection nozzle). Molds can have a single cavity (producing one part per cycle) or multi-cavity (producing two, four, eight, or even more parts simultaneously). Multi-cavity molds significantly increase production output but are more complex and expensive to build, requiring careful balancing of the plastic flow to each cavity. The material choice for the cavity is critical – it needs to withstand wear from plastic flow, clamping pressure, and temperature cycling. It often needs to be polished to a high degree for smooth or glossy parts, or textured precisely. Common materials include P20 (a versatile pre-hardened steel good for medium volumes) or hardened tool steels like H13 or S7 (for high volumes, abrasive plastics, or demanding tolerances). For corrosive plastics like PVC, stainless steel (like 420SS) is used. Creating the cavity involves precise CNC machining and often EDM (Electrical Discharge Machining) for sharp corners or intricate details, followed by meticulous hand polishing or texturing. Proper draft angles (slight tapers on walls parallel to the mold opening direction) are essential to allow the part to release easily without damage or excessive ejection force. At CKMOLD, our Design for Manufacturability (DFM) process heavily scrutinizes cavity design to ensure features are moldable, correctly drafted, and meet the final part’s quality requirements.

How Does the Core Shape the Inside of a Part?

Struggling to visualize how internal features like holes or bosses are formed in plastic parts? Not understanding the core’s function makes it hard for designers to create complex internal geometries that can actually be molded efficiently and reliably.

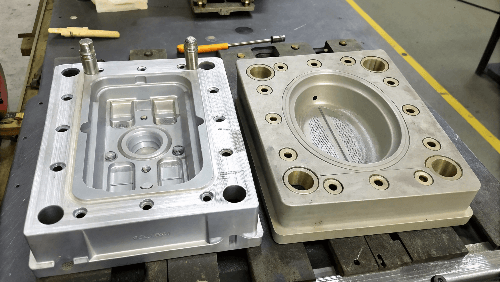

The core is the protruding "male" part of the mold, usually mounted on the B-plate (moving half). It forms the internal surfaces and features of the plastic part, such as holes, ribs, or bosses, fitting into the cavity when the mold closes.

If the cavity is the "female" half defining the outside, the core is the "male" counterpart defining the inside. It projects into the cavity when the mold is closed, creating the space where the molten plastic solidifies. The core shapes everything on the inside of the part – think of the hollow space inside a container, the pins that form screw holes (bosses), or the internal reinforcing ribs that add strength. It’s usually located on the moving half of the mold (the "B-side," attached to the moving platen) because this side typically houses the ejector system. As the mold opens, the part shrinks slightly and tends to cling to the core, positioning it perfectly for the ejector pins to push it off. Cores can range from simple blocks to highly intricate shapes with long, thin core pins to form deep holes or small features. Like the cavity, the core is usually made from durable tool steel (P20, H13, S7, etc.), selected based on production volume, plastic type, and wear resistance needs. Sometimes the core might be made of a slightly different material or hardness than the cavity depending on the specific wear patterns expected. Effective cooling is often more critical and challenging for the core, especially for tall or isolated core features, as heat needs to be removed efficiently from the inside of the part to achieve fast cycle times and prevent defects like warping. The core works directly with the ejector pins, which push against specific surfaces of the finished part (usually on the core side) to remove it from the mold after cooling. At CKMOLD, we pay close attention to core design, ensuring features are robust, properly drafted, have adequate cooling provisions, and integrate seamlessly with the ejection strategy for reliable, long-term production.

When Do You Need Sliders in an Injection Mold?

Designing parts with external snaps, clips, or holes on the side? These features, known as undercuts, prevent the part from ejecting straight out, posing a challenge that requires a special mechanism.

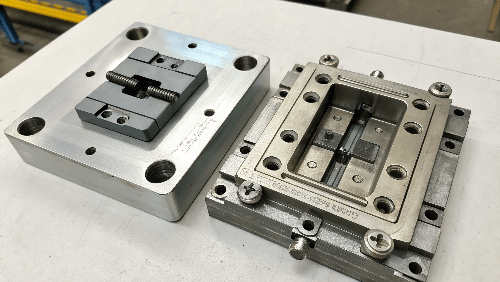

Sliders (or slides) are needed when a part has external undercuts⁷ – features perpendicular to the mold’s opening direction that would prevent direct ejection. Sliders⁸ are moving mold components that retract before ejection to clear these undercuts.

Imagine trying to pull a J-shaped hook straight out of a block of clay – the curved part gets stuck. Sliders solve this for injection molded parts. An undercut is any feature that creates this kind of "hook" preventing the part from releasing cleanly when the mold opens along its main parting line. Common examples include side holes, openings, clips, snap-fits, or recessed textures on vertical walls. Sliders are essentially separate blocks of steel incorporated into the mold, usually mounted on the A or B side. They contain the part feature (like the hole-forming pin or the snap-fit geometry) and are designed to move sideways (perpendicular to the mold opening direction). This movement is typically actuated by angle pins (also called horn pins). As the mold opens, the angle pin, fixed in the opposite mold half, pulls or pushes the slider outward, moving the undercut-forming feature away from the molded part. Once the slider is fully retracted, the part is clear of the undercut and can be ejected normally by the ejector pins. Sliders add complexity and cost to a mold due to the extra machining, fitting, and mechanisms involved (like wear plates and locking heels to ensure they stay in place during injection). However, they are essential for producing many common plastic part designs. Careful design considerations include ensuring the slider has enough travel distance to clear the undercut and is robust enough to withstand repeated cycling. At CKMOLD, we analyze part designs for undercuts during the DFM phase and recommend slider solutions when necessary, ensuring they are designed for reliability and smooth operation.

What Are Lifters Used For in Mold Design?

Have internal undercuts like snaps inside a box or recessed features that can’t be cleared by external sliders? These tricky internal features require a different kind of mechanism to allow part ejection.

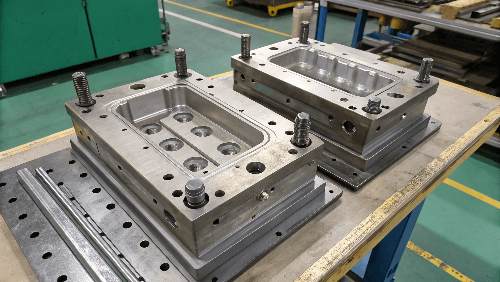

Lifters are used to release internal undercuts or features that cannot be cleared by straight ejection or external sliders. They are mold components that move with the ejector system but also travel at an angle to pull away from the undercut as the part is ejected.

While sliders handle external undercuts by moving sideways before ejection, lifters handle internal undercuts during the ejection stroke. Think of features like a small internal groove, a snap feature inside a housing, or sometimes even non-drafted internal walls that need assistance. A lifter is typically a shaped piece of steel integrated into the core side (B-side) of the mold. Its base sits within or is attached to the ejector plate assembly. When the ejector system moves forward to push the part out, the lifter moves with it. However, because the lifter is constrained by an angled channel or guide in the stationary core or mold base, it’s forced to move sideways (inward or outward relative to the part) as it moves forward. This combined forward and angled movement pulls the lifter’s feature-forming section away from the internal undercut on the plastic part just as it’s being pushed off the core. Lifters are complex mechanisms requiring precise angles and fitting. They must be strong enough to withstand injection pressure and the forces during angled movement. They often require more maintenance than sliders. Designing parts that minimize the need for lifters is often preferred for cost and simplicity, but when internal undercuts are unavoidable, lifters provide an effective, albeit complex, solution. We carefully evaluate the necessity and design of lifters at CKMOLD, ensuring they are robust and function reliably.

Why Use Inserts in Injection Molds?

Need a specific area of your mold to have different properties, handle complex geometry, or be easily replaceable? Using separate inserts within the main cavity or core blocks offers flexibility and targeted performance.

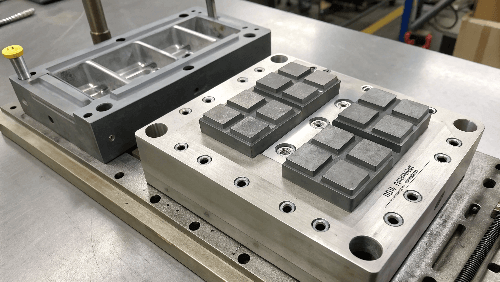

Inserts are separate, machined blocks of material (usually tool steel) placed within pockets in the main cavity or core plates. They are used to form specific complex features, provide targeted wear resistance, improve cooling, facilitate venting, or allow for easier modification or replacement.

Instead of machining the entire cavity or core shape from one solid block of steel, toolmakers often create pockets in the main plates and fit precisely machined inserts into them. This approach offers several advantages:

• ### Complexity: Very intricate details or difficult-to-machine features can be created more easily on a smaller, separate insert rather than deep inside a large mold block. This is especially true for features requiring EDM.
• ### Material Optimization: You can use a standard steel for the main mold base and a higher-grade, harder, or more wear-resistant steel specifically for the insert in a high-wear area (like a gate area). Similarly, materials with high thermal conductivity (like beryllium copper alloys) can be used as inserts to improve cooling in localized hot spots.
• ### Replaceability & Maintenance: If a specific feature is prone to wear or damage, making it an insert allows it to be replaced relatively easily without remaking the entire cavity or core block. This simplifies maintenance and reduces downtime.
• ### Design Changes: If a specific feature might need modification later, designing it as an insert can make future changes less expensive and faster.
• ### Venting: Inserts can sometimes be designed with tiny gaps (vents) around their edges where they meet the main plate, providing a path for trapped air to escape the cavity during injection.
  Inserts must be manufactured with very high precision to fit perfectly into their pockets, preventing plastic leakage and ensuring accurate part dimensions. They add some complexity to the mold build but often provide significant benefits in terms of manufacturability, performance, and maintainability. CKMOLD often utilizes inserts strategically to optimize mold performance and longevity.

  What are the Nozzle and Sprue Bushing in a Mold?

  How does the molten plastic actually get from the injection molding machine into the mold itself? This crucial transition happens through a specific interface involving the machine nozzle and the mold’s sprue bushing.

The machine nozzle delivers molten plastic under pressure, seating against the sprue bushing—a hardened steel insert in the mold’s A-plate. The sprue bushing has a conical channel (the sprue) that guides the plastic from the nozzle into the mold’s runner system.

This is the very first point of entry for the plastic into the mold. The injection molding machine has a heated nozzle at the end of its barrel. During injection, this nozzle pushes forward and seals tightly against the sprue bushing on the stationary (A-side) half of the mold. The sprue bushing is typically a separate, hardened component fitted into the mold base. It has a precisely machined concave spherical radius on its face to perfectly match the convex radius of the machine nozzle tip, ensuring a leak-proof seal under high pressure. Internally, the sprue bushing features a tapered channel called the sprue. Molten plastic flows from the machine nozzle, through the sprue, and then into the runner system which distributes it to the cavity or cavities. The sprue itself forms a piece of solid plastic (also called the sprue) attached to the runner after molding, which is usually removed and recycled (in cold runner systems). The sprue bushing must be made of hardened steel to withstand the repeated impact and pressure from the nozzle and the erosive flow of molten plastic. Ensuring the nozzle orifice aligns correctly with the sprue opening and that the radii match is critical for preventing leakage and ensuring efficient plastic flow. We always verify these details at CKMOLD when setting up a mold for production.

How Does the Runner System Work?

Once plastic enters through the sprue, how does it reach the actual part cavity, especially if there are multiple cavities? The runner system acts as the distribution network within the mold.

The runner system is a network of channels machined into the mold plates (usually starting from the sprue) that directs the molten plastic flow to the gate(s) of the part cavity (or cavities). It ensures cavities are filled efficiently and, ideally, simultaneously.

Think of the runner system like the arteries delivering blood. After passing through the sprue, the plastic flows through these carefully designed channels. The goal is to fill the part cavity completely and uniformly before the plastic cools and solidifies. Key aspects include:

• ### Layout: Runners need to be designed to minimize pressure drop and fill time. In multi-cavity molds, the runner layout is often "balanced," meaning the flow path distance, turns, and channel size are designed so that all cavities fill at the same rate and pressure. Common layouts include H-bridge, star, or ladder patterns.
• ### Types:
  • Cold Runner: Channels are machined directly into the mold plates. The plastic in the runner cools and solidifies with the part and is ejected along with it, creating waste (which is often reground and reused). Simpler and cheaper to build.
  • Hot Runner: Uses a heated manifold system with heated nozzles that keep the plastic molten all the way to the cavity gate. No runner scrap is produced, saving material and often allowing faster cycles. More complex and expensive upfront, but often more cost-effective for high-volume production, especially with expensive materials.
• ### Gates: The gate is the small opening where the runner meets the part cavity. Its design (size, shape, location) is critical as it affects filling, packing, cooling, and the cosmetic mark left on the part after runner removal. Common gate types include edge gates, fan gates, pin gates, submarine (tunnel) gates, and valve gates (used with hot runners).
  Designing an efficient runner system, whether cold or hot, is crucial for part quality and molding efficiency. CKMOLD uses flow simulation software and practical experience to optimize runner and gate designs for client projects.

  What is the Role of Ejector Pins?

  Once the plastic part has cooled and solidified inside the closed mold, how does it actually get out? The ejector system, primarily using ejector pins, is responsible for safely removing the part.
  Ejector pins are hardened steel pins mounted in an ejector plate assembly housed behind the core (B-side) plate. When activated (usually hydraulically or mechanically by the machine), the assembly moves forward, pushing the pins against the part to release it from the core.

  After the mold opens, the plastic part typically sticks to the core half. The ejector system provides the force needed to overcome this adhesion and any vacuum forces. Here’s how it generally works:

• ### Ejector Assembly: This consists of an ejector plate and an ejector retainer plate holding the heads of the ejector pins. This assembly sits within the ejector housing (or ejector box) part of the mold base and can slide forward and backward. Return pins ensure the assembly retracts fully when the mold closes.
• ### Ejector Pins: These are the most common element. They are round pins that pass through holes in the core plate(s) and push directly against the solidified plastic part. Their size, number, and placement are critical – they need to push on strong areas of the part (like ribs or bosses) without causing damage (like stress marks or punctures) and distribute the ejection force evenly.
• ### Other Ejector Types: Sometimes, flat ejector blades are used for narrow ribs, or ejector sleeves (hollow pins) are used around core pins to eject circular bosses cleanly. Lifters, as discussed earlier, also contribute to ejection by moving with the ejector system. Air ejection (using compressed air) is another method sometimes used.
• ### Activation: The molding machine typically actuates the ejector system forward after the mold is fully open. The stroke length must be sufficient to push the part completely clear of the core.
  Proper ejector system design ensures reliable and damage-free part removal, which is essential for consistent production. CKMOLD carefully considers ejection strategies during the mold design phase.

  Why is the Cooling System So Critical?

  Why does controlling the mold temperature matter so much in injection molding? The cooling system plays a vital role in determining cycle time, part quality, and dimensional stability.

The cooling system consists of channels drilled through the mold plates (cavity, core, and sometimes sliders). A temperature-controlled fluid (usually water) circulates through these channels to remove heat from the molten plastic, allowing it to solidify consistently and quickly.

Injecting molten plastic (often at 200-300°C or 400-600°F) into a steel mold requires efficient heat removal. The cooling phase is often the longest part of the injection molding cycle. An effective cooling system is crucial for:

• ### Cycle Time: The faster the plastic can cool to a solid state where it can be ejected without deforming, the shorter the overall cycle time and the higher the production output. Efficient cooling = lower cost per part.
• ### Part Quality: Uniform cooling across the part prevents issues like warping (uneven shrinkage), sink marks (depressions caused by localized slow cooling), and residual stress. Consistent mold temperature control leads to consistent part quality.
• ### Dimensional Stability: Predictable and uniform cooling ensures the part shrinks consistently and meets the required dimensional tolerances. Hot spots or uneven cooling lead to unpredictable dimensions.
• ### Implementation: Cooling channels are strategically drilled through the mold plates, following the contours of the cavity and core where possible. Connections for hoses are made via threaded fittings on the outside of the mold base. Techniques like baffles (forcing water flow down and back up a single channel) and bubblers (using a tube within a channel to direct water to a specific point) are used to target cooling in specific areas, especially deep cores or isolated features. Sometimes, high-conductivity inserts (like copper alloys) are used to pull heat away from tricky spots.
  Designing an effective cooling layout requires balancing efficient heat removal with the complexity and cost of machining the channels. CKMOLD analyzes thermal requirements to design cooling systems that optimize cycle time and ensure part quality.

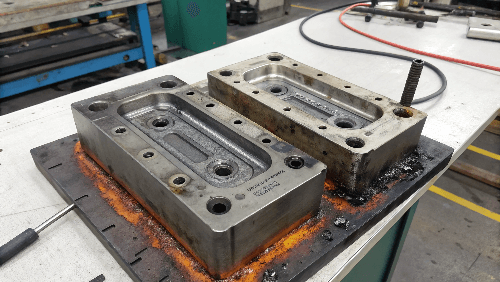

  What is the Purpose of the Venting System?

  Ever seen burn marks or incomplete filling on a molded part? This can often be caused by trapped air within the mold cavity, highlighting the need for proper venting.

The venting system provides pathways for the air trapped inside the mold cavity to escape as molten plastic rushes in. These vents are typically very shallow channels (0.005-0.03 mm deep) ground onto the parting line surfaces or around ejector pins, allowing air out but not plastic.

When molten plastic is injected rapidly into the closed mold cavity, the air already occupying that space needs somewhere to go. If it cannot escape quickly enough, it gets compressed and superheated by the incoming plastic. This can lead to several problems:

• ### Short Shots/Incomplete Fill: The trapped air pressure prevents the plastic from filling the cavity completely, especially in thin sections or areas far from the gate.
• ### Burn Marks: The superheated, compressed air can actually scorch the plastic material, leaving brown or black marks on the part surface (diesel effect).
• ### Poor Surface Finish: Trapped air can interfere with the plastic fully replicating the mold surface texture.
• ### Increased Injection Pressure: The machine has to work harder to overcome the back pressure from the trapped air.
  Vents are essentially tiny escape routes for this air. They are usually located at the areas of the cavity that fill last and along the parting line. They must be shallow enough to let air (a gas) escape but too shallow for the viscous molten plastic to flow into and clog them. Common venting locations include the main parting line, around ejector pins (which naturally have some clearance), and sometimes through porous mold inserts. Effective venting is crucial for achieving complete filling, good surface finish, and preventing defects. It’s often an iterative process, sometimes requiring adjustments after initial mold trials. At CKMOLD, we design vents based on experience and flow simulation predictions to ensure air escapes efficiently.

  How Do Mold Interlocks Ensure Alignment?

  With the two halves of a mold closing under high pressure thousands of times, how is precise alignment maintained beyond the main guide pins? Mold interlocks provide fine-tuned, robust alignment.

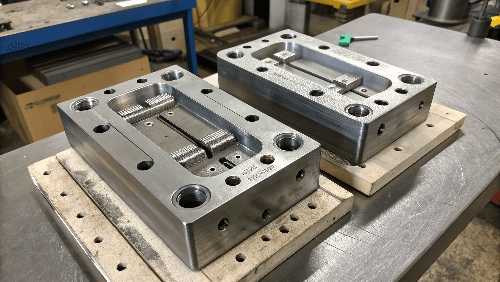

  Mold interlocks are precision-machined features, typically hardened steel blocks or tapers (male and female), located at the corners or sides of the cavity and core inserts or plates. They engage just before final closing to ensure exact alignment between the mold halves, protecting the parting line and shut-off surfaces.

  While the main leader pins and bushings (Guiding System) provide the initial coarse alignment as the mold closes, interlocks provide the final, highly accurate positioning, especially under load. They are critical for several reasons:

• ### Precise Alignment: They ensure the cavity and core halves line up perfectly (often within microns), which is essential for maintaining part tolerances and preventing mismatch or flash at the parting line.
• ### Protection: They protect the delicate shut-off edges of the cavity and core from damage that could occur if the halves shifted slightly under clamping force or during closure. This is especially important for molds with complex parting lines.
• ### Load Bearing: They can help absorb some of the side thrust forces that might occur during injection, further stabilizing the mold halves.
• ### Types: Common types include rectangular interlocks (offering alignment in two directions) and tapered or conical interlocks (providing alignment in all horizontal directions as the tapers wedge together). They are usually made from hardened tool steel for wear resistance.
• ### Placement: Interlocks are typically placed near the corners of the mold inserts or main plates, outside the part cavity area. Their engagement happens in the last fraction of mold closing movement.
  For high-precision molds or molds with complex parting lines, robust interlocks are essential for longevity and consistent part quality. CKMOLD incorporates appropriate interlock designs based on the mold’s complexity and precision requirements.

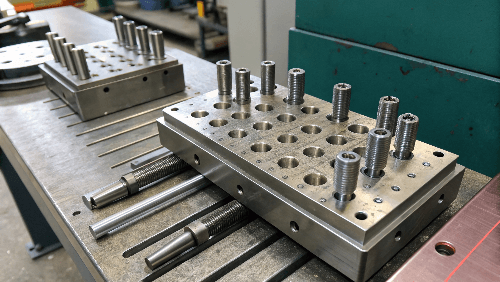

  What is the Function of the Guiding System?

  How do the two large, heavy halves of an injection mold slide together smoothly and accurately during opening and closing? The guiding system, primarily leader pins and bushings, handles this essential task.

The guiding system, consisting mainly of hardened steel leader pins (on one mold half) sliding into precision bushings (on the other half), ensures the smooth, parallel alignment of the two mold halves during opening and closing. It prevents binding and protects the core and cavity from damage.

This system is fundamental to the mold base structure and operation. Its primary components are:

• ### Leader Pins: These are robust, hardened, and precision-ground steel pins, typically mounted on the B-side (moving half) of the mold base, although configurations can vary. They are usually located near the corners of the mold base.
• ### Bushings: These are hardened steel sleeves, precisely fitted into the opposite mold half (typically the A-side). They have an internal diameter that perfectly matches the leader pins, often with slight lubrication grooves.
• ### Function: As the molding machine closes the mold, the leader pins enter the bushings before the cavity and core details fully engage. This ensures the two halves are brought together parallel to each other, preventing racking or misalignment that could damage the finely detailed cavity, core, or interlocks. They guide the mold throughout the opening and closing stroke.
• ### Importance: A well-functioning guiding system ensures smooth operation, reduces wear on other mold components, and is the first line of defense in maintaining overall alignment. Worn pins or bushings can lead to problems like flash, part mismatch, and premature failure of other components. Regular lubrication is important for their longevity.
  The guiding system is a standard but critical part of every mold base, providing the foundational alignment needed for the entire mold to function correctly. CKMOLD ensures high-quality guiding components are used in the molds we build.

  What are Common Materials for Injection Mold Components?

  What kinds of metals are actually used to build these complex injection molds? The choice depends heavily on the specific component, required lifespan, plastic material being molded, and budget.

Common materials include various grades of tool steel (P20, H13, S7, S136/420SS) for cavities, cores, and inserts due to hardness and wear needs. Mold bases often use medium-carbon steel (1045/S50C), while guide pins/bushings use hardened bearing steels.

At CKMOLD, we select materials based on a thorough analysis of the project requirements – expected production volume, plastic material properties, part complexity, and budget – to ensure the mold delivers optimal performance and value.

Conclusion

Understanding these core components – the base, cavity, core, runner, ejector, cooling, venting, guiding, and support systems – demystifies the injection mold. Knowing their functions helps designers like Jacky create better, more moldable parts and communicate clearly with manufacturers like CKMOLD.
