Why is Accurately Calculating and Compensating for Injection Mold Shrinkage So Critical?

Struggling with parts that don’t fit? Shrinkage often causes these headaches. Ignoring it leads to costly rework and scrap for everyone involved.

Accurately calculating shrinkage involves using material data, empirical formulas, and sometimes software simulations. Compensating means designing the mold cavity larger than the final part, based on these calculations, to ensure dimensional accuracy after cooling1.

We all know plastic shrinks when it cools. This is a fundamental property of polymers2. But understanding exactly how much it will shrink, why it shrinks differently under various conditions, and what we, as designers and molders, must do about it is absolutely key to producing successful injection molded parts. If we don’t get this right, the parts simply won’t meet the specifications. This can mean failed assemblies, unhappy clients, and significant financial losses. Before we get into the deep calculations and control methods, it’s useful to understand the basics of how we even begin to estimate this critical factor, which ultimately affects the steel dimensions of the mold.


How Do You Actually Calculate Shrinkage for an Injection Mold?

Unsure how to predict plastic shrinkage for your mold design? Just guessing or using a generic value often leads to out-of-spec parts and expensive tool modifications later. You need a reliable method for accurate calculations from the start.
Calculate shrinkage using the material supplier’s data (shrinkage rate S), the desired part dimension (Lp), and the formula: Mold Cavity Dimension (Lm) = Lp / (1 – S). For more complex parts, consider weighted averages or advanced simulation software for better accuracy.

Calculating shrinkage isn’t black magic, but it does require careful attention to detail and understanding the right inputs. The most basic approach starts with a simple formula.

  • Basic Shrinkage Formula

    The fundamental formula I use is:
    Lm = Lp / (1 - S)
    Where:

    • Lm = Dimension of the mold cavity.
    • Lp = Desired dimension of the final part.
    • S = Shrinkage rate of the plastic material (expressed as a decimal, e.g., 2% = 0.02).
      For example, if a part needs to be 100mm long (Lp = 100mm) and the material shrinkage is 2% (S = 0.02), then the mold cavity dimension would be:
      Lm = 100mm / (1 - 0.02) = 100mm / 0.98 = 102.04mm.
      You’ll sometimes see a simplified version Lm = Lp * (1 + S), which for 2% would give 100mm * 1.02 = 102mm. The first formula is more mathematically precise, especially for higher shrinkage rates, but for small percentages, the difference is often minor. I always prefer the more precise one.
  • Where to Get Shrinkage Data

    Material datasheets provided by the resin supplier are the primary source. These usually give a shrinkage value or a range (e.g., 0.015 – 0.025 mm/mm or in/in). It’s vital to look at the specific grade of material you intend to use. For instance, Polypropylene (PP) as a general material type has a shrinkage range, but a specific PP grade with 20% glass fiber fill will have a very different, and usually lower, shrinkage value. Amorphous materials like ABS or Polycarbonate generally have lower and more uniform shrinkage compared to semi-crystalline materials like Nylon or PP, which tend to shrink more and can be more variable. Crystalline materials also show a more pronounced difference between flow and cross-flow shrinkage.

  • Factors Influencing the Rate

    The datasheet value is a starting point. Many factors influence the actual shrinkage: Factor Influence on Shrinkage
    Material Type Crystalline (e.g., PP, PE, Nylon) shrink more than Amorphous (e.g., ABS, PC).
    Wall Thickness Thicker sections generally shrink more and take longer to cool.
    Fillers/Additives Glass fibers typically reduce overall shrinkage but make it anisotropic.
    Mold Temperature Higher mold temp often allows more complete shrinkage (slower cooling).
    Melt Temperature Higher melt temp usually means more shrinkage.
    Packing Pressure Higher packing pressure forces more material in, reducing net shrinkage.
    Gate Size/Location Affects how well packing pressure is transmitted through the part.
  • Differential Shrinkage (Anisotropy)

    For materials filled with fibers (like glass-filled Nylon), shrinkage will be different in the direction of polymer flow versus perpendicular to it. Fibers tend to align with the flow, restricting shrinkage in that direction. This means the part might shrink, say, 0.5% along the flow path but 1.5% across it. This differential shrinkage is a primary cause of warpage. Understanding this is crucial. I’ve seen perfectly good designs warp badly because anisotropic shrinkage wasn’t accounted for in the mold design. Moldflow simulation software is invaluable here for predicting these effects.

    What Steps Are Taken to Compensate for Shrinkage When Molding Parts?

    Knowing the shrinkage rate3 is one thing, but how do you actually apply that knowledge to the mold design? Simply making the entire mold cavity bigger by a single percentage isn’t always enough, especially with intricate geometries or materials prone to uneven shrinkage.

To compensate, designers make mold cavities dimensionally larger than the desired final part dimensions by the calculated shrinkage rate. This is "scaling up" the part design in CAD. For complex parts, different shrinkage rates might be applied to different features or directions.


CAD model showing mold cavity scaled for shrinkage
Once I have an estimated shrinkage value (or values), the next step is to incorporate this into the mold design. This is a critical stage where the theoretical calculation meets practical toolmaking.

  • Applying the Shrinkage Factor in CAD

    Most modern 3D CAD software (like SolidWorks, CATIA, or Siemens NX, which I use regularly) has a "scale" feature. We take the 3D model of the final part and scale it up by the determined shrinkage factor. If the shrinkage is 2% (factor 0.02), we scale the part model by 1/(1-0.02) = 1.0204, or more simply, by a factor of 1.02 if we use the Lp*(1+S) approximation. This scaled-up model then becomes the basis for designing the mold cavity.

    • Uniform vs. Non-Uniform Scaling: For a simple, small part made from an unfilled amorphous material like general-purpose Polystyrene, a single, uniform scaling factor applied in all directions (X, Y, and Z) might be sufficient. However, for many engineering parts, especially those made from semi-crystalline or fiber-filled materials, non-uniform scaling is essential. I remember a project for an automotive client involving a long, thin bracket made from 30% glass-filled Nylon. The material datasheet provided flow and cross-flow shrinkage values. We had to apply a smaller shrinkage factor along the length (flow direction) and a larger factor across the width and thickness. If we had used a single average value, the mounting holes would have been significantly misplaced.
  • The Iterative Process and Designing "Steel Safe"

    Even with the best calculations and simulations, the first parts molded (often called T0 or T1 samples) might not be perfectly to spec. This is where the concept of designing "steel safe" (or "metal safe") comes in. It means you design the mold cavity expecting the initial parts to be slightly larger than the target dimension. Why? Because it’s much easier and cheaper to remove steel from the mold (to make the cavity slightly bigger, which in turn makes the resulting part smaller if it’s oversized) than it is to add steel (which usually involves welding and re-machining, a costly and time-consuming process if the part comes out too small). So, I often apply a slightly lower shrinkage rate initially, aiming for a part that’s at the high end of its tolerance or a bit over. I once had a project where a critical snap-fit feature was involved. We deliberately made the cavity side for that snap slightly undersized (meaning the plastic snap would be oversized and too tight). After the first trial, we measured the engagement force and then carefully machined away a tiny amount of steel to bring it into perfect specification. This "creep up on the dimension" approach saved a lot of potential headaches.

  • Using Core/Cavity Inserts for Critical Dimensions

    For very critical dimensions, or areas that are known to be tricky for shrinkage, or features that might wear over time, designers often use inserts in the mold. These are separate pieces of steel that form specific features of the part and are then assembled into the main mold base. If an adjustment is needed for shrinkage compensation after trials, it’s much easier and more cost-effective to remake or modify a small insert than to rework a large, complex mold block. This is standard practice in high-precision molding.

  • Summary of Compensation Steps: Compensation Step Description Why it’s Important
    Initial Calculation Use material data, formulas, or simulation to estimate shrinkage. Provides a starting point for mold design.
    CAD Scaling Apply shrinkage factor(s) to the part model to create cavity geometry. Directly creates the "larger" mold geometry.
    Steel Safe Design Intentionally aim for a slightly oversized part initially if dimensions allow. Allows easier adjustment by removing steel from mold.
    First Article Inspection Measure initial parts thoroughly against all specifications. Verifies actual shrinkage and part dimensional accuracy.
    Tool Adjustments Systematically modify mold steel based on FAI results and priorities. Fine-tunes the mold to achieve desired dimensions.

    How Can You Effectively Control Shrinkage During Injection Molding?

    Even with a perfectly calculated mold, process variations during production can wreak havoc on part dimensions. Inconsistent shrinkage leads to inconsistent parts, which is a major quality concern for any molder or product designer.

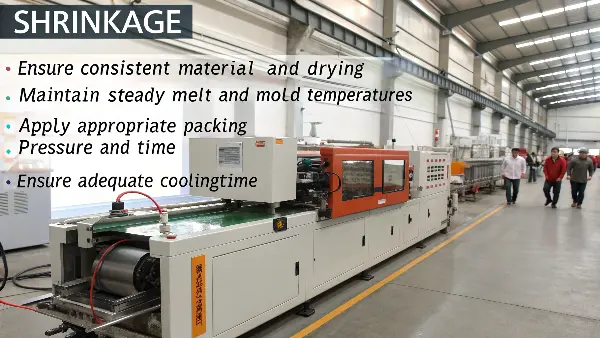

Control shrinkage by meticulously optimizing and stabilizing molding parameters: ensure consistent material (including drying), maintain steady melt/mold temperatures, apply appropriate packing pressure/time, and ensure adequate, consistent cooling time. Good part design (uniform wall thickness) and mold design (proper gating/venting) are also crucial for stable shrinkage.

Injection molding machine control panel
Once the mold is built with shrinkage compensation, the job isn’t over. Controlling shrinkage on the shop floor during the actual injection molding process is vital for part consistency. I’ve seen many situations where a well-designed mold produced inconsistent parts because the process wasn’t dialed in or wasn’t stable.

  • Process Parameter Optimization: This is key.

    • Melt Temperature: Higher melt temperatures generally lead to more potential shrinkage because the plastic has a greater temperature range to cool through. More importantly, this temperature must be consistent. Variations in melt temp from shot to shot will directly cause variations in shrinkage.
    • Mold Temperature: This is a powerful tool. A warmer mold generally allows for more complete shrinkage to occur in the mold, potentially leading to less post-mold shrinkage and lower internal stresses. A colder mold can "freeze" the outer skin quickly, sometimes reducing apparent shrinkage but possibly increasing stress. Uniformity of mold temperature across the cavity and core is also critical to prevent warpage.
    • Packing Pressure & Time (Hold Pressure & Time): This is one of the most significant factors. After the cavity is mostly filled, packing pressure is applied to force more material into the cavity to compensate for the volumetric shrinkage as the plastic cools and solidifies. Higher packing pressure generally reduces shrinkage. The packing time must be long enough for the gate to freeze, sealing the cavity before pressure is removed. If packing is insufficient, you’ll see sinks or voids. I always tell my team: "Pack it out, but don’t overpack!" Overpacking can cause flash or stick parts.
    • Cooling Time: The part needs enough time in the closed mold to cool sufficiently so that it’s rigid enough to be ejected without distortion and so that most of the shrinkage has occurred in a controlled manner. Too short a cooling time can lead to excessive post-mold shrinkage or warpage.
    • Injection Speed: While not a primary shrinkage control, injection speed affects shear heating, molecular orientation, and filling patterns, which can indirectly influence how the material shrinks.
  • Material Consistency and Preparation

    • Resin Batch-to-Batch: Always try to use the same grade from the same supplier. Even different batches of the same material can have slight variations in Melt Flow Index (MFI) or filler content, which can affect shrinkage.
    • Drying Hygroscopic Materials: Materials like Nylon, PC, PET, ABS, and PBT absorb moisture from the air. If not dried properly before molding, this moisture turns to steam in the barrel, acting as a plasticizer, affecting viscosity, and often leading to increased or inconsistent shrinkage, splay marks, or brittleness. I can’t stress enough the importance of proper drying to the manufacturer’s specification.
  • Part and Mold Design Factors (Beyond initial compensation)

    • Uniform Wall Thickness: This is a golden rule in part design. Drastic variations in wall thickness lead to differential cooling rates and thus differential shrinkage, which is a prime cause of warpage and sink marks.
    • Gate Location & Size: These should be designed to allow uniform filling and efficient transmission of packing pressure throughout the cavity. Ideally, gates are placed in the thickest section of the part if possible.
    • Venting: Adequate vents in the mold allow trapped air and gases to escape as the plastic fills the cavity. If air is trapped, it prevents complete filling and proper packing, leading to short shots or inconsistent shrinkage.
  • Controlling Shrinkage: Key Areas Control Factor How to Optimize for Minimized/Consistent Shrinkage Impact if Not Controlled Properly
    Melt Temperature Keep consistent and within material supplier’s recommended range. Monitor barrel zones. Variable shrinkage, material degradation.
    Mold Temperature Maintain uniform and stable temperature across mold halves. Use temperature controllers. Warpage, internal stress, dimensional inconsistency.
    Packing Pressure/Time Optimize to fill out part and compensate for volumetric shrinkage; ensure gate freeze-off. Sinks, voids, short shots, flash if too high.
    Cooling Time Ensure part is stable and adequately cooled before ejection. Warpage, excessive post-mold shrinkage.
    Material Handling Proper drying according to specs, use consistent batches, avoid contamination. Inconsistent shrinkage, voids, splay, brittleness.
    Part Design Aim for uniform wall thickness; generous radii instead of sharp corners. Built-in warpage, sinks, stress concentrations.

    It’s a holistic approach. As someone who has been through many mold trials, I know that achieving consistent, low-shrinkage parts is a team effort involving the part designer, mold designer, and the process technician.

    Conclusion

    Effectively managing injection mold shrinkage is a cornerstone of successful plastics manufacturing. It involves careful calculation, thoughtful mold design compensation, and diligent process control. By mastering these aspects, we can consistently produce high-quality, dimensionally accurate parts that meet even the most demanding project requirements.


  1. This link will provide valuable techniques to maintain dimensional accuracy, crucial for successful injection molding.

  2. Understanding this property is essential for anyone involved in polymer design and processing, enhancing your knowledge in the field.

  3. Understanding the shrinkage rate is crucial for accurate mold design, ensuring the final product meets specifications. Explore this link for in-depth insights.
