Choose mold-base steel by the plate function, support geometry, operating exposure and specified delivery condition. Specify cavity, core and replaceable wear components separately; a harder base does not automatically reduce elastic deflection.
Medium-carbon and prehardened alloy steels are candidates for structural plates. Compare the exact producer grade and supply condition, then select forming and wear components for the resin, surface finish, toughness and service demands. Similar steel names are not approval for substitution.
Separate the mold-base specification from the requirements of cavity, core and wear components. Review the actual plate geometry, support, load, corrosion exposure and specified steel condition before comparing material options.
What Steel Do We Typically Use for the Mold Base Itself?
It’s easy to get lost in steel designations, right? You hear about H13, S136, P20… but do all these apply to the main structure, the mold base plates? Using super-hard tool steel for the entire base would be incredibly expensive and difficult to machine. So, what’s actually used?
Mold base plates (like the A-plate, B-plate, support plates) are typically made from medium-carbon steels such as S50C (Japan standard) or AISI 1045/1050 (US standard). For higher requirements, pre-hardened P20 steel is also a common choice for base plates, offering more strength.
The key is understanding the function of the mold base plates versus the cavity and core inserts. The base plates provide the main structural support for the mold. They hold everything together, align the two halves, contain the ejector system, and provide mounting points for the machine. Their primary requirements are:
- Sufficient Strength and Rigidity: To withstand clamping forces and injection pressures without significant deflection. Deflection leads to flash and dimensional instability.
- Good Machinability: Base plates need extensive machining for pockets to house inserts, channels for cooling, holes for leader pins, bushings, ejector pins, bolts, etc. Ease of machining keeps costs down.
- Dimensional Stability: The material should remain stable after machining and during operation.
-
Cost-Effectiveness: Since base plates make up a large volume of the mold, using an economical material is important.
This contrasts sharply with cavity and core inserts, which directly shape the plastic. Their needs focus on:
- High Hardness and Wear Resistance: To withstand the abrasion and pressure of flowing plastic over many cycles.
- Good Polishability: For achieving the desired surface finish on the part.
- Corrosion Resistance: Especially important for certain plastics like PVC.
Thermal Conductivity: To facilitate efficient cooling.
Because these requirements differ significantly, we use different steels:
| Feature | Mold Base Plates (e.g., S50C, P20) | Cavity/Core Inserts (e.g., H13, S136) |
|---|---|---|
| Primary Role | Structural Support, Housing | Shaping Plastic, Wear Surface |
| Key Needs | Strength, Machinability, Cost | Hardness, Wear Resistance, Polishability |
| Typical Steel | Medium Carbon, Pre-Hardened Alloy | Tool Steel (often requires hardening) |
| Hardness | Specify the grade, test scale and certified delivery condition. | Specify working hardness and heat treatment for the chosen insert grade and duty. |
Specifying a hardenable cavity steel for every base plate can add machining, heat-treatment and dimensional-control work without addressing the actual structural requirement. Compare component function and supply condition before selecting the grade.
S50C and Equivalents: The Standard Choice for Mold Bases?
You need a reliable, cost-effective material for the bulk of your mold structure, don’t you? Using specialized, expensive steels for standard base plates often doesn’t make economic sense if a more common grade works perfectly well. So, what’s the go-to option?
S50C and related medium-carbon grade designations such as AISI/SAE 1045 or 1050 and C45/C50 are medium-carbon steels commonly used for standard mold bases. They offer a good balance of strength, toughness, excellent machinability, and cost-effectiveness, making them ideal for the structural components of many molds.

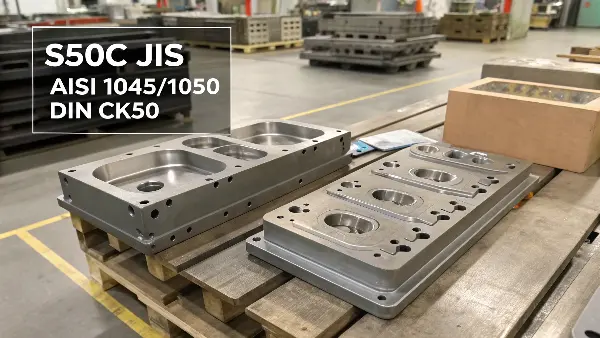

Illustration only. The labels are not material certificates or proof that the listed grades are interchangeable; use the approved specification and traceable material record.
Think of S50C and its close relatives as the workhorses of the mold base world. Let’s break down why they are so frequently used:
- Composition and supply condition: S50C, S55C, 1045, 1050 and C45/C50 have different governing specifications. Check the producer certificate, chemistry, delivery condition and section size. Do not accept them as identical grades or treat a low-range HRC reading and an HB value as interchangeable acceptance criteria.
- Excellent Machinability: This is a major advantage. Mold bases require significant milling, drilling, tapping, and grinding to create pockets for inserts, cooling lines, ejector pin holes, guide pin holes, etc. The ease with which S50C/1045 can be machined translates directly into faster production times and lower manufacturing costs.
- Cost-Effectiveness: Compared to alloy tool steels, these carbon steels are significantly less expensive. Since the base plates constitute a large portion of the mold’s weight and volume, using a cost-effective material here helps manage the overall mold budget effectively.
Equivalents: Steel standards vary globally. The following are related grade families, not automatic substitutions. Compare the governing standard, chemistry, delivery condition, section size and required properties before approving a replacement:
| Standard | Common Grade(s) | Notes |
|---|---|---|
| JIS | S50C, S55C | Japanese Standard |
| AISI/SAE | 1045, 1050 | US Standard |
| DIN | C45, CK45, C50 | German Standard |
| GB | 45#, 50# | Chinese Standard |
-
Limitations: While great for general purposes, S50C/1045 isn’t intended for high-wear surfaces or direct forming of plastic parts (unless it’s a very low-volume prototype). Its hardness isn’t sufficient for long production runs against abrasive plastics, and it won’t hold a high polish like dedicated cavity steels. Its strength is good, but for very large bases or extremely high injection pressures, deflection might become a concern, requiring a review of plate geometry, supports and the specified material properties.
In summary, S50C and related, separately approved grades can provide the reliable, machinable, and affordable foundation needed for a vast majority of injection mold bases.
When Should You Consider Upgrading to P20 Steel for Your Mold Base?
While standard carbon steel works for many bases, sometimes you need something more robust, right? Perhaps the mold is very large, will endure long production runs, or handles higher injection pressures. Simply sticking with S50C might risk deflection or wear over time. When does it pay to upgrade the base material?
Consider upgrading to P20 steel for mold base plates when you need appropriate strength and wear properties (e.g., for large molds, high pressures), better wear resistance for longer mold life, or if simple forming features or runner gates are machined directly into the base plates.

The image does not establish the plate grade or CKMOLD equipment capability. Higher hardness is not proof of higher elastic rigidity; check modulus, plate section and support geometry as described below.
P20 is a very common and versatile mold steel, often used for cavities and cores in medium-volume molds, but it also finds significant use in mold bases, particularly the main A and B plates (cavity and core retainer plates). Here’s why and when you’d choose it over S50C/1045 for the base:
- What is P20? P20 is a chromium-molybdenum mold-steel designation commonly offered in prehardened conditions. Obtain the actual supplier specification and hardness range. Confirm any stress-relief, heat-treatment or surface-treatment requirements with the producer and toolmaker.
- Increased Strength and Rigidity: P20 in a specified prehardened condition can offer different strength and wear properties from a nominated carbon-steel condition. Higher hardness does not by itself establish a large increase in elastic rigidity; compare Young’s modulus and the plate/support geometry separately. This is crucial for very large mold bases where the span between supports is greater, or in molds subjected to high injection pressures. Check elastic plate deflection using the actual modulus, support span, plate thickness, pockets and pressure load. A steel substitution alone does not ensure adequate seal-off or dimensional accuracy. A stronger steel is not a substitute for checking plate deflection and the support arrangement.
- Wear and replaceable components: Compare actual hardness, surface condition, contact loads and lubrication. Guide pins, bushings and interlocks need their own material and fit specification; changing the surrounding plate steel does not automatically improve those components.
- Suitability for Machined Features: If simple runner systems, gates, or even some non-critical forming features are machined directly into the A or B plate (instead of using separate inserts), P20’s better wear resistance makes it a more suitable choice than S50C. It can withstand the flow of plastic better, especially near gate areas.
- Trade-offs: The main drawbacks of using P20 for base plates are increased material cost and slightly more difficult/slower machining compared to S50C/1045. You need to weigh these factors against the performance benefits. Often, it’s a cost-benefit analysis: is the higher initial cost justified by the need for increased strength, longer life, or direct machining of features?
P20 vs. H13: Why Aren’t Cavity Steels Used for the Whole Base?
You might hear P20 mentioned for both bases and cavities, and then hear about H13 primarily for cavities. This can be confusing. If H13 is so good for cavities, why don’t we just use it for the entire mold base for maximum durability? The answer lies in balancing properties, cost, and manufacturability.
P20 is commonly supplied prehardened for machinable structural or forming components. H13 is a hardenable hot-work tool-steel family used where its toughness and thermal properties fit the duty. Compare the nominated products and treatment routes before assigning either to an entire mold base.

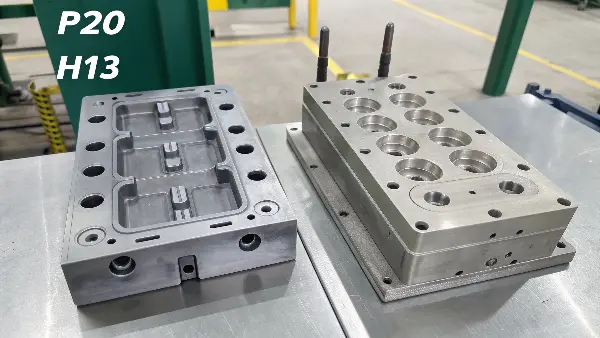

The labels illustrate two steel families; the photograph is not a comparison test or evidence of composition, hardness or heat treatment.
Understanding the fundamental differences between P20 and H13 clarifies why they are used in distinct roles within a mold:
- P20 Deep Dive:
- Type: Pre-hardened alloy steel (Chromium-Molybdenum).
- Hardness: State the exact product and certified delivery range; do not use one generic P20 value as the purchase acceptance criterion.
- Primary Use: Mold bases (especially higher quality), large inserts, medium-wear cavities/cores for moderate production volumes.
- Machinability: Good, significantly easier than fully hardened tool steels.
- Heat Treatment: Generally not required after machining (it’s already pre-hardened). Can be through-hardened further, but less common for base applications.
- Cost: Moderate. More expensive than S50C, less expensive than H13.
- H13 Deep Dive:
- Type: Hot-work tool steel (Chromium-Molybdenum-Vanadium).
- Hardness: For a named example, Uddeholm Orvar Supreme technical data specifies approximately 180 HB in the soft-annealed delivery condition. Working hardness depends on the component and heat-treatment route; it is not a universal 48–52 HRC requirement for all H13 tooling.
- Primary Use: High-wear cavities and cores, components requiring high toughness and heat resistance (die casting dies too).
- Machinability: Relatively easy in the soft state, much more difficult after hardening. Often requires EDM or grinding post-hardening.
- Heat Treatment: Mandatory after machining to achieve desired properties. This process carries risks of distortion or cracking, especially on large, complex parts.
-
Cost: Higher than P20.
Why Not H13 for Bases?
- Cost: H13 material is significantly more expensive than P20 or S50C. Using it for large base plates would drastically increase the mold cost unnecessarily.
- Machinability: While machinable in its soft state, the sheer volume of machining required for a base plate would still be costly. Post-hardening machining is very slow and expensive.
- Heat Treatment: Hardening large, thick base plates uniformly and without distortion is extremely challenging and risky. The potential for warping or cracking is high, potentially ruining the entire plate.
-
Component function: Do not pay for a hot-work steel and its treatment route unless the plate duty requires those properties. Confirm structural adequacy, corrosion exposure, machining and dimensional control separately.
Assign material by function. Forming inserts and local wear components may justify properties that the surrounding base plates do not need. Confirm the selected grade, condition and treatment with the component specification instead of applying a single steel choice to the whole assembly.
So, How Do You Choose the ‘Best’ Steel for Your Specific Mold?
With several options for bases (S50C, P20) and many more for cavities (P20, H13, S136, etc.), how do you make the final call? There isn’t one single ‘best’ steel; it’s about making the most appropriate choice based on the project’s specific needs and constraints. Getting this wrong means either overspending or facing premature failure.
The ‘best’ steel choice involves balancing factors: component type (base vs. cavity), expected production volume/mold life, part material abrasiveness, required surface finish, structural demands (size, pressure), and budget. Match the steel’s properties to these requirements for optimal performance and cost.
Select the base material by reviewing the load, support geometry, machining and maintenance requirements together. Use the actual producer’s grade and supply condition rather than treating a familiar steel label as a complete specification.
Use the component-specific requirements and producer documentation in the text; the illustrated board is not an engineering approval or acceptance specification.
- Identify the Component: Is it a mold base plate (A, B, support, ejector housing) or a cavity/core insert? This is the first and most crucial split.
- Base Plates: Focus on structural integrity, machinability, stability, cost. Main candidates: S50C/1045, P20.
- Cavity/Core Inserts: Focus on wear resistance, hardness, polishability, toughness, corrosion resistance (if needed). Main candidates: P20 (lower volume/wear), H13 (high volume/wear), S136 (corrosion/polish), and other tool steels.
- Estimate Production Volume & Required Mold Life:
- Low Volume / Prototype: S50C base is likely sufficient. Inserts could be P20, aluminum, or even S50C if very low volume.
- Recurring Production: Specify duty, maintenance, steel condition and local wear components. A shot-count band alone does not choose a base or insert grade.
- High Duty: Review replaceable wear components, support, heat treatment and maintenance access. Require the supplier to justify the selected construction against resin and operating loads, not only a lifetime number.
- Consider Part Material: Is the plastic abrasive (e.g., glass-filled nylon)? Or corrosive (e.g., PVC)?
- Abrasive materials: Specify wear resistance at the gates, runners, forming surfaces and other contacted components. Compare filler, contact mechanism, toughness, treatment and replaceability; filled resin alone does not prescribe a P20 base plate.
- Corrosive conditions: Review resin decomposition products, moisture, coolant and cleaning chemicals. Select corrosion-resistant grades or suitable protection for the exposed components; the base and water circuits also require review.
- Evaluate Structural Demands:
- Large Mold Base Size: Increases risk of deflection. Check support layout, section stiffness and the actual elastic modulus; do not infer substantially lower deflection from P20 hardness alone.
- High Cavity Pressure: Check the resulting load, support span and plate stiffness; pressure alone does not prescribe a P20 base.
- Define Surface Finish Requirements:
- High Polish / Optical: Requires specific insert steels (e.g., S136, NAK80) capable of achieving and holding a mirror finish. Base material doesn’t directly impact part finish.
- Factor in the Budget: There’s always a cost trade-off.
- S50C Base < P20 Base
- For a consumer-electronics tool, distinguish the forming surfaces from structural plates, and compare the resin, dimensional requirements and expected duty. A simpler industrial part may have different finish and wear needs. Review component certificates and structural calculations with the mold maker.
Separate Elastic Deflection, Strength and Wear in the Mold-Base Review
These are three different checks. Elastic stiffness depends on material modulus and geometry; strength concerns yielding or failure; wear concerns contact surfaces and operating conditions. In a simplified rectangular beam with the same load, span and width, bending stiffness scales with E × thickness cubed. Increasing thickness by 20% gives 1.728 times the section stiffness before pocket, support and three-dimensional effects are considered. This is an illustrative comparison, not a mold-plate design calculation.
Specify plate dimensions and pockets, unsupported spans, support pillars, cavity-pressure loading, assembly preload, delivery condition and material certification. Assess elastic deflection and strength separately. MISUMI’s mold-rigidity tutorial explains the role of E × I; a harder steel name is not a substitute for that review.
What Should a Mold-Base Quotation Identify?
Request component-level steel designation, supplier/standard, delivery hardness, plate and support layout, critical fits and the substitution approval process. Keep base support design distinct from cavity and core steel selection. Send the mold-base requirements for engineering review and email the assembly and machine-interface drawings to jerry@ckmold.com.
Conclusion
Specify the base and forming components separately. Approve the producer grade, supply condition, structural checks, wear and corrosion controls, and substitution process before ordering. Compare cost only after those requirements are defined.
A Steel Substitution Requires More Than a Cross-Reference
Before accepting a substitute, compare producer designation, governing standard, delivery hardness, heat-treatment route, section size, machinability, corrosion exposure and certificate traceability. Record who approves the substitution and whether dimensions must be rechecked after heat treatment.
Uddeholm Holder is described with a defined prehardened supply condition; that is the kind of detail a purchase order should retain. For commercial comparison after the technical decision, use the mold-base cost review.
