Mold Base Maintenance: How Can You Extend the Lifespan of Your Injection Molds?

Molds wearing out prematurely causes costly downtime and quality issues. Don’t let preventable failures¹ derail production. Proactive maintenance saves money and ensures consistent parts over the long haul.

Extend mold life through regular cleaning, proper lubrication of moving parts, detailed inspections for wear or damage, careful handling and storage, and addressing minor issues promptly before they become major failures requiring expensive repairs.

Neglecting maintenance is tempting to save time, but it’s a costly mistake in the long run. I’ve seen it happen too often during my years in the industry, both on the factory floor and running CKMOLD. Understanding why molds wear and how to prevent it is essential for anyone relying on injection molding, like designers such as Jacky who specify these critical tools. Let’s break down how to keep your molds running smoothly for as long as possible.

How Long Should Your Injection Mold Actually Last?

Ever wonder if your mold failed too soon, or if you’re getting good value for your investment? Not knowing the expected lifespan makes budgeting and planning difficult. Understanding standard mold classifications helps set realistic expectations from the start.
Mold lifespan varies greatly based on its SPI Class (e.g., Class 101 for 1 million+ cycles, Class 103 for <100k cycles). This classification dictates materials (hardened vs. softer steels), construction quality, and intended production volume, directly influencing expected operational life.

The Society of the Plastics Industry (SPI) established a classification system that’s widely used to define the expected lifespan and construction quality of injection molds. Knowing these helps everyone – the designer, the mold maker, and the molder – have the same understanding.
Here’s a simplified breakdown:

• ### Class 101: Built for extremely high production volumes, typically exceeding 1 million cycles. These use the highest quality materials: hardened tool steel (like H13) for cavities and cores (usually >48 HRC), and high-quality pre-hardened steel (like P20) or better for the base. Construction includes features for maximum durability like hardened guide pins, bushings, and wear plates. Maintenance is critical but they are built to last.
• ### Class 102: Designed for medium-to-high volume, typically up to 1 million cycles. Similar high-quality materials are often used, maybe with slightly less extensive hardening or fewer wear plates than a 101. Good for long-running projects.
• ### Class 103: Suited for medium production volumes, usually under 500,000 cycles. May use pre-hardened steels like P20 for cavities and cores, and potentially a standard base like S50C/1045. Construction is good but less robust than 101/102. Maintenance is still important.
• ### Class 104: For low production, typically less than 100,000 cycles. Often uses softer steels (P20, S50C) or even aluminum for cavities/cores. Base is usually standard S50C/1045. Construction is simpler.

• ### Class 105: Prototype molds, generally under 500 cycles. Can be made from aluminum, mild steel, or even non-metallic materials. Built quickly and cheaply for concept validation, not production.	SPI Class	Typical Cycles	Cavity/Core Material	Mold Base Material	Notes
  101	> 1,000,000	Hardened Tool Steel (H13)	High-Quality (P20+)	Highest durability, full hardening
  102	< 1,000,000	Hardened Tool Steel	High-Quality (P20+)	High volume, robust construction
  103	< 500,000	Pre-Hardened Steel (P20)	P20 or S50C/1045	Medium volume, good construction
  104	< 100,000	P20, Aluminum, S50C	S50C/1045	Low volume, simpler construction
  105	< 500	Aluminum, Mild Steel etc.	Any suitable	Prototype only

  Understanding this classification helps Jacky specify the right mold class for his project needs, ensuring the tool’s construction aligns with the required production output. Trying to run a Class 104 mold for a million cycles is asking for failure, just as overpaying for a Class 101 for a 10,000-part run is inefficient. The class sets the stage for expected life and maintenance needs.

What Really Causes Your Injection Molds to Wear Out?

Molds don’t last forever, even Class 101 tools, but premature failure is often preventable and always frustrating. Simply running parts isn’t the only stress; many factors combine to cause wear and tear. Identifying these helps you target your maintenance efforts effectively.

Mold life is primarily reduced by abrasive/corrosive plastic resins², high injection pressures/temperatures³, fast cycle times, inadequate cooling⁴, improper handling/storage, incorrect machine setup (e.g., clamp force), lack of cleaning/lubrication, and delayed repairs of minor damage.

Every injection cycle contributes tiny amounts of wear. Over thousands or millions of cycles, this adds up. Several factors accelerate this process:

• ### Plastic Material: This is huge. Resins containing abrasive fillers like glass fibers or minerals act like sandpaper, eroding gates, runners, and cavity surfaces. Corrosive resins like PVC can chemically attack mold steels, especially non-stainless grades. Understanding the resin is step one.
• ### Processing Parameters: Running the mold aggressively takes a toll. High injection pressures and speeds increase erosion, especially at gate areas. High melt temperatures increase thermal stress on the steel. Very fast cycle times mean more frequent mechanical action and can lead to thermal fatigue if cooling isn’t optimal.
• ### Mold Design: Sometimes the design itself contributes to wear. Poor venting can cause gas traps and burning, damaging the steel surface. Inadequate cooling can lead to uneven temperatures, causing stress and potentially warpage of mold components over time. Sharp internal corners can be stress concentrators.
• ### Machine Setup: Using excessive clamp force is a common mistake I see. It doesn’t necessarily prevent flash but can crush vents, hob the parting line (coining), and damage mold components. Misaligned machine platens put uneven stress on the mold.
• ### Handling and Storage: Physical damage from dropping, hitting, or improper prying during setup or removal shortens life. Storing a mold without proper cleaning and rust preventative, especially in humid environments, leads to corrosion that damages critical surfaces.

• ### Lack of Maintenance: This is the most controllable factor. Resin residue buildup impairs cooling and venting. Lack of lubrication causes friction, galling, and seizure of moving parts like ejector pins, slides, and lifters. Small chips or damage left unaddressed can propagate into larger failures.	Factor	How it Causes Wear/Damage	Mitigation Example
  Abrasive Resin	Erosion of steel surfaces, gates	Use hardened tool steel inserts (H13+)
  Corrosive Resin	Chemical attack, rust	Use stainless mold steel (S136)
  High Pressure/Speed	Erosion, steel fatigue	Optimize process, use wear-resistant steel
  Poor Venting	Burns, gas traps, surface damage	Regular vent cleaning, proper design
  Excess Clamp Force	Crushed vents, parting line damage (coining)	Use calculated clamp force, proper setup
  Lack of Lubrication	Friction, galling, seizure of moving parts	Regular lubrication schedule
  Improper Storage	Rust, corrosion, physical damage	Clean, apply rust preventative, store safely

  Understanding these factors helps you anticipate potential problems and focus maintenance where it’s needed most. For Jacky’s projects, considering the resin type and expected volume helps anticipate wear patterns from the design stage.

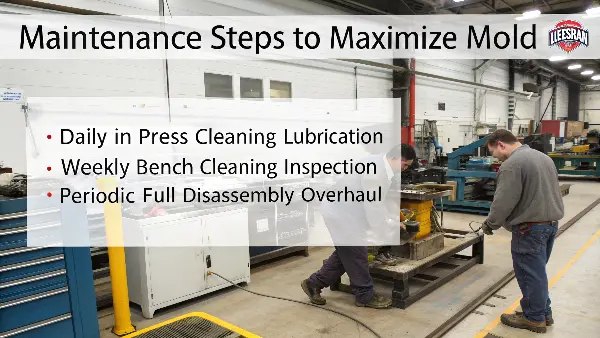

What Specific Maintenance Steps Can Maximize Your Mold’s Lifespan?

Knowing why molds fail isn’t enough; you need clear, actionable steps. Implementing a routine might seem like extra work, but skipping it virtually guarantees problems down the line. A structured maintenance plan is the practical solution for achieving maximum mold life.

Implement a tiered maintenance schedule: basic in-press cleaning/lubrication daily or per shift; more thorough bench cleaning/inspection weekly/monthly or after a run; and full disassembly/overhaul periodically based on cycle count or performance. Document everything.

A good maintenance program isn’t complicated, but it needs consistency. Think of it in levels:

1. ### Level 1: In-Press Maintenance (Operator Level – Daily/Shiftly):
   • Tasks: Wipe down parting line surfaces to remove residue/flash. Visually inspect for obvious damage, leaks, or excessive flash. Check ejector pins for smooth operation. Apply light lubrication to accessible leader pins/bushings if needed (use correct lube!).
   • Goal: Catch immediate problems, prevent buildup, ensure basic function. Takes minutes.
2. ### Level 2: Short-Term Bench Maintenance (Technician Level – Weekly/Monthly/End of Run):
   • Tasks: Remove mold from press (if needed). Thoroughly clean all mold surfaces, vents, and accessible cooling channels (compressed air, cleaners). Inspect parting line, cavities, cores for wear, scratches, or damage. Clean and properly lubricate all moving components (ejector pins, slides, lifters, guide pins/bushings). Check cooling fittings for leaks. Apply rust preventative before storage.
   • Goal: Deeper clean, thorough lubrication, inspection for developing issues.
3. ### Level 3: Major Preventative Maintenance (Toolroom Level – Periodic, e.g., every 50k-100k cycles or annually):
   • Tasks: Complete mold disassembly. Ultrasonic or deep cleaning of all components. Detailed inspection of all wear items (pins, bushings, seals, interlocks, slide gibs, leader pins). Measure critical dimensions against specs. Replace worn or damaged components before they fail. Polish cavity/core surfaces if required. Reassemble carefully, check fits, test water circuits.
   • Goal: Comprehensive overhaul, replace predictable wear items, restore mold to optimal condition. This prevents major breakdowns.
   • Key Focus Areas:
   • Cleaning: Resin buildup is insidious. It blocks vents (causing burns), insulates surfaces (affecting cooling), and can impede ejection. Use appropriate solvents and methods.
   • Lubrication: Critical for all moving parts. Use the right type of lubricant (high temp grease, specific pin lube) and apply it correctly – too little causes wear, too much can contaminate parts.
   • Venting: Keep vents clean and ensure they haven’t been hobbed closed by excessive clamp force.
   • Cooling Channels: Flush periodically to prevent scale buildup which drastically reduces cooling efficiency.

   • Documentation: Keep logs! Record cycles run, maintenance performed, parts replaced. This history is invaluable for troubleshooting and predicting future needs. Use checklists to ensure consistency.	Maintenance Type	Frequency	Key Tasks	Importance
     In-Press	Daily / Shiftly	Wipe PL, Visual Check, Light Lube	Prevent immediate issues, basic function
     Short-Term	Weekly / Monthly / End of Run	Clean Surfaces/Vents, Lube Moving Parts, Inspect	Deeper clean, prevent buildup, catch wear
     Major PM	Cycle Count / Annually	Disassemble, Deep Clean, Inspect All, Replace Wear	Overhaul, prevent major failure, restore condition

     For designers like Jacky, thinking about maintenance during design helps too. Are vents accessible? Are standard components used? Designing for maintainability saves headaches later. At CKMOLD, we always appreciate molds that are easy to work on.

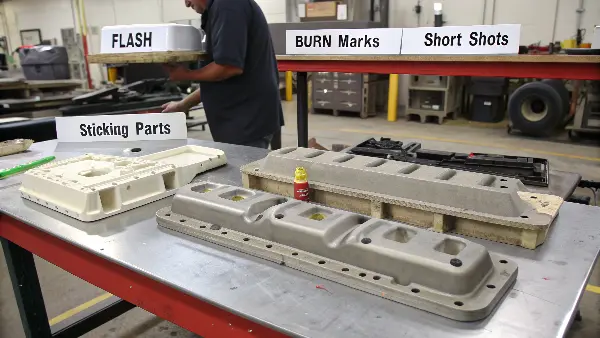

What Problems Signal Your Mold Needs Attention or is Wearing Out?

Seeing defects in your molded parts is often the first obvious sign that something is wrong with the mold. Ignoring issues like flash, burn marks, or sticking parts might seem minor initially, but these are frequently symptoms of underlying mold wear or maintenance needs. Recognizing these signs early prevents bigger failures and costly downtime.
Common part defects signaling mold wear or maintenance needs include flash (worn parting line, damaged vents), short shots (blocked vents, worn gates), burn marks (clogged vents), sticking parts (worn/galled ejectors, damaged surface), and dimensional inconsistency (worn locating features, cooling issues).

Your molded parts act as a diagnostic tool for the mold’s health. When you see consistent defects, investigate the mold:

• ### Flash: Plastic squeezing out at the parting line, around ejector pins, or slide actions.
  • Potential Mold Causes: Worn or damaged parting line surfaces, crushed or blocked vents allowing pressure buildup, worn ejector pin holes, excessive clearance in slide components, bent plates due to improper support. Needs inspection and potentially repair/refurbishment. Lack of cleaning can also contribute.
• ### Short Shots / Non-Fills: The cavity doesn’t fill completely.
  • Potential Mold Causes: Blocked vents preventing air escape (needs cleaning!), clogged or worn gates restricting flow, leaking check ring on the machine (less likely a direct mold wear issue, but affects the process).
• ### Burn Marks: Black or brown streaks/spots on the part, often at the end of fill.
  • Potential Mold Causes: Clogged or inadequate vents trapping and compressing air, which heats up and burns the plastic. Vents need cleaning or potentially need to be added/enlarged.
• ### Sticking, Drag Marks, Ejector Pin Marks: Parts are difficult to eject or show signs of damage during ejection.
  • Potential Mold Causes: Roughness or damage on cavity/core surfaces (needs polishing/repair), worn or insufficient draft angles, galled or mushroomed ejector pins (need lubrication/replacement), worn ejector sleeves.
• ### Warpage / Dimensional Instability: Parts are distorted or dimensions vary significantly.
  • Potential Mold Causes: Inconsistent or ineffective cooling due to clogged water lines (needs flushing/cleaning), significant wear on locating features (interlocks, leader pins) allowing misalignment.
• ### Surface Imperfections: Scratches, dents, or other marks transferred from the mold surface.

  • Potential Mold Causes: Physical damage to the cavity/core surfaces from handling, improper cleaning tools, or debris. Needs careful polishing or repair.	Defect	Potential Mold-Related Cause	Maintenance Link
    Flash	Worn/Damaged PL, Blocked Vents, Worn Pins/Slides	Inspection, Cleaning, Repair, Component Replace
    Short Shot	Blocked Vents, Worn Gates	Vent Cleaning, Gate Inspection/Repair
    Burns	Clogged/Inadequate Vents	Vent Cleaning, Potential Design Mod
    Sticking	Rough Surface, Worn/Galled Ejectors, No Draft	Polishing, Lubrication, Ejector Replace
    Warpage	Clogged Cooling, Worn Locators	Cooling Channel Cleaning, Locator Inspect/Replace
    Scratches	Damaged Cavity/Core Surface	Careful Handling, Polishing/Repair

    Treating these defects purely as processing issues without checking the mold is a mistake. Often, the root cause lies in the tool itself, signaling that maintenance or repair is overdue. Early detection and correction save time and money.

    Conclusion

    Proactive, scheduled mold maintenance isn’t an expense; it’s an investment. Tailoring the plan to the mold class and operating conditions prevents costly downtime, ensures part quality, and extends the valuable life of your injection molds significantly beyond neglect.
