How Can Advanced Process Control Elevate Precision Injection Molding?

Struggling to consistently hit tight tolerances in injection molding¹? Variations creep in, causing scrap and delays, hurting your bottom line. Advanced process control offers the solution you need.
Advanced process control² uses sophisticated monitoring, real-time adjustments, and data analysis (like Scientific Molding principles) to maintain extreme stability in temperature, pressure, and timing. This minimizes variations, ensuring consistent part quality and precision.
Achieving top-tier precision isn't just about having a good mold; it's about mastering the entire process. Without tight control, even the best tool can produce inconsistent parts. Let's explore the techniques that make the difference, starting with the basics.

Do You Understand the Fundamentals of Plastic Injection Molding?

Think you know injection molding? Skipping the fundamentals leads to basic errors that undermine precision efforts, costing time and money. Let's ensure the core concepts are clear.
The injection molding process involves melting plastic, injecting it into a mold cavity under pressure, cooling it, and ejecting the solid part. Understanding each stage is vital for controlling precision outcomes.
!
At its heart, injection molding is a cyclical process. Mastering precision requires deep knowledge of each phase and the variables involved. Let's break it down:

The Molding Cycle Explained

1. Clamping: The two halves of the mold are securely closed by the clamping unit, resisting the injection force. Inconsistent clamp force can lead to flashing.
2. Injection: Molten plastic, heated and plasticized by the screw, is injected rapidly into the mold cavity. Injection speed and pressure are critical here. Too fast can cause burning; too slow can cause short shots.
3. Packing/Holding: After the cavity is mostly full, additional pressure (packing pressure) is applied to compensate for shrinkage as the plastic cools. Holding time ensures the gate freezes off. This phase heavily influences final part dimensions and density.
4. Cooling: The part solidifies within the mold. Cooling time is often the largest portion of the cycle and must be consistent for stable dimensions and avoiding warpage. Mold temperature control is key.
5. Ejection: The mold opens, and the solidified part is pushed out by ejector pins.


   Key Variables Affecting Precision

   Understanding these stages highlights the critical parameters we must control:	Parameter	Influence on Precision	Control Method
   Melt Temperature	Affects viscosity, flow rate, and material degradation.	Barrel heating zones, thermocouples
   Mold Temperature	Impacts cooling rate, shrinkage, surface finish, warpage.	Thermolators, cooling channels
   Injection Pressure	Determines fill speed and packing effectiveness.	Hydraulic/Electric pressure control
   Injection Speed	Affects filling pattern, shear heating, surface appearance.	Valve or screw speed control
   Packing Pressure	Compensates for shrinkage, affects final dimensions/weight.	Pressure transducers, timers
   Cooling Time	Determines solidification level, cycle time, stability.	Cycle timers, mold temp control

   Even slight deviations in these basics can cascade into significant dimensional inconsistencies. That's why a solid grasp of these fundamentals is the bedrock upon which advanced process control is built. I've seen many precision issues traced back to overlooking these core principles.

   Are Mold Design Considerations Crucial for Precision?

   Is your mold design hindering precision? Poorly designed gates, inadequate cooling, or weak construction can make tight tolerances impossible, no matter how good the process control is. Let's look at essential design factors.
   Yes, mold design is absolutely critical. Precision relies heavily on uniform cooling, appropriate gate design and location, effective venting, robust construction, and selecting the right mold steel for stability.

   The mold is the heart of the injection molding process, and its design directly dictates the potential for precision. Advanced process control can only optimize within the limits set by the tool itself. Here’s why specific design elements are so vital:

   Cooling Channel Design

   Uniform cooling is arguably the most critical factor for dimensional stability and minimizing warpage.

   • Layout: Cooling channels must be strategically placed to follow the part's geometry, ensuring even heat extraction from all areas, especially cores and thicker sections. Conformal cooling, where channels follow the part's complex contours, offers superior temperature control for intricate parts.
   • Efficiency: Sufficient flow rate and turbulent flow within the channels are necessary for effective heat transfer. Proper sizing and surface finish matter. Inconsistent cooling leads directly to uneven shrinkage, internal stresses, and dimensional variations.


     Gating and Venting

     How plastic enters and air leaves the cavity significantly impacts precision.

   • Gate Location & Type: The gate position influences the filling pattern, molecular orientation, and residual stress. The type of gate (e.g., pin gate, submarine gate, fan gate) affects shear heat and packing efficiency. Poor gating can cause hesitation, weld lines, or uneven packing, all detrimental to tolerance control.
   • Venting: Air trapped in the cavity gets compressed, causing burns, short shots, and incomplete filling. Vents must be adequately sized and located at the last points to fill, allowing air to escape without flashing. Deep ribs or isolated features often require dedicated vents.


     Mold Construction and Steel Selection

     The mold's physical integrity underpins precision.

   • Robust Base: The mold base must be sufficiently strong and rigid to withstand high clamping and injection pressures without deflection. Any movement can affect parting line match and cavity dimensions.
   • Steel Choice³: High-quality, dimensionally stable tool steels (like H13, S7, or stainless grades for some applications) are needed. They must resist wear, maintain hardness after heat treatment, and possess good thermal conductivity for consistent cooling. Pre-hardened steels might suffice for lower volume, while through-hardened steels offer better longevity for high-precision, high-volume runs.
     I recall a project struggling with tight tolerances⁴ on mating parts. Flow simulations confirmed uneven cooling. We redesigned the mold core with better cooling placement, and combined with process optimization, the parts consistently met spec. The initial design simply didn't support the required precision level.

What Advanced Techniques Improve Injection Molding Precision?

Are standard molding practices falling short for your high-precision parts? Relying only on basic controls often isn't enough for complex geometries or ultra-tight tolerances, leading to inconsistent results. Let's explore more advanced methods.
Advanced techniques like Scientific Molding, Decoupled Molding, using in-mold sensors (pressure/temperature), and closed-loop process control provide the stability and insight needed for top-tier precision molding.

Moving beyond standard setup procedures requires adopting more sophisticated, data-driven techniques. These methods aim to understand and control the process at a much deeper level, isolating variables and responding to changes in real-time.

Scientific Molding (or Decoupled Molding)

This systematic approach focuses on separating and optimizing the distinct phases of the injection process:

• Filling Phase (1st Stage): Controlled primarily by injection speed. The goal is to fill about 95-98% of the cavity volume based on screw position, not pressure or time, making it independent of material viscosity changes.
• Packing Phase (2nd Stage): Controlled by pressure and time. This compensates for shrinkage as the plastic cools and solidifies. Cavity pressure sensing provides direct feedback for optimal packing.
• Holding Phase: Maintains pressure until the gate freezes.
  This separation (decoupling) prevents variations in one phase from unduly affecting the others, leading to a more robust and repeatable process.

  In-Mold Sensors

  Placing sensors directly within the mold cavity provides the most accurate picture of what the plastic experiences:

• Cavity Pressure Sensors: These measure the actual pressure inside the mold during filling, packing, and cooling. This data is invaluable for optimizing packing profiles, detecting inconsistencies, ensuring cavity-to-cavity balance in multi-cavity molds, and transferring processes between machines. Peak cavity pressure often correlates strongly with part dimensions and weight.
• Mold Temperature Sensors: Monitor the steel temperature near the cavity surface, confirming the effectiveness and stability of the cooling system.


  Closed-Loop Process Control

  This involves using sensor feedback (like cavity pressure or screw position) to automatically adjust machine parameters (like transfer point or packing pressure) during the cycle. This real-time adjustment helps compensate for minor variations in material viscosity, ambient conditions, or machine performance, keeping the process centered within the optimal window. Modern electric machines often excel here due to their precise digital control.
  Implementing these techniques requires investment in training and potentially equipment upgrades (sensors, more advanced machine controllers). However, for demanding applications where precision is paramount, the improved consistency, reduced scrap, and deeper process understanding they provide are often essential. I've used cavity pressure data extensively to troubleshoot complex molding problems that were invisible using only machine-side parameters.

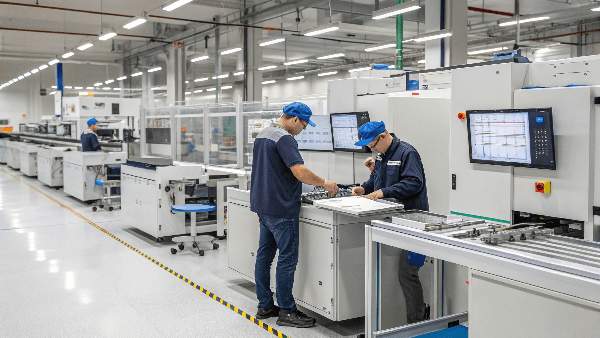

  How Can Optimizing the Manufacturing Workflow Boost Precision?

  Is your overall workflow undermining your precision molding efforts? Inconsistent material handling, lengthy setups, or inadequate quality checks can introduce variability that negates advanced process control gains. Let's streamline the workflow.
  Optimizing the workflow through consistent material prep, standardized setups (like SMED), robust quality protocols, and data management ensures the entire system supports repeatable, high-precision outcomes.

  Achieving consistent precision isn't solely about the injection molding machine; it's about the entire ecosystem surrounding it. A disjointed or variable workflow can introduce errors that are difficult to control solely through machine settings. Streamlining operations is key.

  Consistent Material Handling

  Plastic resins are sensitive to moisture and contamination.

• Drying: Many engineering plastics require precise drying to specific moisture levels before processing. Over-drying or under-drying significantly affects viscosity and processing behavior, leading to dimensional variations. Using calibrated drying equipment with moisture analyzers is crucial.
• Blending: If using colorants or additives, ensure accurate and consistent blending ratios. Automated blending systems are preferable.
• Contamination Control: Keep materials covered and handle them in a clean environment to prevent contamination that can cause part defects.


  Standardized and Efficient Setups

  Reducing variability between production runs is vital.

• Quick Mold Change (QMC/SMED): Implementing Single-Minute Exchange of Die principles minimizes downtime but also encourages standardized connections (water, air, electrics) and procedures, reducing setup errors.
• Setup Sheets: Detailed, documented setup sheets capturing all critical parameters (temperatures, pressures, speeds, times, cooling connections) ensure consistency run-to-run and operator-to-operator. Digital storage and retrieval systems are ideal.
• Machine Calibration: Regular calibration of machine sensors (temperature, pressure, position) ensures accuracy and repeatability.


  Robust Quality Assurance

  Catching deviations early prevents large batches of bad parts.

• First Article Inspection (FAI): Thoroughly measure and document the first parts produced after setup against the drawing specifications.
• In-Process Monitoring (SPC): Use Statistical Process Control charts to monitor critical dimensions or process parameters during the run, identifying trends or shifts before parts go out of tolerance.
• Automated Inspection: Vision systems or CMMs can provide faster, more consistent measurement of critical features, sometimes integrated directly into the production cell.
  Integrating these workflow elements creates a more controlled and predictable manufacturing environment. I’ve seen significant improvements in consistency just by rigorously standardizing material drying protocols and machine setup checklists across different shifts. Precision demands discipline throughout the entire operation.

  Can Process Control Also Drive Sustainability in Plastic Injection Molding?

  Thinking precision and sustainability are separate goals? Inefficient processes waste energy and materials, directly contradicting sustainability efforts and increasing costs. Let's see how control improves both aspects.
  Yes, advanced process control significantly enhances sustainability by minimizing material scrap through reduced defects, optimizing energy usage via shorter, stable cycles, and enabling the effective use of recycled or bio-based materials.

  Sustainability in manufacturing is increasingly important, driven by environmental concerns, regulations, and customer demands. Fortunately, the same advanced process control techniques that enable high precision often lead to more sustainable operations.

  Reducing Material Waste

  Scrap reduction is a direct environmental and economic benefit.

• Lower Defect Rates: Tighter process control leads to fewer rejected parts (short shots, flash, warpage, dimensional errors). This means less virgin material is wasted, and less energy is consumed producing non-conforming parts.
• Optimized Runner Systems: While related to mold design, process control allows for minimizing runner size (sometimes using hot runners) because the filling process is more predictable and controllable, reducing regrind or scrap volume per cycle.


  Optimizing Energy Consumption

  Injection molding machines, especially older hydraulic models, consume significant energy.

• Cycle Time Optimization: Stable, well-controlled processes often allow for the shortest possible, repeatable cycle times without sacrificing quality. Reducing cooling time safely, for instance, directly cuts energy use per part.
• Efficient Machine Use: Modern electric machines are inherently more energy-efficient than hydraulic ones. Advanced controls ensure these machines operate consistently within their most efficient parameters. Data logging can help identify energy usage patterns and opportunities for savings.


  Enabling Sustainable Materials

  Using recycled or bio-based plastics presents processing challenges due to potential variability.

• Handling Variability: Advanced process controls, especially closed-loop systems using cavity pressure sensing, can adapt to slight variations in melt viscosity common in recycled material streams, maintaining part quality where simpler controls might fail.
• Process Window Development: Techniques like Scientific Molding are essential for establishing robust process windows that can accommodate the specific characteristics and potential inconsistencies of sustainable feedstocks.
  Pursuing precision through advanced control inherently pushes operations towards greater efficiency. By stabilizing the process, we reduce waste and energy consumption naturally. I’ve worked with clients who adopted advanced process control primarily for quality reasons but were pleasantly surprised by the simultaneous reduction in their energy bills and scrap rates, contributing directly to their sustainability goals.

  Conclusion

  Advanced process control techniques are not just optional extras; they are essential for achieving consistent, high-precision results in injection molding while also promoting more sustainable manufacturing practices.
