How Can You Overcome Complex Challenges in Precision Medical Device Molding?

Are you struggling to meet the extreme demands of medical device molding? Complex geometries, tight tolerances, and strict regulations create constant pressure, where failures are not just costly but potentially harmful.

Success hinges on mastering four key areas: selecting the right biocompatible materials¹, engineering precision molds, meticulously controlling process parameters, and ensuring rigorous quality assurance² throughout.

The stakes are incredibly high in medical molding. Parts must function flawlessly, often under demanding conditions like sterilization. It requires a holistic approach, looking beyond just the molding machine. Let’s break down the critical elements with some real-world examples.

How Does Material Selection Impact Precision Injection Molding?

Choosing the wrong plastic for a medical device? This can lead to functional failures, biocompatibility issues, or parts degrading during sterilization, risking patient safety and causing costly recalls. Material choice is foundational.
Material properties like flow rate, shrinkage, dimensional stability, chemical resistance, and biocompatibility directly dictate the achievable precision, functional performance, and regulatory compliance of a molded medical device.
The material isn’t just what the part is made of; it defines the boundaries of what’s possible in precision molding. For medical applications, several factors are critical:

• Biocompatibility: This is paramount. Materials must meet standards like USP Class VI or ISO 10993, ensuring they won’t cause adverse reactions when in contact with the body or fluids. You need documentation from the supplier.
• Chemical Resistance: Devices often undergo sterilization (gamma, E-beam, EtO, autoclave). The material must withstand these processes without degrading, crazing, or changing dimensions. I remember a project where a material looked perfect on paper but failed after gamma sterilization – a costly lesson in testing early.
• Dimensional Stability: Low, predictable shrinkage and a low coefficient of thermal expansion (CTE) are vital for holding tight tolerances. Materials like LCP or PEEK offer excellent stability but come with higher costs and processing challenges.
• Mechanical Properties: Strength, stiffness, flexibility, and impact resistance must match the device’s intended use.

• Processability: Good flow characteristics are needed to fill complex, thin-walled geometries without excessive pressure or degradation.	Medical Plastic Example	Key Strengths	Potential Challenges	Typical Uses
  Polycarbonate (PC)	Clarity, Impact Strength, Sterilizable	Chemical Resistance (some)	Housings, Connectors
  PEEK	High Strength, Temp/Chem Resistance	Cost, High Process Temps	Implants, Surgical Tools
  PEI (Ultem)	High Temp/Chem Resistance, Sterilizable	Cost, Amber Color	Surgical Tools, Trays
  COC/COP	Clarity, Barrier Properties, Low Extract.	Brittleness	Syringes, Vials, Diagnostics
  Liquid Silicone (LSR)	Biocompatible, Flexible, Temp Resistant	Tooling Complexity	Seals, Gaskets, Tubing

  We once worked on a transparent drug delivery component. The initial choice, acrylic, offered clarity but couldn’t withstand the required sterilization method. We switched to a medical-grade polycarbonate (PC) which met both the clarity and sterilization requirements, ensuring device integrity.

  What Role Does Mold Design Play in Injection Molding Accuracy?

  Using the best material and process but still getting inconsistent parts? A flawed mold design can introduce warpage, flash, poor tolerance control, and cosmetic defects, undermining all other efforts. Precision starts with the mold.
  Mold design³ dictates accuracy through precise cavity dimensions, uniform cooling layouts, strategic gating for optimal filling and packing, effective venting to prevent defects, and robust construction.

The injection mold is the heart of the process; its design directly translates the digital part model into a physical reality. For high-precision medical parts, several mold design elements are critical:

• Cavity Tolerances & Steel⁴: The mold cavity must be machined to tolerances significantly tighter than the final part tolerance. Steel selection is also vital; stable, high-quality tool steels are needed to maintain dimensions over many cycles.

• Gating Strategy: The gate’s location, type, and size heavily influence how plastic fills the cavity, how pressure is transmitted during packing, and where residual stresses form. For medical parts, minimizing gate vestiges and ensuring complete filling of micro-features is crucial. Valve gates often provide the best control but add complexity and cost.
• Cooling System: Uniform cooling across the part geometry is essential to prevent differential shrinkage, which causes warpage. Conformal cooling channels, which follow the part’s contours, offer superior temperature control for complex shapes but require advanced manufacturing techniques.
• Venting: Air trapped in the cavity prevents complete filling (short shots) and can cause burn marks or degraded material. Vents must be strategically placed and sized correctly to allow air escape without allowing plastic flash. This is critical for thin walls and complex details.

• Ejection: The system for pushing the part out of the mold must be designed carefully to avoid deforming delicate features or causing cosmetic blemishes.	Gate Type	Pros	Cons	Best Suited For…
  Edge Gate	Simple, Low Cost	Leaves vestige on part edge	Parts where edge vestige is acceptable
  Submarine (Sub) Gate	Automatic degating, small vestige	Can cause stress, size limited	High volume, small parts
  Pinpoint Gate	Small vestige	Can freeze off early, needs 3-plate	Multi-cavity, balanced fill
  Valve Gate	Best control over flow, large gate area	Complex, Expensive, Maintenance	Precision parts, large gates needed

  I recall a project involving a very thin-walled diagnostic cartridge. Initial trials showed warping and incomplete filling. We redesigned the mold with conformal cooling channels close to the thin sections and added more vents near the end-of-fill. These changes dramatically improved part consistency and dimensional stability.

  Why Is Process Parameter Control Crucial in Injection Molding?

  Have you perfectly designed the mold and selected the ideal material, yet still see variations batch-to-batch? Inconsistent process parameters lead to fluctuating part quality, dimensions drifting out of spec, and unpredictable performance. Repeatability demands process control.
  Process parameters (temperatures, pressures, speeds, times) govern the plastic’s behavior—melting, flowing, packing, cooling—directly controlling the final part’s dimensions, internal stress, mechanical properties, and consistency.

  Even with the best material and mold, the actual injection molding process is where consistency is won or lost. Tiny variations in parameters can have significant effects on precision medical parts. Key areas include:

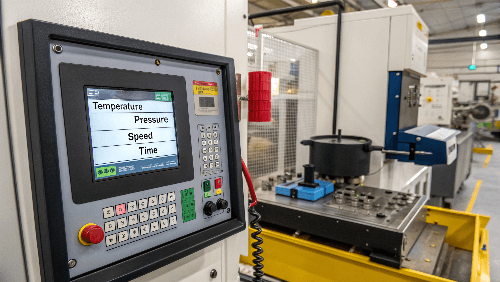

• Temperatures (Melt & Mold)⁵: Control viscosity, flow rate, cooling rate, and shrinkage. Consistency is vital. Even a few degrees deviation can affect dimensions, especially with sensitive materials.
• Pressures (Injection & Packing): Fill the mold completely and compensate for shrinkage. Insufficient packing leads to sinks and voids; excessive pressure causes flash and stress. Packing pressure profiles are often optimized.
• Speeds (Injection & Screw Recovery): Injection speed affects fill pattern, shear heating, and potential for defects like jetting or gas traps. Screw recovery consistency impacts melt quality for the next shot.
• Times (Injection, Packing, Cooling): These dictate the duration pressure is applied and how long the part solidifies before ejection. Cooling time is often the largest part of the cycle and critical for dimensional stability.
• Scientific Molding⁶: Using principles like Decoupled Molding (separating fill, pack, hold phases) allows for more robust process development, isolating variables to understand their impact.

• Process Monitoring: Modern machines offer real-time monitoring of pressures, temperatures, and timings. Analyzing this data helps detect deviations and maintain consistency. Process validation (IQ/OQ/PQ) is mandatory for medical devices to prove the process consistently produces parts within spec.	Parameter	Primary Effect on Part Quality/Dimensions	Potential Issue if Uncontrolled
  Melt Temperature	Viscosity, Degradation, Shrinkage	Short shots, burns, inconsistent shrink
  Mold Temperature	Cooling Rate, Shrinkage, Surface Finish, Stress	Warpage, poor finish, varying dims
  Injection Speed	Fill Pattern, Shear Heat, Cosmetic Defects	Flash, burns, sink, weld lines
  Packing Pressure	Shrinkage Compensation, Density	Sink, voids, flash, sticking
  Packing/Hold Time	Amount of Shrinkage Compensation	Sink, voids, dimensional variation
  Cooling Time	Part Solidification, Dimensional Stability	Warpage, ejection issues, long cycle

  We faced a challenge with micro-needles on a drug delivery patch – tiny features requiring absolute precision. Implementing a decoupled molding process allowed us to pinpoint the optimal injection speed to fill the micro-features without damage and precisely control packing pressure to ensure full replication without flash. Rigorous monitoring kept the process stable.

  How Can Product Appearance Be Optimized in Precision Molding?

  Is your medical device functionally perfect but visually flawed? Cosmetic defects like sink marks, flow lines, or inconsistent gloss can imply poor quality, erode user confidence, and even obscure functional features. Appearance matters.
  Optimize appearance through careful mold surface finishing (polishing, texturing), precise process control to prevent visual defects (sink, splay, flash, weld lines), and meticulous material handling (drying, cleanliness).

  In medical devices, aesthetics often go hand-in-hand with perceived quality and usability. Achieving a flawless appearance requires attention to detail in both the mold and the process:

• Mold Surface Finish: The finish inside the mold cavity directly transfers to the plastic part. Medical devices often require high gloss (SPI A-1/A-2 polish) for cleanability or specific textures (e.g., VDI standards) for grip or low gloss. Achieving and maintaining these finishes requires skilled polishing and careful mold handling.
• Process Control for Cosmetics:
  • Sink Marks: Caused by localized shrinkage in thick sections. Addressed by increasing packing pressure/time, reducing melt/mold temp, or redesigning the part/mold (e.g., coring out thick sections).
  • Flash: Excess material squeezing out of the parting line. Caused by excessive injection/packing pressure, insufficient clamp force, or mold damage.
  • Splay/Silver Streaks: Caused by moisture in the material or excessive shear heat. Proper material drying and optimizing injection speed are key.
  • Weld Lines: Form where melt fronts meet. Can be minimized by adjusting gate location, increasing melt/mold temps, or using sequential valve gating. While sometimes unavoidable, their location and appearance can be managed.
• Material Handling: Contamination (dust, foreign particles) leads to black specks or other inclusions. Proper drying is essential to prevent moisture-related defects. Cleanroom environments are often necessary for medical molding.

• Gate Location: The gate leaves a mark (vestige). Its location should be planned for minimal cosmetic impact, ideally hidden on a non-critical surface or designed for easy removal.	Visual Defect	Likely Cause(s)	Primary Solution(s)
  Sink Marks	Insufficient packing, thick sections, high temps	Increase pack pressure/time, reduce temps, redesign part
  Flash	High pressure, low clamp force, mold wear/damage	Reduce pressure, increase clamp, repair mold
  Splay/Silver Streaks	Moisture, high shear heat	Dry material thoroughly, reduce injection speed
  Weld Lines	Converging melt fronts	Adjust gate/temps/speed, venting optimization
  Burn Marks	Trapped/compressed air	Improve venting, reduce injection speed
  Black Specks	Material contamination, degradation	Clean hopper/barrel, check temps, use filtered nozzles

  For a handheld diagnostic device, the client required a flawless, high-gloss white housing. We specified an SPI A-2 mold finish and paid meticulous attention to material drying. We also adjusted the injection speed profile carefully to ensure the melt flowed smoothly across the surface, minimizing any potential for flow lines and achieving the desired premium look and feel.

  How Can Scalable Quick-Turn Molding Solutions Help Complex Product Designs?

  Need functional prototypes or low-volume production of a complex medical device fast? Traditional steel tooling takes weeks or months and is expensive, delaying validation and market entry. There has to be a faster way for initial runs.

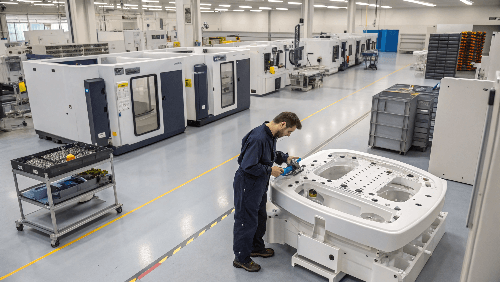

  Quick-turn molding uses rapid tooling (often aluminum) and streamlined processes to deliver functional injection-molded parts in days or weeks, enabling rapid design iteration, validation, and faster time-to-market.

  When speed is critical, especially during development or for niche products, quick-turn injection molding provides a vital bridge. It’s particularly useful for the complex geometries often found in medical devices.

• Rapid Tooling: Instead of hardened steel, molds (or inserts) are often machined from aluminum or softer steels. This is much faster and cheaper, though tool life is shorter (typically good for thousands, not millions, of shots).
• Simplified Mold Design: Quick-turn molds might have less automation (manual inserts, simpler ejection) and fewer cavities compared to high-volume production tools, reducing design and manufacturing time. Master Unit Die (MUD) systems are often used, where standardized frames accept custom inserts.
• Digital Integration: The process relies heavily on 3D CAD data direct to CAM and CNC machining, minimizing manual steps and interpretation errors.
• Benefits for Complex Designs:
  • Faster Iteration: Test complex geometries with the actual manufacturing process and material quickly. Identify design flaws early.
  • Reduced Development Time/Cost: Get functional parts for testing (clinical trials, user feedback) much faster and cheaper than waiting for production tooling.
  • Bridge Tooling: Fulfill initial low-volume orders while high-volume steel tooling is being built.

  • Market Testing: Launch a product faster to gauge market reaction before committing to massive tooling investment.	Feature	Traditional Steel Tooling	Quick-Turn Aluminum Tooling
    Lead Time	6-16+ Weeks	1-4 Weeks
    Cost	High	Low-Medium
    Tool Life	500k – 1M+ shots	1k – 10k+ shots
    Complexity	High (Automation)	Medium (Often simpler)
    Material Options	Wide	Wide (but temps may limit)
    Best Use	High Volume Production	Prototypes, Bridge, Low Vol

    I worked with a startup developing an innovative respiratory device. They needed functional prototypes for investor demos and initial lab testing within three weeks. Using quick-turn aluminum tooling, we delivered parts molded in the final specified medical-grade polymer in 15 days. This allowed them to secure funding and refine the design based on real-world feedback, accelerating their path to market significantly.

    Conclusion

    Overcoming precision medical molding challenges requires a multi-faceted approach: rigorous material selection, meticulous mold design, tight process control, optimizing appearance, and leveraging solutions like quick-turn molding for speed and flexibility.
