How Does CKMOLD’s Advanced Technology Overcome Precision Injection Molding Challenges?

Struggling with inconsistent parts and tight tolerances in precision molding¹? These challenges can lead to high scrap rates, project delays, and compromised product performance, costing you time and money.
CKMOLD leverages advanced technology, starting from DFM² and Moldflow analysis³ through to precise mold making and optimized process control, to ensure consistent, high-quality precision parts.
Achieving true precision isn’t just about having a good machine; it’s about integrating technology and expertise throughout the entire process. My experience has shown that identifying potential problems early, right from the design stage, is crucial. Let’s explore how we use technology at CKMOLD to tackle these hurdles head-on.

How can you improve the quality of injection molding?

Are defects like warpage, sink marks, or inconsistent dimensions hurting your production? Poor quality leads to customer dissatisfaction, costly rejects, and potential product failures in the field.
Improve quality by combining upfront analysis (DFM, Moldflow), precise mold construction, stable process control using advanced machinery, proper material handling, and thorough quality inspection procedures⁴.

Improving quality starts long before the plastic enters the mold. At CKMOLD, we begin with a detailed Design for Manufacturability (DFM)⁵ analysis. This helps us spot potential issues in the part design itself – like thick sections prone to sinking or sharp corners that cause stress. We use Moldflow simulation software to predict how the plastic will fill, pack, and cool within the mold cavity. This simulation highlights potential problems like air traps, weld lines, or uneven shrinkage before we cut steel. Based on this analysis and my own past experiences tackling similar geometries, we can suggest design optimizations to the client or incorporate specific features into the mold design, like targeted cooling or venting strategies. Then, we use high-precision CNC machines and EDM to build the mold accurately. Finally, stable processing and quality checks ensure the end result meets specifications. It’s a systematic approach.

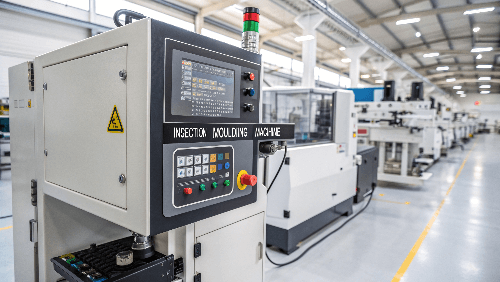

What are the advantages of microprocessor controlled injection moulding machine?

Are you finding it difficult to maintain consistent shot-to-shot quality? Manual adjustments or older hydraulic machines often lack the repeatability needed for demanding precision parts, leading to unacceptable variations.
Microprocessor controls offer precise, real-time, closed-loop control over all critical parameters—pressures, temperatures, speeds, and times—ensuring exceptional repeatability, consistency, and enabling advanced process optimization.

Modern microprocessor-controlled machines are game-changers for precision molding. Think of it like having a vigilant computer managing every single step of the cycle with extreme accuracy. Instead of relying on simple timers or fixed hydraulic pressures, these systems use sensors (like pressure transducers and thermocouples) to constantly monitor what’s actually happening. They compare this real-time feedback to the setpoints and make instant adjustments. This is called closed-loop control. It means if the material viscosity changes slightly or the ambient temperature fluctuates, the machine compensates automatically to maintain consistent conditions. This leads to much higher part-to-part consistency in dimensions and properties. They also allow for complex multi-stage injection and packing profiles, essential for difficult parts. Plus, they meticulously log data for process validation and troubleshooting, which is critical in fields like medical device manufacturing. At CKMOLD, using these advanced machines is standard practice for precision work.

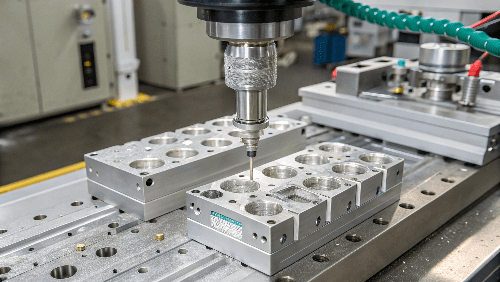

How precise can injection molding be?

Wondering just how tight the tolerances can be for injection molded parts? Achieving micron-level accuracy seems impossible with molten plastic, leading some to choose more expensive manufacturing methods unnecessarily.
Injection molding can be extremely precise, capable of achieving tolerances as tight as +/- 0.001 inches (+/- 0.025 mm), and even tighter for micro-molding applications, under carefully controlled conditions.

The level of precision achievable depends heavily on several factors working together. First is material selection; stable engineering thermoplastics with low, predictable shrinkage rates (like LCP, PEEK, or some filled resins) are often required. Second, the mold itself must be built to incredibly high accuracy, often requiring tolerances 2-4 times tighter than the final part tolerance. This demands high-precision machining and meticulous finishing. Third, the injection molding process must be exceptionally stable, using microprocessor-controlled machines with closed-loop feedback to maintain consistent temperatures, pressures, and times. Part design also plays a role; simple, uniform wall thickness designs are easier to mold precisely than complex geometries with thick and thin sections. Applications like medical device components, micro-optics, and electronic connectors often demand these ultra-tight tolerances. We’ve successfully produced parts with tolerances below +/- 0.03mm by controlling all these variables carefully.

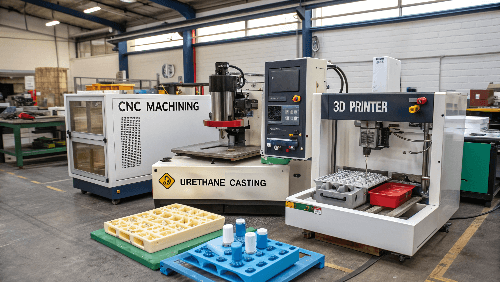

What is the best alternative to injection molding?

Is the high upfront tooling cost or long lead time of injection molding⁶ a barrier? Sometimes injection molding isn’t the right fit, especially for prototypes or very low volumes, leaving you searching for options.
No single "best" alternative exists; the ideal choice depends on quantity, complexity, material needs, and required speed. Common alternatives include CNC machining⁷, 3D printing⁸ (additive manufacturing), and urethane casting.

Injection molding excels at producing large quantities of complex parts cheaply and quickly after the initial tooling investment. But when volumes are low or speed is paramount for prototypes, other methods shine.

• CNC Machining: Directly cuts parts from solid blocks of plastic or metal. Offers high precision and uses production-grade materials but is slower and more expensive per part, especially for complex shapes. Best for low volumes (1-100s) or very specific material needs not suitable for molding.
• 3D Printing (Additive Manufacturing): Builds parts layer by layer. Excellent for complex geometries and very fast turnaround for prototypes (days). Material properties might differ from molded parts, and per-part cost is higher at volume. Ideal for initial prototypes, complex designs, and very low quantities.
• Urethane Casting: Uses silicone molds made from a master pattern (often 3D printed). Good for low volumes (10s-100s) requiring properties closer to injection molding than 3D printing, with lower tooling costs than injection molding but higher per-part costs.
  While CKMOLD specializes in injection molding, understanding these alternatives helps us advise clients if molding isn’t the most suitable path for their specific stage or requirements.

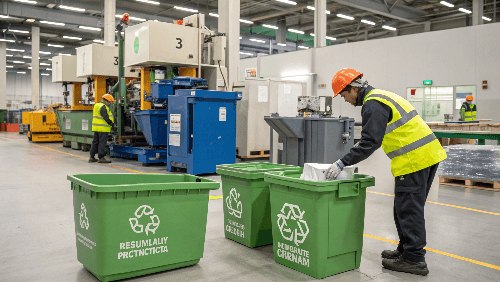

  How can I make injection moulding more sustainable?

  Concerned about the environmental footprint of plastic manufacturing? Growing pressure exists to adopt greener practices, but knowing where to start with injection molding can be challenging.
  Make molding more sustainable by using energy-efficient machines, selecting recycled or bio-based materials, optimizing designs for material reduction, minimizing waste (regrind, scrap), and improving logistical efficiency.

  Sustainability in injection molding involves looking at the entire lifecycle. We can start by using modern, all-electric injection molding machines, which consume significantly less energy (often 30-60% less) than older hydraulic machines. Material choice is key: incorporating post-consumer recycled (PCR) content where appropriate or exploring bio-based polymers can reduce reliance on virgin fossil fuels. Smart part design, like thin-walling or using core-outs, reduces the total amount of plastic needed per part. In the mold, using hot runner systems eliminates the plastic waste associated with cold runners, although the tooling is more complex. Process optimization is also crucial; reducing scrap rates through stable processes means less wasted material and energy. Properly handling and reusing regrind (ground-up runners or rejected parts) is important, though limits exist, especially for critical applications. Even logistics, like optimizing shipping to reduce transportation emissions, plays a part. It requires a conscious effort across multiple areas.

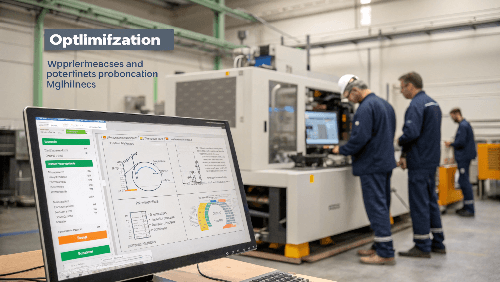

  What is optimization of injection molding process?

  Are you just using the default settings on your machine or relying on guesswork? A non-optimized process leads to longer cycle times, higher scrap rates, inconsistent quality, and increased costs.
  Optimization involves systematically adjusting process parameters (temperatures, pressures, speeds, times) using data and analysis to achieve the best possible part quality, fastest cycle time, and lowest cost consistently.

  Process optimization goes beyond just making acceptable parts; it’s about making the best possible parts efficiently. It often starts with insights gained from the DFM and Moldflow analysis I mentioned earlier – these simulations give us a good starting point for parameters like fill speed or pack pressure. We then use principles of Scientific Molding or Decoupled Molding. This involves systematically changing one parameter at a time (like melt temperature or packing pressure) and measuring its effect on the part dimensions and quality. Techniques like Design of Experiments (DOE) can help identify the most critical parameters and their ideal ranges quickly. The goal is to find a "robust" process window where minor variations in conditions don’t drastically affect part quality. We monitor key outputs like cavity pressure curves to ensure consistency shot after shot. It’s an iterative process: adjust, measure, analyze, repeat, until we achieve high quality, low scrap, and the fastest possible cycle time without compromising the part.

  Conclusion

  CKMOLD overcomes precision molding challenges by integrating DFM, simulation, advanced machine technology, meticulous process optimization, and deep experience, ensuring quality, precision, and efficiency for even complex parts.
