How Can You Overcome Injection Molding’s Disadvantages?

Worried about high tooling costs, long lead times, or design limits with injection molding? These hurdles can seem daunting, potentially delaying your project or increasing expenses significantly.

Overcome disadvantages by leveraging strategic planning, advanced simulation (DFM, Moldflow)¹, process optimization², appropriate technology choices (like hot runners), and considering alternative methods for low volumes.

Injection molding is powerful, but it’s not perfect. I’ve seen many projects face challenges because these drawbacks weren’t addressed upfront. Understanding these limitations and knowing how to mitigate them is key to success. Let’s break down the common issues and how we tackle them at CKMOLD.

What are the disadvantages of injection molding?

Thinking injection molding is the perfect solution? High startup costs, design constraints, and potential waste can sometimes make it less ideal, especially for certain projects.
Key disadvantages include high initial tooling costs, long mold-making lead times, design complexity restrictions (undercuts, drafts), potential for defects, material waste (runners), and less suitability for very low volumes.
Injection molding is fantastic for mass production, but it comes with trade-offs. Here’s a closer look at the common hurdles:

High Initial Investment

Building a high-quality steel mold is expensive and time-consuming. Costs can range from thousands to hundreds of thousands of dollars, depending on complexity, size, and required lifespan. This upfront cost is the biggest barrier for many startups or low-volume products.

Long Lead Times

Designing, manufacturing, and testing an injection mold typically takes weeks or even months. This delay can impact time-to-market, which is critical in fast-moving industries.

Design Restrictions

Certain features are difficult or impossible to mold directly.

• Draft Angles³: Vertical walls need a slight angle (draft) to allow easy part ejection.
• Undercuts⁴: Features that prevent direct removal require complex, costly mold mechanisms like side-actions or lifters.
• Wall Thickness⁵: Variations can cause warping, sink marks, or incomplete filling. Uniform thickness is preferred.

Potential for Defects & Waste

Improper design or process control can lead to defects like flash, sink, shorts shots, or warpage, resulting in scrap. Cold runner systems also generate plastic waste with each cycle, though this can often be reground and reused to some extent.

Volume Requirements

The high tooling cost means injection molding is generally cost-effective only for higher production volumes (thousands to millions of parts) where the per-part cost becomes very low.

How can I improve my injection molding process?

Are inconsistent parts, long cycles, or high scrap rates plaguing your production? A poorly tuned process wastes time, material, and money, impacting your bottom line.
Improve your process through rigorous Design for Manufacturability (DFM), Moldflow simulation, scientific molding principles for optimization, regular mold maintenance, proper material handling, and continuous operator training.
!
Improving the injection molding process is a continuous effort, not a one-time fix. It starts way before production.

Pre-Production Analysis

• DFM (Design for Manufacturability): This is critical. We analyze the part design early on, looking for potential molding issues like thick sections, sharp corners, or lack of draft. I always tell clients, fixing a design on CAD is much cheaper than fixing a steel mold.
• Moldflow Simulation: Software predicts how plastic fills, packs, and cools. It helps us anticipate problems like weld lines, air traps, or warpage, allowing us to adjust the design or mold strategy (e.g., gate location, cooling layout) proactively.


  Process Optimization

• Scientific or Decoupled Molding: Instead of guesswork, these methods involve systematic testing. We isolate stages (fill, pack, cool) and optimize parameters based on data (cavity pressure, part measurements), not just machine settings. This finds a robust process window for consistent results.


  Equipment and Material Care

• Mold Maintenance: Regular cleaning, inspection, and repair prevent flashing, sticking, and ensure consistent part quality. Worn vents or damaged parting lines cause problems.
• Material Handling: Properly drying hygroscopic materials (like Nylon, PC, PET) is essential. Moisture causes defects. Consistent material blending is also key.
• Machine Calibration & Maintenance: Ensuring the machine performs reliably (temperatures, pressures, speeds) is fundamental.


  Training

• Operator Skills: Well-trained operators understand the process, can spot issues early, and perform basic troubleshooting.


  How can I make injection moulding more sustainable?

  Concerned about the environmental impact of plastic production? Energy consumption, material usage, and waste generation are significant factors that require attention for greener manufacturing.
  Boost sustainability by using energy-efficient machines (all-electric), incorporating recycled/bio-based materials, optimizing part/mold designs (thin-walling, hot runners), minimizing scrap, and improving energy management.

  Making injection molding greener involves attacking inefficiencies and waste streams. It’s not just about recycling; it’s a holistic approach.

  Energy Efficiency

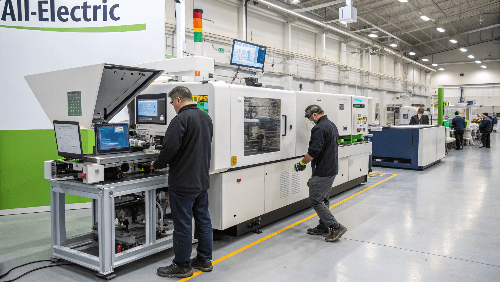

  Modern all-electric injection molding machines consume significantly less energy (often 30-60% less) compared to older hydraulic machines because they only use power when needed for specific movements. Optimizing cycle times also reduces overall energy consumption per part. Good factory planning, like insulating barrels and minimizing heat loss, helps too.

  Material Choices

• Recycled Content: Using post-consumer (PCR) or post-industrial recycled (PIR) plastics where feasible reduces reliance on virgin resources. Compatibility and performance testing are crucial.
• Bio-based Polymers: Exploring plastics derived from renewable resources (corn starch, sugarcane) can lower the carbon footprint, although properties and cost must be considered.


  Waste Reduction

• Design Optimization: Thin-walling parts reduces material consumption. Careful DFM minimizes the chance of scrap.
• Hot Runner Systems: These eliminate the cold runner (the plastic pathway in the mold), saving material with every shot. While the mold is more complex and expensive initially, the material savings can be substantial for high-volume runs and faster cycles can also result.
• Process Control: A stable, optimized process (as discussed earlier) directly minimizes scrap parts.
• Regrind Management: Properly collecting, grinding, and reusing runner scrap or rejected parts (where quality allows) is standard practice, but needs careful control to maintain material integrity.

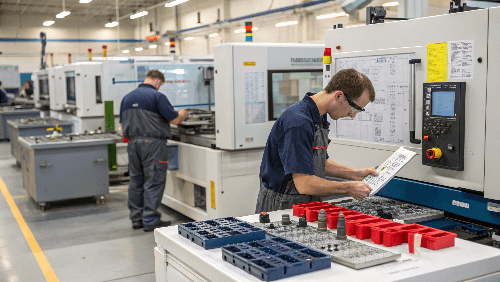

  How do you reduce rejection in injection molding?

  Are high scrap rates eating into your profits and causing delivery delays? Rejected parts mean wasted material, lost machine time, and potential quality escapes to the customer.
  Reduce rejection by implementing thorough DFM, using process simulation (Moldflow), ensuring precise mold construction, establishing robust process control via scientific molding, performing regular maintenance, and strict quality checks.

  Reducing rejects is fundamentally about controlling variables and preventing defects before they happen. It touches every stage of the process.

  Foundational Steps

• Design & Simulation (DFM/Moldflow): As I keep emphasizing, this is the first line of defense. Designing parts correctly for molding and simulating the process helps eliminate potential problems on paper, preventing many common defects like sink marks, warpage, or short shots. We analyze flow patterns, cooling uniformity, and potential stresses.
• Mold Quality: A precisely built mold with proper venting, cooling, and ejection systems is crucial. Worn or poorly designed molds are a major source of defects like flash or dimensional inconsistencies. Regular maintenance is non-negotiable.


  Process Control & Monitoring

• Scientific/Decoupled Molding: Establishing optimal and stable process parameters (melt temp, injection speed, pack pressure/time, cooling time) ensures consistency. We aim for a process that isn’t overly sensitive to minor variations.
• Material Preparation: Ensuring materials are consistently dried to the correct moisture level is vital, especially for engineering resins. Wet material causes splay, brittleness, and dimensional issues.
• Real-time Monitoring: Using cavity pressure sensors or machine monitoring systems can detect process deviations immediately, allowing for correction before many bad parts are made.


  Quality Assurance

• First Article Inspection (FAI): Thoroughly inspecting the first parts produced to ensure they meet all specifications.
• In-Process Checks (IPQC): Regular checks by operators or QC personnel during the production run to catch drifts or emerging issues.
• Root Cause Analysis: When defects occur, systematically investigate the cause (material, machine, mold, process) rather than just tweaking settings randomly. Use tools like the 5 Whys or Fishbone diagrams.


  Conclusion

  While injection molding has disadvantages like cost and lead time, proactive strategies including DFM, simulation, process optimization, and smart technology choices can effectively mitigate them, ensuring successful production.
