The Complete Guide to Injection Mold Sliders: Are You Using Them Correctly?

An injection mold slider is utilized during the injection molding process. It is utilized to create evenness and uniformity in the end product.
Without it, the process would be cumbersome and time-consuming.This blog will explain what an injection mold slider is and how it is utilized in the plastic injection molding process!

The best way to handle undercuts and complex geometries in injection molding is through the use of sliders, or more commonly known as slides or lifters. These are moving parts in the mold that slide to produce features like clips, holes, or threads, and return to allow the part to be ejected without destruction.

I’ve been in this industry for a long time, starting on the factory floor and eventually building my own company. I’ve seen firsthand how a well-designed slider can be the difference between a successful product launch and a costly failure. For business owners like Michael, who need consistent quality for their consumer electronics components, understanding sliders isn’t just a technical detail—it’s a critical piece of business strategy. A poorly designed slider can cause production delays, part failures, and endless headaches. On the other hand, a masterfully executed slider system ensures smooth, efficient production and perfect parts every time. Let’s dive into what makes them work, so you can make sure your projects run smoothly.

What Are the Core Principles of Injection Mold Slider Design?

You’ve approved a part design with a critical snap-fit feature, but your supplier is warning you about molding challenges. You’re worried about potential defects, tool damage, and production delays. This uncertainty is stressful and can put your entire project timeline at risk.
To ensure optimal performance, slider design must follow key principles. This includes calculating the correct angle for the locking heel (typically 3-5 degrees more than the angle pin), ensuring sufficient travel distance to clear the undercut, and using wear plates to protect the mold. These elements prevent flashing, sticking, and premature wear.

Getting the design right from the start is everything. I remember a project for a client years ago involving a casing for a handheld scanner. The design had two internal clips that were absolutely essential for assembly. The first mold maker they used didn’t get the slider design right. The angle pins were too steep, causing the sliders to move too quickly and slam into the end stops. This not only damaged the mold over time but also caused flash on the parts because the locking heel wasn’t engaging properly. We had to re-engineer the whole slider mechanism. It’s a lesson that sticks with me: the "small" details in mold design have huge consequences for production.
Let’s break down the critical parameters you need to get right.

The Nitty-Gritty of Slider Mechanics

A slider looks simple, but its smooth operation depends on a perfect balance of angles, forces, and dimensions. Getting any of these wrong leads to trouble. Think of it as a domino effect; one small error can topple the whole production run.

• Angle Pins (or Horn Pins): This is the driver of the slider. The angle is critical. A common rule of thumb is to keep it between 15 and 25 degrees.
  • Too shallow (<15°): The slider might not generate enough force to retract smoothly, especially if there’s friction. It could get stuck.
  • Too steep (>25°): The pin puts excessive pressure on the slider, which can cause wear or even break the pin over time. It also requires a longer mold opening stroke, which can slow down your cycle time.
• Locking Heel (or Locking Block): This is your insurance policy. When the mold is closed, the locking heel on the stationary side engages with the back of the slider, holding it firmly in place against the immense pressure of the injected plastic. The face of the heel must be angled—typically 3 to 5 degrees more than the angle of the angle pin. This creates a secure wedge effect, preventing the slider from being pushed back and causing flash.

• Slider Travel Distance: This one’s straightforward but vital. The slider must move far enough to completely clear the undercut on the plastic part. The formula is simple: Travel = (Undercut Depth + 1-2mm clearance). That extra couple of millimeters is a safety margin to prevent the part from catching on the slider during ejection. Here’s a table summarizing the key design parameters:	Parameter	Common Range/Rule	Why It’s Important
  Angle Pin Angle	15° – 25°	Balances smooth movement with mechanical stress. Too steep wears out the pin; too shallow can cause sticking.
  Locking Heel Angle	Angle Pin Angle + 3-5°	Creates a secure lock to counteract injection pressure. Prevents slider push-back and flash.
  Slider Travel	Undercut Depth + 1-2mm	Ensures the slider fully clears the part feature, preventing damage to the part during ejection.
  Gibs and Guides	Precise fit with 0.02-0.05mm clearance	Guides the slider’s movement accurately and prevents it from wobbling, which can cause wear and flash.

  Getting these dimensions right isn’t just about making a functional mold; it’s about making a reliable and long-lasting one that produces consistent parts, cycle after cycle.

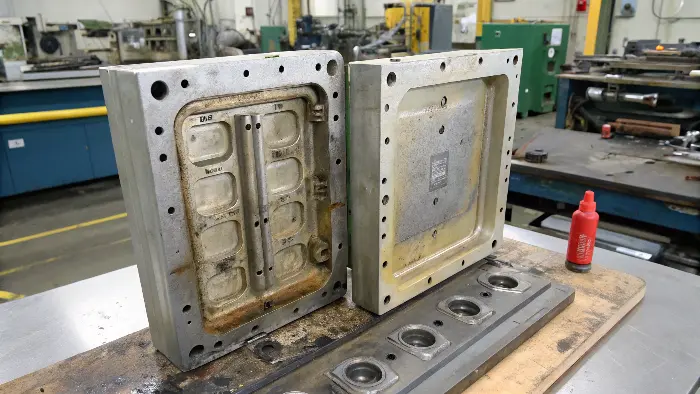

  How Do You Choose the Right Materials for Sliders?

  Your production is running, but you’re seeing flash and wear marks on parts after just a few thousand cycles. You realize the sliders in your mold are wearing out prematurely. Now you face costly tool repairs and production downtime, eating into your profit margins.
  Selecting the right material for sliders involves balancing durability, wear resistance, and cost. For most applications, pre-hardened tool steels like P20 are sufficient. However, for high-wear or high-precision parts, through-hardened steels like H13 or S7, often with a nitride coating for extra lubricity, are a much better investment.


I always tell my clients, "Don’t save a few hundred dollars on mold steel only to lose thousands in downtime and rejected parts." It’s a classic case of being penny-wise and pound-foolish. I learned this the hard way early in my career. We tried to save a client some money by using a standard P20 for a high-volume slider application with an abrasive, glass-filled nylon. The mold worked great for the first 10,000 shots. After that, the slider started to wear, and the parts fell out of spec. We had to pull the mold, remake the slider from hardened H13 steel, and get it nitrided. The initial savings were completely wiped out by the cost of the repair and the lost production time. It’s a mistake you only make once.

Balancing Performance and Budget

Choosing a slider material isn’t a one-size-fits-all decision. It’s a strategic choice based on the project’s specific demands. You need to consider the plastic being molded, the expected production volume, and the complexity of the slider itself.
Here’s a breakdown to help you decide:

• P20 (Pre-Hardened Steel):
  • Best For: Low to medium volume production (<100,000 cycles), non-abrasive plastics (like PP, PE, ABS).
  • Pros: Cost-effective, easy to machine. It’s the workhorse of the industry for a reason.
  • Cons: Softer than other tool steels, so it will wear faster with abrasive materials or under high stress.
• H13 (Through-Hardened Hot Work Tool Steel):
  • Best For: High volume production (>500,000 cycles), abrasive plastics (like glass-filled Nylon, PC), and sliders that experience high temperatures.
  • Pros: Excellent wear resistance, toughness, and holds up well under heat. It can be hardened to 48-52 HRC (Rockwell Hardness).
  • Cons: More expensive and takes longer to machine than P20.
• S7 (Through-Hardened Shock-Resistant Tool Steel):
  • Best For: Sliders that experience high impact or side loads, where chipping or breaking is a concern.
  • Pros: Extremely tough and shock-resistant. A great choice for long, thin sliders or complex actions.
  • Cons: Not as wear-resistant as H13 unless it receives a surface treatment.


    The Power of Surface Treatments

    Sometimes, the base material is only half the story. Surface treatments can dramatically boost a slider’s performance and lifespan.	Treatment	Description	Best For
    Nitriding	A heat treatment that diffuses nitrogen into the surface, creating a very hard case (60-70 HRC).	Adds extreme surface hardness and lubricity. Great for H13 sliders to reduce friction and prevent galling (a form of wear caused by adhesion between sliding surfaces).
    Nickel-Boron/DLC	Coatings applied to the surface. Diamond-Like Carbon (DLC) is one of the most popular.	Provides superior lubricity (low coefficient of friction). Ideal for medical parts where grease is not allowed or for very fast-cycling molds.

    For a business owner like Michael, making the right material choice means asking your mold maker the right questions. Don’t just accept the default. Ask: "What material are you planning for the sliders, and why did you choose it for my specific plastic and volume requirements?" A good partner will have a clear, data-driven answer.

The Design and Working Principle of the Injection Mold Slider

Injection mold sliders are essential for creating complex plastic parts with side features or undercuts and for these details that a standard two-plate mold can’t release. We need to understand how these sliders are constructed and how they operate is crucial for ensuring reliable, efficient molding and high-quality finished products.

A typical injection mold slider system is made up of several interdependent parts, each serving a specific role in the mechanism:

Slider Body

The main moving block that travels laterally within the mold. It holds the cavity surface that forms the side feature (such as a hole or slot) on the molded part.

Angle Pin (Wedge or Horn Pin)

This is the heart of the slider mechanism. The angle pin is fixed at an angle and translates the vertical movement of the mold opening and closing into the horizontal motion of the slider. Its precise angle is critical for smooth operation and longevity.

Guide Rails or Grooves

These ensure the slider’s path is accurate and repeatable. They prevent misalignment, sticking, or binding during the slider’s travel.

Locking Heel or Locking Block

When the mold is closed, the locking heel engages with the back of the slider, holding it firmly in place against the high pressure of injection. This prevents the slider from being pushed back and causing defects like flash.

Return Mechanism

After the mold opens and the part is ejected, a return spring or pull pin resets the slider to its starting position, ready for the next cycle.

Wear Plates

These are inserted between the slider and the mold base to reduce friction and wear, extending the lifespan and maintaining precision.

Stopper Bolt or Travel Limit

This component defines the maximum stroke of the slider, preventing over-travel and potential damage.

How the Slider Works: Step-by-Step Sequence

The operation of an injection mold slider is a carefully choreographed mechanical process:

Mold Closing

As the mold closes, the angle pin enters the hole or groove in the slider. The sloped surface of the pin pushes the slider sideways, positioning it to form the undercut or side feature in the mold cavity.

Plastic Injection and Cooling

Molten plastic is injected into the cavity, filling all features—including those formed by the slider. The part cools and solidifies around the slider.

Mold Opening and Slider Retraction

When the mold opens, the angle pin is withdrawn. Its angled surface causes the slider to move laterally away from the molded part, freeing the undercut or side feature. This allows the part to be ejected without damage.

Slider Reset

Once the part is ejected, the return mechanism (spring or pull pin) moves the slider back to its original position, ready for the next molding cycle.

How the Components Work Together

The effectiveness of an injection mold slider depends on the precise interaction of its components:

• The angle pin converts the vertical movement of the mold into the necessary horizontal motion for side action.

• The slider body and guide rails ensure smooth, accurate travel.

• The locking heel and stopper bolt secure the slider during injection, preventing unwanted movement.

• Wear plates and proper lubrication minimize friction and extend tool life.

• The return mechanism guarantees that the slider is correctly positioned for each cycle.

Durability and Maintenance

Because sliders operate under high loads and repeated cycles, their surfaces are often heat-treated (e.g., nitrided) to increase hardness and reduce wear. Regular maintenance—including cleaning, inspection, and lubrication—is essential to prevent issues like sticking, galling, or misalignment, all of which can cause costly downtime or part defects.

A clear understanding of the construction and working principle of injection mold sliders empowers you to design, operate, and troubleshoot molds for even the most complex part geometries. By ensuring that each component is properly specified and maintained, you can achieve consistent, high-quality production and avoid common pitfalls in the molding process.

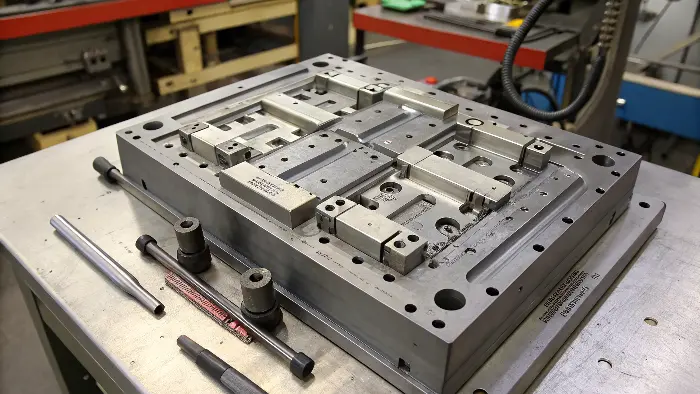

Choreographing the Mechanical Dance

Designing a multi-action slider system requires precision timing and thinking in four dimensions (the three spatial dimensions plus the sequence of movement). One small miscalculation in the cam path can cause a catastrophic crash inside the mold.
Here’s how the two main approaches work:

1. Slider-Activating-Slider:
   • How it works: A primary, larger slider (Slider A) is actuated by a standard angle pin or hydraulic cylinder. A cam track is machined into the side or top of Slider A. A follower pin on a secondary slider (Slider B) sits in this track. As Slider A moves, the cam track forces Slider B to move in a different, often perpendicular, direction.
   • Best for: Creating features on two different faces of a part where the movements need to be perfectly synchronized.
   • Critical element: The design of the cam track is paramount. The angles and radii must be smooth to ensure fluid motion without binding or excessive wear.
2. Two-Stage Sliders (using Dog-Leg Cams):
   • How it works: This is used when a slider needs to move in two different directions, like inward and then sideways. The slider itself has an L-shaped slot (the "dog leg"). The first angle pin moves it in one direction. As the mold opens further, that pin leaves the slot, and a second angle pin engages the other part of the L-shaped slot, pulling the slider in a second direction.
   • Best for: Forming a feature that is itself "hooked" or has a complex shape that can’t be cleared with a single linear pull.

   • Critical element: The transition point in the dog-leg cam must be perfectly smooth, and the timing of the pin engagement is everything. Let’s look at the pros and cons:	System	Pros	Cons
     Slider-Activating-Slider	– Can create very complex, synchronized movements. – Allows for compact mold designs.	– Complex to design and machine. – Higher risk of failure if not engineered perfectly. – Can be difficult to troubleshoot and repair.
     Two-Stage Sliders	– Solves problems for "un-moldable" hooked features. – Conceptually simpler than a slider-on-slider design.	– Requires a very long mold open stroke. – The dog-leg cam slot is a point of high stress and potential wear.

     For a business owner, the takeaway is this: if you have a complex part, don’t let a mold maker tell you it’s impossible without a thorough review. A skilled designer with experience in multi-action systems can often find a clever solution that saves you from having to compromise your product design or move to a more expensive multi-part assembly. This is where true molding expertise shines.

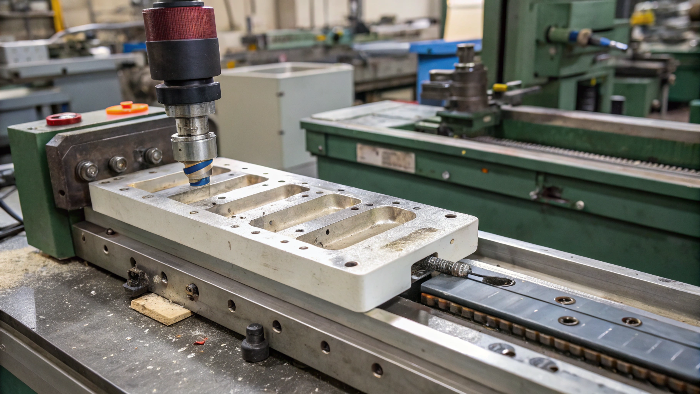

     How Do You Troubleshoot Common Slider Problems?

     Your production line is down. Again. The mold is pulled, and the diagnosis is a stuck or worn slider. Every hour of downtime costs you money and jeopardizes your delivery schedule. You’re frustrated with these recurring issues and need a way to prevent them, not just fix them.
     Troubleshooting sliders involves identifying the root cause of issues like flash, galling, or sticking. Flash is often due to a worn locking heel or insufficient clamp tonnage. Galling (wear from friction) points to poor lubrication or material choice. Sticking is typically caused by insufficient draft angles or a rough surface finish on the slider.

     Nothing is more frustrating for a plant manager than unscheduled downtime. I make it a point to visit my clients’ factories, and I see the stress it causes. The key isn’t just being good at fixing problems—it’s about preventing them from ever happening. The best troubleshooting is a robust preventative maintenance schedule. Think of it like changing the oil in your car. You don’t wait for the engine to seize; you do it on a schedule to keep it running smoothly. Molds are the same. Regular cleaning, inspection, and lubrication of sliders can prevent 90% of the common issues I see in the field. It’s a simple discipline that pays for itself many times over.

     A Practical Guide to Prevention and Solutions

     Let’s get practical. Here is a troubleshooting chart that you or your production team can use to diagnose and solve common slider problems. The best part? It focuses on prevention first.	Problem	Symptoms	Common Causes	Prevention & Solutions
     Flash	A thin layer of excess plastic is present on the part where the slider meets the cavity.	1. Worn or improperly angled locking heel. 2. Worn gibs allowing the slider to move. 3. Insufficient press clamp tonnage. 4. Debris on the mold face.	Prevention: Regular inspection of the locking heel and gibs. Ensure mold is cleaned every shift. Solution: Re-machine or replace the worn components. Verify clamp tonnage settings are correct for the mold.
     Galling / Seizing	Scratches or drag marks on the slider or in the mold base. The slider may become stuck.	1. Inadequate lubrication. 2. Incorrect material selection (e.g., two similar hardness steels rubbing). 3. Poor cooling, causing thermal expansion.	Prevention: Implement a strict lubrication schedule. Use dissimilar materials or surface treatments (like nitriding) on wearing surfaces. Solution: Polish out the galling. If severe, the components must be remade. Check cooling lines for blockages.
     Sticking / Dragging	The plastic part sticks to the slider upon ejection, causing stress marks or deformation.	1. Insufficient draft angle on the slider face. 2. Rough surface finish on the slider. 3. Undercut feature is too "sharp," creating a mechanical lock.	Prevention: Design sliders with at least 3 degrees of draft. Polish the slider face to a mirror finish (SPI A-2 or better). Solution: The mold must be modified to add more draft or polish the surface. Sometimes, adding a small "kicker" pin can help push the part off the slider.
     Broken Angle Pin	The angle pin has fractured.	1. Slider travel is too long, causing the pin to "bottom out." 2. Misalignment of the mold halves. 3. Incorrect material or heat treatment of the pin.	Prevention: Ensure travel stops are in place for the slider. Use high-quality, properly heat-treated pins. Regularly check mold alignment. Solution: Replace the broken pin. Investigate and fix the root cause (e.g., install a positive stop block) to prevent a recurrence.

     By empowering your team with this knowledge, you can shift from a reactive "firefighting" mode to a proactive, preventative one. This leads to more uptime, better part quality, and a less stressful production environment for everyone. That’s how you Master Molding Right. 🔥

     Conclusion

From simple design concepts and material choice to sophisticated multi-functional systems and fault detection, sliders are a must. They’re not simply mold components; they’re enablers of innovative product design. You get them correct and you have quality, efficiency, and profitability for your company. Don’t miss these key facts
