Are you a product designer who feels confident with your CAD models but a little lost when it comes to the actual machine that makes them? This gap can make it hard to design for manufacturability, leading to costly errors and delays. Understanding the machine is the first step to truly mastering your craft and avoiding these frustrating problems. Let’s bridge that gap together.
The most important parts of an injection molding machine are the injection unit, the clamping unit, the mold, and the control system. The injection unit melts plastic pellets and injects them under pressure. The clamping unit holds the mold shut against this immense force. The mold itself contains the cavity that gives the part its final shape. The control system acts as the brain, coordinating the timing and parameters of the entire process for consistent production.
Now that we have a bird’s-eye view, you can see how these core components work in harmony. But just knowing their names isn’t enough. To really improve your designs and communicate effectively with your manufacturing partners, you need to understand what each part does and why it matters. Let’s dive deeper into the fundamentals to build a solid foundation of knowledge that you can apply to every project.
What are the basics of an injection molding machine?
Have you ever stood beside a running injection molding machine and felt a bit overwhelmed by all the moving parts, sounds, and sheer power? It’s a complex piece of engineering. Not understanding its basic operating principle can make you feel disconnected from the manufacturing process, hindering your ability to create truly optimized designs. Let’s demystify the machine and walk through its fundamental cycle.
The basics of an injection molding machine center on a four-stage cycle: clamping, injection, cooling, and ejection. First, the clamping unit closes and holds the mold shut. Then, the injection unit injects molten plastic into the mold cavity. The plastic then cools and solidifies inside the mold. Finally, the mold opens, and the finished part is ejected. This simple, repeatable cycle is the heart of how millions of plastic parts are made every day.
The entire process is a beautifully orchestrated sequence. I remember the first time I watched this cycle up close in the factory. It felt like magic, seeing a handful of simple plastic pellets transform into a complex, finished part in less than a minute. But it’s not magic; it’s a precise combination of mechanics, hydraulics, and thermodynamics. Understanding this cycle helped me shift my perspective. I started seeing my 3D models not just as shapes on a screen, but as physical objects that had to flow, cool, and solidify within this process.
The Four-Stage Cycle in Detail
Let’s break down what happens at each stage. This is the core knowledge every designer should have.
| Stage | Action | Key Purpose |
|---|---|---|
| 1. Clamping | The two halves of the mold are brought together and held shut with immense force. | To ensure the mold remains sealed against the high pressure of the incoming molten plastic, preventing leaks (flash). |
| 2. Injection | The screw inside the injection unit pushes forward, forcing molten plastic into the mold cavity. | To completely fill the mold cavity with material before it starts to cool and solidify. This phase includes "packing" or "holding" pressure. |
| 3. Cooling | The mold is held closed while cooling lines circulate fluid (usually water) through the mold. | To allow the plastic part to solidify and harden enough to maintain its shape after being removed from the mold. This is often the longest part of the cycle. |
| 4. Ejection | The mold opens, and an ejector system (usually pins) pushes the solidified part out of the cavity. | To safely and consistently remove the finished part from the mold, preparing the machine for the next cycle. |
This cycle repeats, sometimes hundreds or thousands of times a day, to produce parts. The machine itself—the frame, the power system (whether it’s hydraulic, all-electric, or a hybrid), and all the safety guards—is built to perform this cycle with incredible speed and repeatability.
What are the three main parts of an injection molding machine?
You understand the basic cycle now, but which specific parts of the machine are doing all the heavy lifting? It’s easy to view the machine as a single unit, but this makes it tough to troubleshoot problems or have a technical discussion with a mold maker. Knowing the machine’s anatomy helps you speak the same language. Let’s dissect the machine into its three main functional systems.

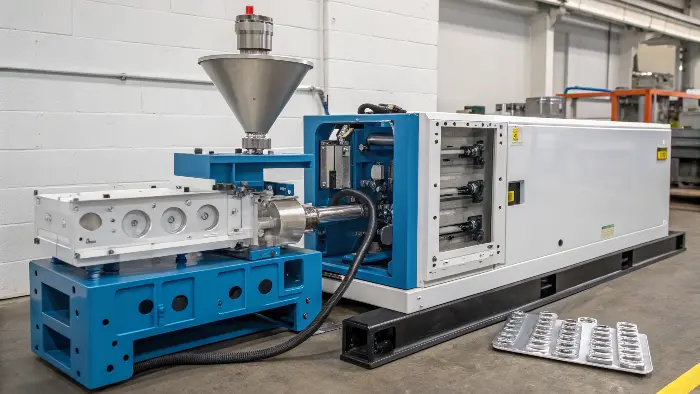

The three main parts of an injection molding machine are the Injection Unit, the Clamping Unit, and the Mold. The injection unit is responsible for melting the plastic and forcing it into the mold. The clamping unit acts like a powerful vise, holding the mold shut. The mold is the custom-made tool that contains the cavity that forms your part. These three systems must work together perfectly to create a good part.
Early in my career, I learned a tough lesson about the importance of these units. A client’s project was failing because the parts had excessive flash. The issue wasn’t the mold itself, but the machine. The clamping unit wasn’t strong enough to resist the injection pressure we needed. That expensive mistake taught me that these units are in a constant battle of forces. The injection unit pushes, and the clamping unit must push back even harder. Understanding this dynamic is critical.
The Injection Unit: The Heart of Melting
This is where the plastic material begins its transformation. It’s not just a simple plunger.
- Hopper: A large funnel on top where raw plastic pellets are loaded.
- Barrel: A heated cylinder that the plastic pellets fall into from the hopper.
- Reciprocating Screw: This is the most important component here. It sits inside the barrel and does two jobs. First, it rotates to draw plastic pellets forward, and the friction and heat from the barrel melt them into a liquid. Second, it acts like a plunger, moving forward to inject the molten plastic into the mold.
- Nozzle: The exit point of the barrel that presses up against the mold, creating a seal to inject the plastic.
The Clamping Unit: The Muscle of the Machine
This unit’s job is pure brute force and precision. Its performance is rated in tonnage (e.g., a 200-ton press).
- Platens: There are two main plates: a fixed platen (where the nozzle-side of the mold sits) and a moving platen (which opens and closes).
- Tie Bars: Four large steel rods that connect the ends of the press and guide the moving platen, ensuring it stays perfectly aligned.
- Clamping Mechanism: This is the system that generates the force. There are two common types:
| Clamping Type | How it Works | Pros | Cons |
|---|---|---|---|
| Toggle | Uses a mechanical linkage system, like folding your elbow, to lock the platen in place. | Very fast, energy-efficient, and provides excellent locking force. | Can be mechanically complex and requires more maintenance. |
| Hydraulic | Uses a large hydraulic cylinder to directly push the moving platen closed and hold it. | Simpler design, easy to set the exact clamping force, good for large molds. | Can be slower and less energy-efficient than toggle systems. |
The mold is the third critical part, but it’s a custom tool specific to your part. The injection and clamping units are the core of the machine that operates that tool.
What are the 4 variables of injection molding?
Your design is perfect on paper, and the machine’s hardware is ready to go. So why do parts sometimes come out with defects like warping, sink marks, or incomplete fills? The machine is only half the equation. The process itself is governed by a few core variables. Ignoring them is a recipe for inconsistent quality and production headaches. Let’s uncover the four pillars that control every single shot.
The four fundamental variables of injection molding are Pressure, Temperature, Time, and Distance (or Volume). These are often called the "Big Four." Temperature controls the plastic’s flowability. Pressure is the force that moves the plastic. Time dictates the duration of each cycle stage. And Distance/Volume determines how much plastic is injected. Balancing these four variables is the absolute key to achieving consistent, high-quality parts.
I once worked on a project for a medical device that had a very thin wall. We kept getting "short shots," where the mold didn’t fill completely. The machine operator’s first instinct was to crank up the injection pressure. But I had a hunch the material wasn’t fluid enough to travel through the thin section. We decided to increase the barrel temperature by just 10°C. The problem vanished instantly. This showed me that these variables are a delicate dance; you can’t just change one without considering the others.
The Interplay of Process Variables
These four variables are deeply interconnected. Changing one will almost always affect the others. A skilled processor knows how to adjust them in harmony to achieve the desired result.
| Variable | What It Is | Its Impact on the Part |
|---|---|---|
| Temperature | Includes the temperature of the molten plastic (barrel temperature) and the temperature of the mold surface (mold temperature). | Affects the plastic’s viscosity (how easily it flows). Higher temps mean better flow but can degrade the material or increase cooling time. Mold temp affects surface finish and part shrinkage. |
| Pressure | Includes injection pressure (to fill the mold) and holding/packing pressure (to compensate for shrinkage as the part cools). | Affects whether the part is fully packed out. Too little pressure causes short shots or sink marks. Too much can cause flash (plastic leaking out of the mold) or stress the part. |
| Time | Includes injection time, holding time, cooling time, and the overall cycle time. | Determines the efficiency of the process. Cooling time is especially critical; if it’s too short, the part will be soft and may warp when ejected. If it’s too long, it wastes time and money. |
| Distance / Volume | This is the "shot size," or how far the screw travels forward to inject the plastic. It determines the volume of material pushed into the mold. | Controls the amount of material in the part. A precise shot size ensures a "cushion" of material is left at the end of injection, which is then used during the holding pressure phase to pack out the part. |
Mastering the relationship between these four variables is what separates an average molder from a great one. As a designer, knowing how they influence your part’s final quality allows you to have much more productive conversations about troubleshooting and optimization.
What are the key parameters of injection molding?
You now understand the "Big Four" variables. But when you look at a machine’s control screen, you don’t see simple dials for "Pressure" or "Temperature." You see a list of specific settings like "Injection Speed," "Back Pressure," and "Hold Time." How do you connect the core variables to these actual machine parameters? This disconnect can make you feel powerless. Let’s bridge that final gap.
Key injection molding parameters are the specific machine settings used to control the four core variables. These include injection speed, holding pressure, back pressure, screw speed, cooling time, and barrel temperature zones. Each parameter is a precise lever an operator uses to fine-tune the process, solve part defects, and optimize the cycle for quality and speed. Understanding these parameters gives you granular control over the final product.
Finding the perfect combination of these parameters is what we call establishing a "process window." It’s the range of settings that produces good, repeatable parts. I’ve spent countless hours with technicians, standing by the machine, tweaking one parameter at a time and carefully inspecting the results. It’s meticulous work, but when you finally dial it in and see perfect parts coming off the line, one after another, it’s incredibly satisfying. This is what "Master Molding Right" is all about.
From Variables to Machine Settings
Let’s look at some of the most important parameters and see how they relate to the Big Four variables. This is the language of the machine.
| Parameter | What It Controls | Related Variable(s) | Impact on the Part |
|---|---|---|---|
| Injection Speed | The rate (e.g., mm/sec) at which the screw moves forward during injection. | Pressure, Time | Affects how fast the mold fills. Can influence surface finish, weld lines, and shear heating of the material. Too fast can cause flash; too slow can cause short shots. |
| Holding Pressure | The amount of pressure applied after the initial injection fill is complete. | Pressure, Time | Compensates for material shrinkage as the part cools. Critical for preventing sink marks and voids. Set as both a pressure (PSI) and a time (seconds). |
| Back Pressure | Pressure that builds up in front of the screw as it rotates to melt new plastic for the next shot. | Temperature, Volume | Ensures a consistent melt density and a homogenous mix of the plastic and any colorants. Too high can degrade the material; too low can cause inconsistencies. |
| Screw Speed (RPM) | The rotational speed of the screw as it prepares the next shot. | Temperature, Time | Affects how quickly the next shot is ready, influencing cycle time. Also imparts shear heat into the plastic, affecting the melt temperature. |
| Barrel Temperatures | The temperature settings for different zones along the barrel (e.g., rear, middle, front, nozzle). | Temperature | Creates a temperature profile to gradually melt the plastic pellets as they travel down the barrel, ensuring a consistent melt without burning the material. |
| Cooling Time | The amount of time the mold remains closed after injection and holding are complete. | Time | Directly controls how solidified the part is before ejection. This is often the single biggest factor in the overall cycle time. |
Understanding these specific parameters allows you, the designer, to better understand process data sheets and have more meaningful discussions about why a certain feature on your part might be causing a manufacturing challenge.
Conclusion
An injection molding machine can seem intimidating, but it operates on clear principles. It breaks down into the injection unit, the clamping unit, and the mold. The entire process is governed by the delicate balance of four variables: pressure, temperature, time, and distance. These are controlled by specific machine parameters. Understanding these elements empowers you to design better, more manufacturable products and collaborate more effectively with your production team.
