Struggling to pick the suitable plastic for your detailed parts? Making the wrong choice can lead to failed components and wasted resources, costing you time and money.
Selecting the right plastic involves balancing mechanical properties, thermal resistance, chemical compatibility, cost, and specific application needs like optical clarity or dimensional stability for high-precision results.Choosing materials is just one piece of the puzzle when aiming for those really tight tolerances. Precision injection molding isn’t just about the plastic; it’s a whole system that needs careful attention. Getting this right sets the foundation for everything else.
Material selection for precision injection molding is not a catalog exercise. A resin must fit the part geometry, tolerance plan, mold design, processing window, operating environment and cost target. The best material is rarely the strongest material on paper. It is the material that can meet the requirement repeatedly in molded form.
What is High-Precision Plastic Injection Molding?
Defining Precision
Precision isn’t just a buzzword here. We’re talking about dimensional tolerances that might be ±0.001 inches (0.025mm) or even tighter. It also includes:
- Geometric Dimensioning and Tolerancing (GD&T): Controlling not just size, but also form, orientation, and location of features.
- Surface Finish: Achieving specific textures or smoothness, crucial for optical or sealing surfaces.
- Repeatability: Ensuring every part produced, from the first to the millionth, is virtually identical within the specified tolerances.
Key Differences from Standard Molding
Feature Standard Molding High-Precision Molding Tolerances Looser (e.g., ±0.005″ or more) Tighter (e.g., ±0.001″ or less) Complexity Simpler geometries Complex, intricate designs Materials Commodity plastics common Engineering/High-performance plastics Mold Cost Lower Higher due to precision engineering Process Control Standard monitoring Advanced real-time monitoring Applications General consumer goods Medical, electronics, automotive Achieving this level of precision demands advanced materials, sophisticated mold engineering, and tightly controlled processing conditions, which we’ll explore next.
Polymer Optics and Advanced Materials?
Materials for Optical Applications
Optical parts demand exceptional clarity, stability, and specific refractive indices. Common choices include:
- Polycarbonate (PC): High impact resistance, good clarity, high-temperature resistance. Often used for lenses, light pipes, and diffusers.
- Polymethyl Methacrylate (PMMA / Acrylic): Excellent optical clarity (often better than PC), good UV resistance, scratch resistance. Used for lenses, light guides, and windows.
- Cyclic Olefin Copolymer (COC) / Cyclic Olefin Polymer (COP): Low moisture absorption, excellent clarity, good chemical resistance, often used in medical and diagnostic optics.
High-Performance Polymers for Demanding Environments
Beyond optics, many precision parts need to withstand heat, chemicals, or high mechanical loads:
- Polyether Ether Ketone (PEEK): Exceptional mechanical strength, high-temperature performance (continuous use up to 250°C), excellent chemical resistance. Used in aerospace, medical implants, and industrial components.
- Liquid Crystal Polymer (LCP): Excellent flowability for thin walls, high-temperature resistance, outstanding dimensional stability, low coefficient of thermal expansion. Common in connectors and electronic components.
- Filled Materials: Adding glass fibers, carbon fibers, or minerals can drastically enhance stiffness, strength, dimensional stability, and heat resistance, though often at the expense of surface finish or isotropic behavior. Understanding how fillers affect flow and shrinkage is vital.
Choosing the right material involves carefully considering all these factors against the part’s functional requirements and the molding process itself, especially how the material shrinks.
The Science of Shrinkage Control?
Why Does Plastic Shrink?
As plastic cools in the mold, its molecules pack closer together, reducing the overall volume. Several factors influence the amount and direction of shrinkage:
- Material Type: Crystalline materials (like Nylon, Polypropylene) generally shrink more and less uniformly than amorphous materials (like PC, ABS). Fillers also significantly alter shrinkage.
- Processing Conditions:
- Melt Temperature: Higher temps can sometimes lead to more shrinkage.
- Injection Pressure & Packing Pressure: Higher pressure forces more material in, counteracting some shrinkage.
- Cooling Rate & Time: Faster cooling can freeze stresses and affect final dimensions.
- Mold Temperature: A hotter mold allows slower cooling, potentially leading to more uniform but potentially higher overall shrinkage.
- Part Design: Thicker sections shrink more than thinner sections. Wall thickness variations can cause warpage due to differential shrinkage.
- Gate Location & Size: Affects how material packs into the cavity, influencing shrinkage patterns.
Strategies for Control
Strategy Description Impact Material Selection Choose materials with low, predictable, and uniform shrinkage. Consider filled grades for stability. Fundamental step, sets baseline shrinkage rate Mold Flow Analysis Simulate the injection process to predict flow patterns, cooling, warpage, and shrinkage. Allows design optimization before cutting steel Mold Design Compensate for expected shrinkage in cavity dimensions. Optimize gate location/size and cooling channels. Critical for achieving target dimensions Process Optimization Fine-tune injection speed, pressure, pack/hold time, melt/mold temperatures, and cooling time empirically. Adjusts final dimensions and reduces variation Post-Mold Conditioning Some materials (like Nylon) absorb moisture, affecting dimensions. Conditioning may be needed. Stabilizes dimensions for certain materials Mastering shrinkage control is a blend of science, experience, and meticulous process control, tightly linked to the engineering of the mold itself.

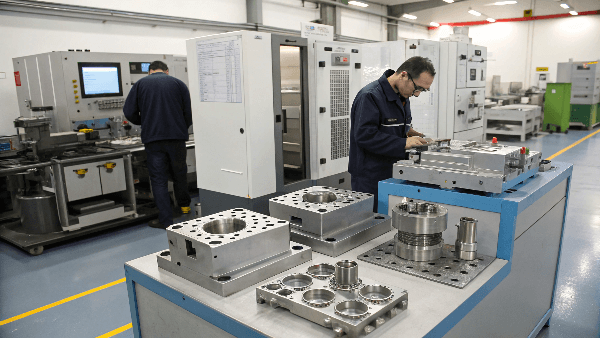

Precision Mold Engineering?
Core Elements of Precision Molds
- Material Selection: Molds are typically made from high-hardness, pre-hardened, or through-hardened tool steels (like H-13, S-7, P-20). These materials offer durability, wear resistance, and dimensional stability under high pressures and temperatures. Surface coatings (like PVD) can further enhance performance.
- Machining Tolerances: The mold components themselves must be machined to tolerances significantly tighter than the final part tolerances. This often requires high-speed CNC machining, Wire EDM, and Sinker EDM processes capable of achieving accuracies in the single-micron range.
- Cooling System Design: Uniform and efficient cooling is critical for controlling shrinkage and reducing cycle times. Precision molds feature complex cooling channels strategically placed to ensure consistent temperature across the cavity and core. Conformal cooling channels that follow the part geometry are increasingly used.
- Gating and Venting: Gate design (type, size, location) is crucial for controlling material flow, packing, and minimizing cosmetic defects or residual stresses. Proper venting allows trapped air to escape the cavity quickly, preventing short shots or burn marks, which is especially critical in complex, thin-walled precision parts.
- Alignment and Interlocks: Precise alignment between mold halves is maintained through high-quality leader pins, bushings, and interlocks to prevent flashing and ensure part consistency.
Building and maintaining these sophisticated molds requires specialized skills and equipment, forming a key part of the technical requirements for success.

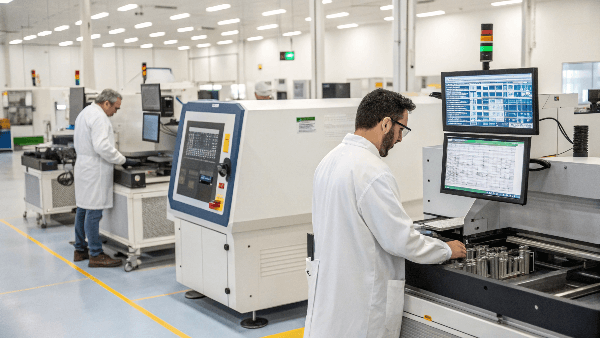

Technical Requirements for Success?
Are you missing key elements needed to consistently produce high-precision parts? Achieving top-tier results demands more than just good intentions; it requires a specific set of resources and processes.
Success in precision molding hinges on integrating advanced machinery, skilled personnel, robust quality control systems, stable processes, and meticulous attention to detail from design through production.
Pulling off high-precision injection molding isn’t a matter of luck. It requires a dedicated infrastructure and a culture of precision throughout the entire operation. When I set up my own company, ensuring we had the right technical foundation was paramount. It’s an ecosystem where every element must function reliably.
Essential Components:
- High-Precision Injection Molding Machines: These machines offer superior control over injection speed, pressure, and temperature. Electric or hybrid machines are often preferred for their repeatability and precision compared to purely hydraulic machines. Features like closed-loop process control are standard.
- Skilled Personnel:
- Designers (like the project stakeholder): Need deep understanding of material properties, DFM (Design for Manufacturability) principles for precision, and mold design constraints.
- Mold Makers: Highly skilled technicians experienced in working with tight tolerances and advanced machining techniques.
- Process Engineers/Technicians: Experts in setting up, optimizing, and monitoring the molding process to maintain stability and consistency.
- Advanced Quality Control:
- Metrology Equipment: High-resolution measurement tools like CMMs (Coordinate Measuring Machines), optical comparators, and vision systems are essential for verifying part dimensions.
- Statistical Process Control (SPC): Monitoring key process parameters and part dimensions in real-time to detect and correct deviations before out-of-spec parts are produced.
- Stable Environment: Temperature and humidity fluctuations in the production environment can affect material behavior and machine performance. Climate control is often necessary.
- Robust Mold Maintenance Program: Precision molds require regular cleaning, inspection, and preventative maintenance to ensure continued accuracy and longevity.
Meeting these technical requirements allows manufacturers to serve industries where precision is not just desired, but absolutely mandatory.Industry Applications and Future Trends?
Wondering where precision injection molding makes the biggest impact? This advanced capability is crucial in sectors where failure is not an option and miniaturization is key.
Precision injection molding is vital in medical devices, electronics (connectors, sensors), automotive components (fuel systems, sensors), aerospace, and optical applications like lenses and light guides.
The demand for smaller, lighter, and more complex components drives the need for precision molding across many high-tech industries. For designers like the project stakeholder working in consumer electronics, this means creating intricate housings, connectors, and internal components with extreme accuracy. I’ve personally seen how advancements in molding enable innovation in these fields.Key Application Areas:
- Medical: Surgical instruments, drug delivery devices, diagnostic components, implants. Biocompatibility, sterilization resistance, and absolute reliability are critical.
- Electronics: Micro-connectors, sensor housings, mobile phone components, optical fiber connectors. Miniaturization and high dimensional stability are key drivers.
- Automotive: Sensor housings, fuel system components, powertrain parts, interior switches. Reliability under harsh conditions (temperature, vibration, chemicals) is essential.
- Aerospace: Lightweight structural components, connectors, interior parts. High strength-to-weight ratio and reliability are paramount.
- Optics: Lenses, prisms, light pipes, camera components. Optical clarity, precise surface profiles, and dimensional stability are required.
Future Directions:
- Micro-molding: Producing parts or features measured in microns, often weighing fractions of a gram.
- Multi-Material / Two-Shot Molding: Combining different materials (e.g., rigid and soft-touch) in a single part with high precision.
- Increased Automation & AI: Using robotics for part handling and AI for real-time process optimization and quality control.
- Sustainable Materials: Developing bio-based or recycled high-performance polymers suitable for precision applications.
- Integration with Additive Manufacturing: Using 3D printing for rapid prototyping or creating complex mold inserts (conformal cooling).
These trends highlight the dynamic nature of precision molding, constantly pushing the boundaries of speed and consistency.Manufacturing Speed and Consistency?
Can you achieve high production volumes without sacrificing precision? Balancing the speed required for mass production with the unwavering consistency demanded by tight tolerances is a major challenge.
Achieving both speed and consistency in precision molding relies on optimized cycle times through efficient mold cooling, automation, stable processes, and real-time monitoring to ensure every part meets specifications.
In manufacturing, time is money. While precision molding requires meticulous attention to detail, it also needs to be efficient enough for large-scale production, like the consumer electronics components the project stakeholder designs. The goal is to minimize cycle time – the total time to produce one part – while guaranteeing that every single part is identical within the tight tolerance window. It’s a balancing act I learned to manage closely in my business.
Balancing Speed and Precision:
- Cycle Time Optimization: The longest phase is typically cooling. Efficient mold cooling design (as discussed under mold engineering) is crucial. Thin-wall design, where appropriate, also reduces cooling time.
- Automation: Robots are often used for part removal, inspection, and packaging. This reduces variability introduced by human operators and allows for faster, continuous operation (lights-out manufacturing).
- Process Stability: Maintaining consistent melt temperature, injection pressure, pack pressure, mold temperature, and timing shot after shot is fundamental. Closed-loop process control on modern machines helps achieve this.
- Hot Runner Systems: These can eliminate the runner scrap, reducing material waste and often allowing for faster cycle times compared to cold runner systems, although they add complexity and cost to the mold.
- Real-time Monitoring & SPC: Continuously tracking key process parameters and critical part dimensions allows for immediate adjustments if the process starts to drift, preventing the production of large batches of defective parts.
Achieving high speed and high consistency requires significant investment in technology, process control, and expertise, but it’s essential for competing in demanding markets.Start With Service Conditions
Define temperature, load, chemical exposure, UV, moisture, friction, impact, flame rating, color, surface finish and expected life. A material that works indoors may fail outdoors. A resin that is strong when dry may change after moisture absorption. Service conditions should guide the shortlist.
Shrinkage and Dimensional Stability
Precision parts need realistic shrinkage expectations. Semi-crystalline materials often shrink more than amorphous materials. Glass fiber can reduce shrinkage but introduce anisotropy and warpage. Mold design and process control must match the material’s behavior.
Mechanical Strength vs Moldability
High-performance materials may be harder to process, more expensive, or more sensitive to drying and temperature. If the part does not need extreme performance, a more moldable resin may deliver better production stability. Material selection should balance function and manufacturability.
Additives and Compliance
UV stabilizers, flame retardants, impact modifiers, fillers, colorants and plasticizers can all change molding behavior. Compliance requirements such as RoHS, REACH, UL or food-contact rules should be defined early. Do not approve a material without checking the final market requirement.
Validate With Molded Samples
Material decisions should be validated with molded samples when risk is high. CNC or 3D printed prototypes cannot fully represent shrinkage, weld lines, gate marks, molded stress or actual surface finish. Trial samples provide the evidence needed for production decisions.
RFQ and Validation Checklist
- 3D CAD file and 2D drawing with critical dimensions marked
- Material grade, color, surface finish, texture and performance requirements
- Expected annual volume, prototype quantity or production batch size
- Cosmetic, assembly, packaging and inspection requirements
- Current samples, defect photos or prior mold information if available
- Target market requirements such as UL, RoHS, REACH, UV exposure or other compliance needs when relevant
Sample Approval Should Follow the Real Use Case
A molded sample should be approved against the way the part will actually be used. If the part is assembled with screws, torque and boss strength matter. If it is visible to consumers, lighting and scratch standards matter. If it is an outdoor component, UV and color retention matter. If it is a precision part, datum-based measurement and repeatability matter.
Common Mistakes to Avoid
- Approving samples only by photos without dimensions or functional checks
- Comparing mold quotes without checking steel, cavity count, trial rounds and correction responsibility
- Choosing material by name without reviewing service conditions and molding behavior
- Ignoring packaging and handling until after the parts are already molded
- Changing product design after tooling starts without updating drawings and approval records
FAQ
How do I choose material for precision injection molding?
Start with service conditions, tolerance needs, moldability, cost, compliance and validation samples.
Which material is best for tight tolerances?
There is no universal best resin. Dimensional stability depends on material, geometry, mold design and process control.
Do additives affect precision?
Yes. Fillers, flame retardants, pigments and modifiers can affect shrinkage, flow, warpage and appearance.
Should material be tested before tooling?
For high-risk applications, molded sample validation or material trials are recommended.
Can CKMOLD advise material selection?
Yes. CKMOLD can review application requirements, resin options, tooling risk and trial results.
Conclusion
Choosing the right plastic is vital, but precision injection molding success demands mastering materials, shrinkage, mold engineering, technical requirements, and balancing speed with consistency for specific industry needs.
