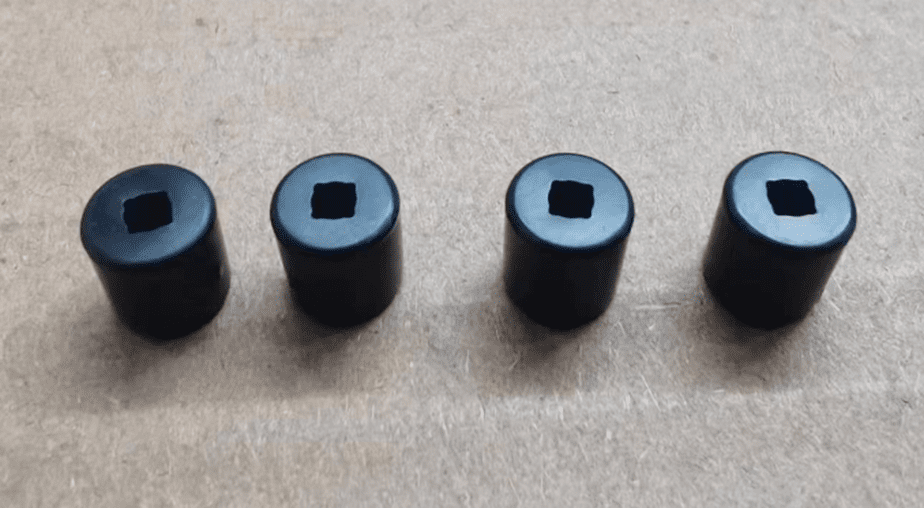

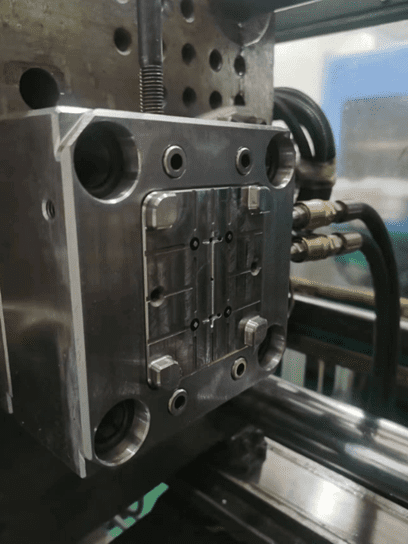

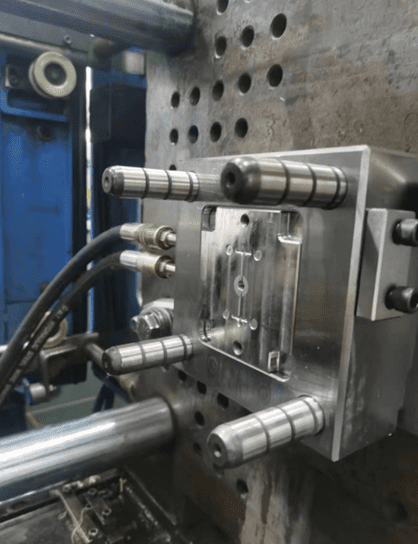

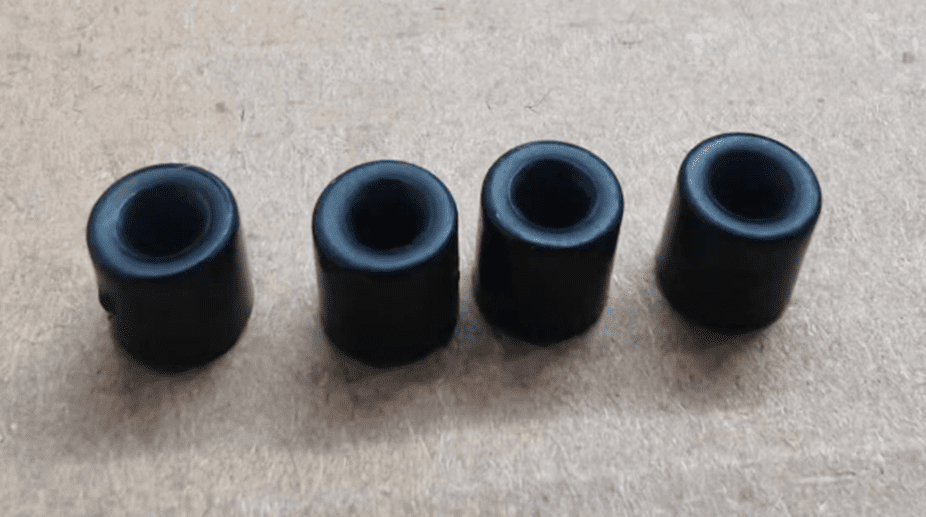

Cold runner sub gate, product size: 6.613X6.613X7.00mm, mold size: 250*250*270mm, 4 cavities. The part material is PVC, HARDNESS: SHORE D, 70 ± 10 DUROMETER, and the steel material is Stainless steel 420SS, Mold Trial Press machine: HaiTan-90T.
| Product Material | PVC |
|---|---|
| Mold Base Material | 1050 |
| Cavity & Core Material | 420SS |
| Cav. | 4 |
| Runner | Cold runner sub gate |
| Finish | SPI-B2 |
