Designing medical devices is hard work. You face strict safety rules and tight deadlines every day. If you pick the wrong material, your product fails safety testing. This costs you a lot of time and money. Medical-grade TPE can solve these problems and make your design process much easier.
Medical-grade Thermoplastic Elastomer (TPE) is a flexible plastic used in healthcare devices. It replaces rubber and PVC because it is safe, easy to mold, and free from harmful chemicals like latex or phthalates. Medical TPE meets strict rules like FDA and ISO 10993. It is commonly used for tubing, syringe seals, and wearable device bands. It gives designers a soft, skin-friendly material that can be made in high volumes at a low cost.
Let us look closer at why this material is a great choice for medical design and how you can use it.
What are the strict requirements for medical-grade TPE?
You want your medical product to be perfectly safe. But bad materials can release toxins into the human body. This causes allergic reactions or worse. You need a material that passes all safety tests without failing.
Medical-grade TPE must pass strict biocompatibility tests, such as ISO 10993 and USP Class VI. It must not cause skin irritation, toxicity, or allergic reactions. It must also be easy to sterilize using methods like gamma radiation, ethylene oxide, or steam autoclaving. Furthermore, it must contain no latex, PVC, or harmful plasticizers like BPA and phthalates. This ensures it is completely safe for direct human contact.
Breaking Down the Safety Standards
When I first started helping clients make medical parts, I saw how confusing the rules were. Medical parts touch human skin, blood, and medicine. So, the plastic must be completely clean.
First, we must look at ISO 10993. This is a set of tests. It checks if the plastic hurts living cells. If a TPE passes this, it means it is safe. USP Class VI is another big rule. It is even more strict. It proves the material is safe to put inside the body for a short time.
Second, the plastic must survive sterilization. Hospitals clean tools to kill germs. They use very hot steam, strong gases, or radiation. Some plastics melt or turn yellow when they get cleaned. Good medical TPE stays strong and keeps its shape after cleaning.
Third, we must look at what is inside the plastic. Old plastics used bad chemicals to stay soft. Latex causes allergies for many people. Medical TPE is great because it is naturally soft. We do not need to add bad chemicals to it.
Here is a table to help you understand what makes a TPE ready for medical use:
| Requirement Area | What it means | Why it matters |
|---|---|---|
| Biocompatibility | Must pass ISO 10993 and USP Class VI | Proves the plastic is safe for human bodies. |
| Sterilization | Can take steam, gas, or radiation | Hospitals can clean the part safely. |
| Chemical Purity | No latex, PVC, or phthalates | Prevents allergies and stops toxins from leaking. |
| Clarity | Can be made clear | Doctors can see fluids flowing inside tubes. |
If you pick a TPE that meets all these rules, your medical device will be safe and successful.
How does medical-grade TPE compare to PVC or silicone?
Picking the right soft material is confusing. You might think PVC is cheap or silicone is the best quality. But PVC has bad chemicals, and silicone is very slow to mold. You need a better balance of cost and speed.
Medical-grade TPE is better than PVC because it does not use harmful phthalates to stay soft. It is also much safer for the environment. Compared to silicone, TPE is much faster and cheaper to mold. Silicone needs a long curing time and special liquid injection machines. TPE melts like normal plastic, so you can use standard injection molding machines. This lowers production costs while keeping the material soft.
Why TPE Wins the Material Fight
In my mold factory days, I saw many designers struggle with material choice. Jacky, you know how hard it is to balance a tight budget with good quality. Let us think critically about PVC, silicone, and TPE.
PVC is very common. It is very cheap. But PVC is hard by nature. To make it soft for medical tubes, factories add plasticizers. These chemicals can leak into the medicine or blood. This is very bad. PVC also makes toxic smoke when burned. TPE does not need these chemicals. It is safe and soft right from the start.
Silicone is another choice. It is very heat resistant and very soft. But silicone is thermoset. This means once you mold it, you cannot melt it again. You cannot recycle the waste. Silicone also needs a very long time in the mold to cure. It needs special machines. TPE is a thermoplastic. You mold it just like ABS or PC. The cycle time is fast. If you have waste, you can grind it and use it again.
Let us look at how they compare in a simple table:
| Feature | Medical TPE | Flexible PVC | Medical Silicone |
|---|---|---|---|
| Safety Profile | Very High | Low (can leak chemicals) | Very High |
| Cycle Time | Fast (seconds) | Fast (seconds) | Slow (minutes) |
| Recyclable | Yes | Yes (but toxic) | No |
| Machine Type | Standard Injection | Standard Injection | Liquid Injection |
| Overall Cost | Medium | Low | High |
By using TPE, you save machine time and protect the patient. It gives you the best of both worlds.
What are the most common applications of TPE in healthcare?
You might struggle to find parts that need a soft touch but high durability. Hard plastics can hurt the patient. But finding the right soft part that bonds well in complex devices is a big challenge.
Medical TPE is widely used in healthcare for parts that touch the patient or handle fluids. Common applications include medical tubing, IV bags, and drip chambers. It is also perfect for syringe plunger seals, soft-touch grips on surgical tools, and masks for breathing machines. Because TPE bonds well to hard plastics, it is often used in two-shot molding to make wearable health trackers and grips on medical monitors.
Where We See TPE in Real Life
Over the years, I have helped design molds for many different medical parts. The ways we use TPE keep growing. Let us break down the main ways this material helps doctors and patients.
The first big area is fluid delivery. Think about IV tubes and blood bags. The plastic must be clear so nurses can see the fluid. It must bend without breaking. TPE is perfect for this. It is clear, soft, and does not kink easily. It also does not leak bad chemicals into the medicine.
The second area is seals and stoppers. Inside a syringe, there is a small black or clear rubber piece. It pushes the medicine out. This used to be rubber. Now, it is TPE. TPE gives a perfect seal against the hard plastic barrel. It stops leaks and glides smoothly.
The third area is wearable devices and grips. Medical tools need to be held tightly by doctors. A hard plastic handle can slip. By overmolding TPE onto a hard ABS handle, we give the doctor a safe, soft grip. Also, smart health watches use TPE for the wristband. It touches the skin all day, so it must be safe and soft.
Here is a table showing the types of parts and why TPE is used:
| Medical Application | Why TPE is the best choice |
|---|---|
| IV Tubing | Clear, soft, no kinks, safe for fluids. |
| Syringe Seals | Smooth glide, perfect seal, cheap to mold. |
| Surgical Tool Grips | Bonds to hard plastic, stops slipping. |
| Breathing Masks | Fits softly on the face, seals well, safe on skin. |
TPE is flexible in how it feels and how we can use it.

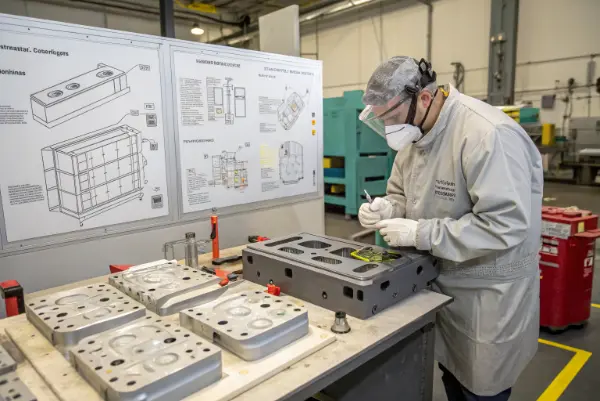

How do we design and mold medical-grade TPE properly?
You have your beautiful design ready. But molding soft TPE can cause big problems on the shop floor. You might see shrinkage, flash, or bad bonding in two-shot molds. These defects ruin your parts and slow down your project.
To mold medical TPE successfully, you must control shrinkage and tool temperature. TPE shrinks differently depending on how it flows in the mold. You should use large gates to pack the mold well. For overmolding, make sure the TPE is compatible with the hard plastic base, like PC or ABS. Keep the mold temperature between 20°C and 50°C. Venting is also very important to avoid trapped air and burn marks.
Tips for Perfect TPE Molding
As someone who ran a mold factory, I know that soft materials can be tricky. Jacky, as a designer, you know that a good mold design saves hours of trouble later. Let us look at how to get TPE right the first time.
First, we must talk about shrinkage. TPE shrinks more than hard plastic. And it shrinks differently in the flow direction compared to across the flow. You must add the right shrink rate to your CAD model. Always ask your material supplier for the exact numbers.
Second, let us look at the gates. TPE is thick when it melts. It does not flow like water. You need big gates to push the plastic into the mold. If the gate is too small, the plastic gets too hot from friction. This can ruin the medical safety of the material.
Third, venting is key. When plastic rushes into the mold, it pushes air out. TPE flows fast. If the air cannot escape, it gets trapped. This makes black burn marks on your part. You must cut good air vents at the end of the flow path.
Finally, think about overmolding. If you want TPE to stick to a hard plastic like PC, you must keep the mold hot. The heat helps the two plastics melt together.
Here is a guide for designing TPE molds:
| Design Rule | What to do | Why you do it |
|---|---|---|
| Gates | Use large gates | Reduces friction and heat damage. |
| Venting | Add deep vents at the end of flow | Stops trapped air and burn marks. |
| Mold Temp | Keep it warm (20°C – 50°C) | Helps material flow and stick to hard plastics. |
| Ejection | Use large ejector pins | Stops the soft part from getting poked or stretched. |
Follow these rules, and your TPE parts will come out looking great every time.
Conclusion
Medical-grade TPE is a wonderful material for healthcare devices. It is very safe, easy to mold, and does not use bad chemicals. By understanding its strict rules, comparing it to old materials, and designing your mold carefully, you can make amazing medical products. I hope this guide helps you design better and faster parts for your next big project.
