Automotive TPU overmolding should be treated as an interface-validation problem, not simply as molding a soft layer over a hard part. Adhesion depends on the exact TPU and substrate grades, surface condition, time and temperature history, geometry, contamination, process window and the loads and environment the assembly will face.
This is an engineering method, not a customer case study. Any scenario is illustrative and contains no claimed production result.
Define What the Overmold Must Do
Separate grip, sealing, vibration isolation, impact protection, appearance and retention requirements. Define temperature, fluids, humidity, UV, cleaning agents, compression, peel direction, fatigue, odor or VOC expectations and assembly loads. Automotive programs may also impose OEM-specific flammability, aging, chemical and appearance requirements.
Select an Exact Material Pair
“TPU over ABS” or “TPU over PC” is not enough. Adhesion can differ by grade, additive and color package. Obtain compatibility and processing guidance from the material suppliers, then verify it on representative geometry. Mechanical retention may be required when chemical adhesion is uncertain or when the consequence of separation is high.
| Interface factor | Failure risk | Design or validation response |
|---|---|---|
| Grade compatibility | Low initial bond or aging loss | Use supplier evidence and part-specific testing |
| Substrate contamination | Local delamination | Control handling, storage, release agents and surface condition |
| Interface edge | Peel initiation or flash | Review shutoff, edge thickness and load direction |
| Substrate temperature | Insufficient fusion or substrate distortion | Define transfer time and thermal window |
| Material moisture | Splay, degradation or variable bond | Follow grade-specific drying and exposure limits |

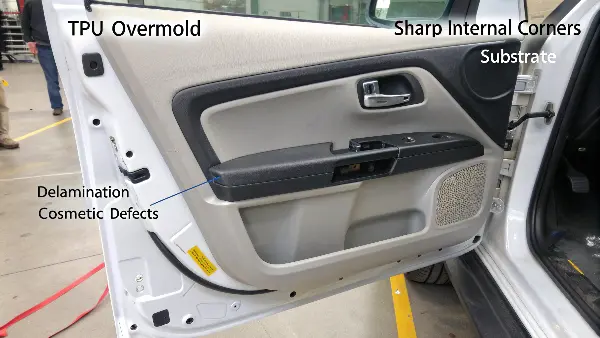

Design Mechanical Retention Intentionally
Through-holes, slots, undercuts, ribs and wraparound features can create mechanical interlock. They also change flow, air evacuation, stress and tool complexity. Avoid thin isolated TPU edges that invite peeling. Put shutoffs where they can be manufactured, protected and maintained without damaging the cosmetic interface.
Plan the Molding Sequence
Insert molding, transfer between tools, rotary two-shot molding and robotic loading create different thermal and contamination histories. Define how the substrate is located, supported and protected from deformation. Review cavity pressure, venting, gate position and fill direction so the TPU does not displace the insert or trap air along the bond line.
CKMOLD’s insert molding and overmolding page explains the manufacturing routes; the correct route depends on volume, interface risk and automation needs.
Control Dimensions Across Two Materials
The rigid substrate and TPU shrink differently and respond differently to temperature and load. Establish datums on stable features, define free-state versus fixtured measurement, and avoid using compressible TPU as the only locating surface. Check how the second shot changes substrate dimensions and residual stress.
Illustrative Validation Scenario
Hypothetical example: a rigid interior control requires a TPU perimeter for rattle control. The team first defines compression and peel loads, selects a documented material pair, and molds interface plaques. The part design adds protected mechanical interlocks at high-peel corners. Trials record substrate age, transfer time, moisture condition and cavity. Parts are evaluated after the environmental and chemical exposures specified by the program. The scenario shows the evidence path; it does not claim zero failures or a particular scrap rate.
Build a Validation Matrix
- Initial adhesion and mechanical retention in relevant load directions
- Thermal aging and cycling appropriate to the application
- Humidity, fluids, cleaners and UV where applicable
- Compression set, wear or fatigue for the component function
- Appearance, flash, short fill, splay and interface contamination
- Dimensions and function by cavity and production condition
Production Controls to Preserve the Interface
Control exact material lots, drying and exposure, substrate cleanliness, storage time, molding sequence, process settings, cavity identity and change notification. A visually acceptable bead does not prove adhesion. Use the agreed functional or destructive test at a frequency justified by the risk plan.
TPU Overmolding Questions
Does TPU bond to every engineering plastic?
No. Compatibility is grade-specific and process-dependent. Use supplier guidance as a screening tool and validate the final interface.
Is chemical adhesion enough?
It may be for some designs, but mechanical retention can add robustness where geometry and function allow. It is not a substitute for validating contamination and aging.
When is a two-shot mold justified?
It may suit higher volumes and automated alignment, but tooling complexity, cycle, material pairing and maintenance should be compared with insert-transfer approaches.
For an automotive interface review, provide the exact material grades, CAD, interface loads, environmental specification and annual volume through CKMOLD’s project form. Use mold testing and validation to structure trial evidence.
