Struggling with inconsistent surface finishes on your plastic parts? This often points back to the mold itself, causing costly defects, production delays, and unhappy customers. You know a consistent finish is crucial for your product’s appeal and function, but achieving it consistently feels like a black box. The frustration of dealing with suppliers who cut corners on the core and cavity can put your entire project at risk.
A superior surface finish is designed into the core and cavity before polishing begins. Parting-line placement, steel, gate location, weld lines, draft, venting, cooling and release all affect the surface that the customer sees. The finish specification should therefore be reviewed as a product and process requirement, not handed to the polishing team as an isolated task.
Related CKMOLD resources: mold design services, DFM analysis, mold testing and validation.
A specified surface begins with the product requirement and is built through parting-line and gate placement, exact steel grade and condition, grade-specific heat treatment, controlled machining or EDM, polishing or texturing, and molded-part approval. No single steel or process sequence guarantees a mirror or consistent molded finish.
The sourcing risk is not solved by a supplier’s years of experience alone. Ask for the component steel map, heat-treatment and machining records, surface specification, protected geometry, intermediate inspection and molded acceptance method that apply to this tool.
How Should Core and Cavity Materials Be Selected for Surface Control?
Material selection is component-specific. Resin wear/corrosion, polish or texture, section size, thermal duty, load, repair, machining route, heat treatment, planned life and maintenance determine the requirement. Broad labels such as P20, 718H, NAK80 or S136 do not establish universal equivalence or a fixed finish.
For every forming component, record the producer, exact grade, supply condition, hardness or heat treatment, certificate and permitted substitution. Daido’s NAK80 information and Uddeholm’s Stavax ESR heat-treatment datasheet illustrate why guidance belongs to a named producer grade and condition.
| Surface demand | Material/process question | Acceptance evidence |
|---|---|---|
| high gloss or optical | cleanliness, hardness uniformity, heat treatment and weld limits | grade certificate, process record and molded optical/appearance result |
| texture | etch/laser suitability, hardness and repair behavior | texture supplier approval and molded transition check |
| abrasive/corrosive resin | local wear/corrosion at cavity, gate, vent and insert | component steel map and maintenance criteria |
Heat Treatment Must Follow the Exact Grade and Component

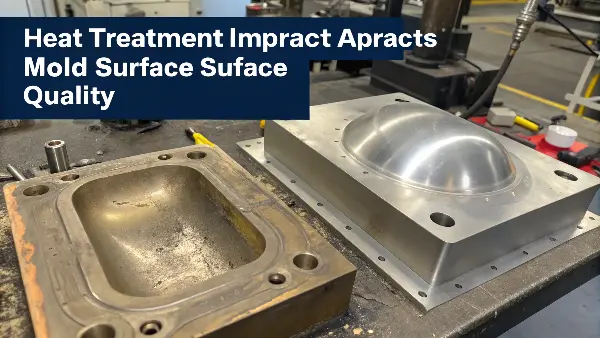

Heat treatment can change hardness, dimensions, residual stress, corrosion behavior and polishability, but there is no universal temperature schedule or furnace route for all mold steels. Heat treatment must follow the exact steel producer’s current datasheet and an agreed component process.
For example, Uddeholm’s Stavax ESR datasheet (revision dated August 13, 2024) provides grade-specific preheating, austenitizing, quenching and tempering guidance. That guidance should not be copied to another “equivalent” designation without confirmation from its producer.
The purchase record should cover starting condition, rough-machining allowance, stress relief where required, protected surfaces, furnace atmosphere, quench route, tempering, hardness targets, dimensional checks and subsequent EDM/polish preparation. Vacuum treatment can be useful, but it is not inherently essential for every grade or component.
Machining and EDM Must Leave a Finishable Surface

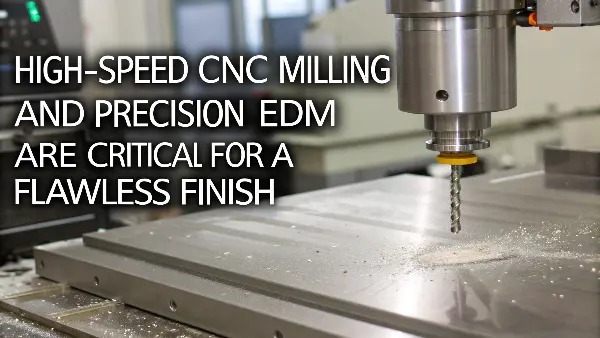

CNC, high-speed machining, grinding and EDM are selected from geometry, access, steel condition, tolerance and required surface. Feed, speed, tool runout, electrode strategy and stock allowance must be proven for the actual setup; fixed generic values do not establish a consistent finish.
Inspect and remove recast, heat-affected or mechanically damaged layers before final finishing. Keep functional edges, shutoffs and texture boundaries within the drawing while removing tool marks. Use staged measurements so a surface correction does not create a dimensional or fit error.
Polishing Is the Last Controlled Geometry Operation

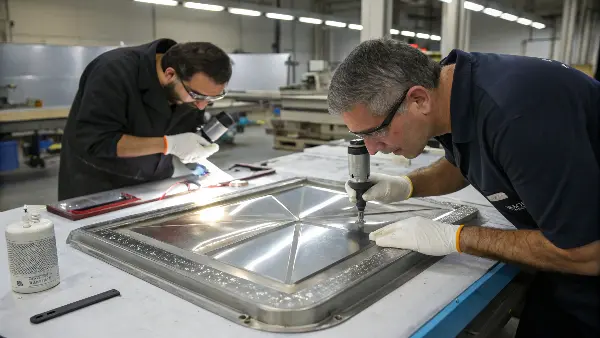

Polishing cannot repair poor steel, heat treatment, deep EDM damage or incorrect part geometry without risk. Work from the specified starting condition through justified abrasive steps, change direction to reveal previous scratches, clean completely between grades and protect edges and shutoffs.
Uddeholm’s polishing guide details the effects of cleanliness, pressure, direction, abrasive sequence and steel condition. The DME finish guide provides reference preparation methods and approximate Ra under its stated conditions. Approve the molded surface; do not turn either guide into a universal optical guarantee.
Place the Parting Line Away From Critical Appearance
The parting line creates a real interface that can show mismatch, flash or witness. Positioning it in a hidden or functional zone can protect visible surfaces, but the change must still allow draft, ejection, tool strength and maintenance.
Choose Steel and Finish for the Resin and Volume
Steel polishability, hardness, corrosion resistance and filler wear affect the ability to maintain a surface. Clear or high-gloss parts need a different steel and inspection discipline from a textured industrial housing. Material and volume should be part of the surface decision.
Gate and Venting Shape the Visible Result
Gate marks, weld lines, trapped gas, burn marks and flow hesitation can appear even on a reliably polished cavity. Gate direction, venting, overflow or vacuum strategy and filling sequence should be reviewed against visible zones before steel is finished.
Draft and Release Protect the Surface
Insufficient draft or rough texture can drag the part and create scuffs, whitening or gloss change. Ejector placement, lifter motion, polish direction and release force should support the texture or gloss requirement. A surface that cannot release safely will not remain superior in production.
Approve With a Defined Visual and Molded Standard
Use a master sample, texture or gloss specification, controlled lighting, viewing angle and dimensional checks. Mold trials should confirm that the surface remains acceptable through the process window, not only at one ideal setting.
How Core and Cavity Design Achieves a Consistent Surface Finish: Buyer Review Checklist
- Place parting lines, gates and ejectors with visible and functional surface zones in mind.
- Match steel, polishability, hardness and corrosion strategy to resin, finish and volume.
- Review weld lines, vents, gas, flow hesitation and gate marks before final surface work.
- Provide draft, polish direction and ejection support for the intended texture or gloss.
- Define visual standard, lighting, gloss or texture reference and trial approval criteria.
FAQ
Does a high-gloss cavity support a high-gloss part?
No. Resin, flow marks, weld lines, gas, cooling, release and processing conditions can change the molded appearance.
Why is draft important for a textured surface?
Texture increases release resistance, so insufficient draft can scuff, drag or change the visible surface during ejection.
Conclusion
A consistent surface begins with product requirements and continues through parting/gating, exact steel selection, grade-specific heat treatment, controlled machining/EDM, disciplined polishing and molded-part approval. Preserve the records needed to reproduce or repair the surface without losing geometry.
