How Can We Use Weight Reduction Techniques in Plastic Container Manufacturing?

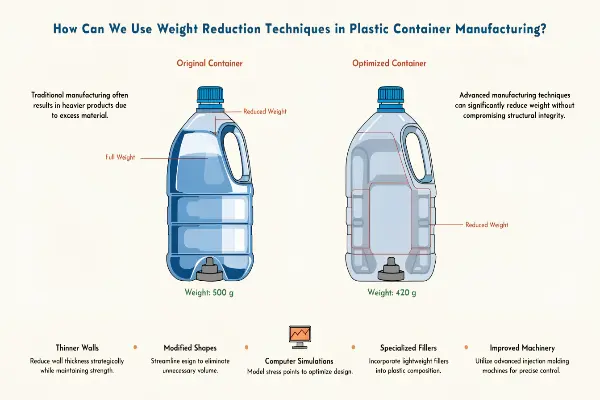

Reduce a plastic container’s weight by removing unnecessary material or selecting a lower-density structure while meeting its specified function. Compare geometry, material and process changes against the actual contents, load, temperature, stacking duration, drop conditions, closure and barrier requirements. Lower mass, lower resin consumption and lower cost are different outcomes; verify each rather than assuming all improve together.

Reduce Material Where the Container Can Tolerate It

Begin with the load path and the existing wall distribution. A thinner wall can lower mass but also change filling, stiffness, local stress, ejection and dimensional stability. Ribs or curvature may redistribute stiffness; they add material and can introduce sink, stress concentration or manufacturing constraints, so they are not mandatory companions to every wall reduction.

Area Candidate change Verification needed
Walls and transitions Remove excess thickness and blend abrupt transitions Filling, buckling, drop behavior, dimensional variation and release
Base and stacking interface Redistribute material around the actual contact/load path Stability, creep under the specified stack load and base deformation
Neck, rim and closure Review excess sections without losing functional features Closure fit, seal or leak requirements, application/removal loads
Handles and local supports Revise geometry or localized reinforcement Load transfer, weld-line location, repeated use where required and stress concentration

Keep usable volume and the required interfaces in the comparison. A redesign that weighs less but leaks, nests incorrectly or needs extra packaging has not met the same brief. For buckets, the bucket mold optimization and accepted-part cost example connects these checks to production economics.

Calculate Mass From Density and Volume

For a solid, uniform material, mass equals density multiplied by material volume: m = ρV. Mineral fillers such as talc do not automatically make a polymer lighter. Their stiffness contribution may permit a geometry change, but the compound’s density, impact behavior, shrinkage and other requirements must be evaluated together.

LyondellBasell lists POLYFORT FPP 20 T NATURAL, a 20% talc-filled polypropylene, with a typical density of 1.06 g/cm³. This illustrates why an exact grade’s data matter; it is not a recommendation or approval for a particular container.

Illustrative calculation, not a customer result: assume an original material volume of 100 cm³ at 0.90 g/cm³, giving 90 g. A candidate at 90 cm³ and 1.06 g/cm³ weighs 95.4 g. Despite 10% less volume, its mass is 6% higher. The assumed densities and volumes are a comparison exercise, not a qualified replacement specification.

Material change What it can change What it does not establish
Filled compound Density, stiffness, impact, shrinkage and processing Lower finished-part mass or acceptable drop performance
Recycled-content grade Virgin-material demand and grade-specific properties Lower density, lower cost or suitability for the intended use
Biobased or compostable material Feedstock or a specified end-of-life route Low mass, automatic recyclability or degradation in any environment

The material data-sheet review helps compare properties under their test conditions. Obtain the selected grade’s processing and safety guidance, then qualify the finished product. EPA’s recycling and composting guidance distinguishes biobased feedstock from biodegradability and explains that composting depends on specified conditions and facility acceptance. Do not label a material “green” solely because it is lighter or made from a different feedstock.

Separate Part Lightweighting From Production Waste

Stable injection molding can reduce variation, rejects and unnecessary material losses. It does not create zero waste or make a fixed cavity volume disappear. Record accepted-part mass separately from runners, start-up/purge loss, rejects and recovered material.

Trexel’s MuCell process description explains the use of supercritical nitrogen or carbon dioxide to create a microcellular structure. Such a structure can reduce apparent density, but achievable mass and performance depend on the part, material, cell structure and process. Evaluate surface quality, dimensions, load behavior, leakage and barrier requirements where relevant; do not apply a general percentage saving or assume that cells have no functional cost.

Route Potential contribution Decision boundary
Process stabilization Reduce variation and rejected output Demonstrate the change with traceable product and process data
Microcellular molding Lower apparent density where a cellular structure is acceptable Check equipment/tool compatibility and the required product properties
Blow-molded wall distribution Place material where the container needs it Review the specific blow-molding route and preform/parison design; cooling alone is not a wall-distribution strategy
Co-injection or layered structure Allocate materials to different functions Verify layer distribution, bonding, performance and end-of-life compatibility

Changing the process may require a different tool and qualification plan. A lighter core or multiple materials are not automatically suitable for recycling; review the actual combination and collection route. The single-material container design review addresses that separate decision.

Use Analysis to Guide Physical Validation

Structural and flow analysis can screen candidates before tool modification. State the material model, temperature, loading duration, contact conditions, geometry and boundary assumptions. Top-load, creep, drop and pressure behavior are different questions; choose the analyses and physical tests that match the actual container use.

A predicted failure thickness is not a safe release specification. Include agreed design margins and expected manufacturing variation, then compare predictions with representative physical samples. Keep dimensions, material lot, conditioning, cavity and process settings traceable so a successful test is meaningful for the intended production.

Trimming may be an appropriate secondary operation for a particular process, but it is not a universal lightweighting method. Investigate flash or excess material at its source first. If a trimming operation is required, select and qualify it for the material, edge quality, dimensional requirements and site safety controls; do not assume a laser always gives the lightest or best part.

Release a Lighter Container Against the Same Requirements

Thinning, reinforcing, changing resin and foaming can introduce different compromises. Use the simplest combination that meets the brief; there is no rule requiring both fillers and ribs. Evaluate the following evidence before approving the change.

Requirement Evidence to agree
Contents and environment Contents, chemical exposure, filling/service temperatures and required barrier or leak behavior
Handling and logistics Drop orientations, filled mass, handle loads, stack duration and contact conditions
Geometry and function Controlled CAD/drawing revision, dimensions, closure interfaces and usable volume
Production Selected grade, process window, cavity-specific results, accepted mass and reject rate
Economics and end of life Tool/change cost, resin, cycle, secondary work, packaging, recovery limits and accepted-output basis

Compare measured cost per accepted container, not resin mass alone. Freight savings depend on how shipments are charged and packed; lower part mass does not necessarily reduce the invoice. Ask for a DFM review using the current drawing, exact material, volume forecast, use conditions and agreed acceptance tests. Record which assumptions remain open before committing to steel or a material change.

Conclusion

A successful lightweighting change removes mass that the specified function does not need. Check density as well as volume, separate product mass from production losses, and validate the revised container physically under its intended conditions. Release the change only when function, manufacturability and the agreed cost comparison are supported by evidence.
